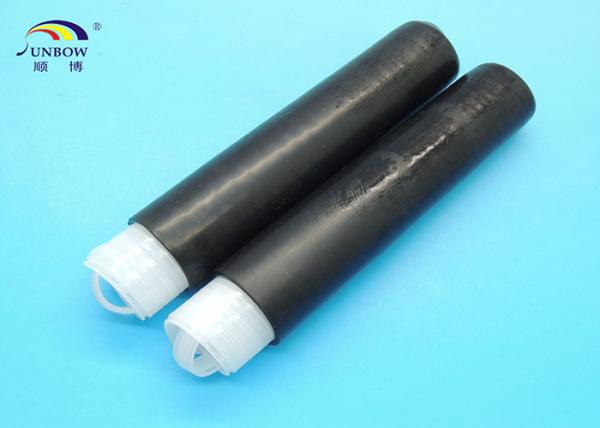

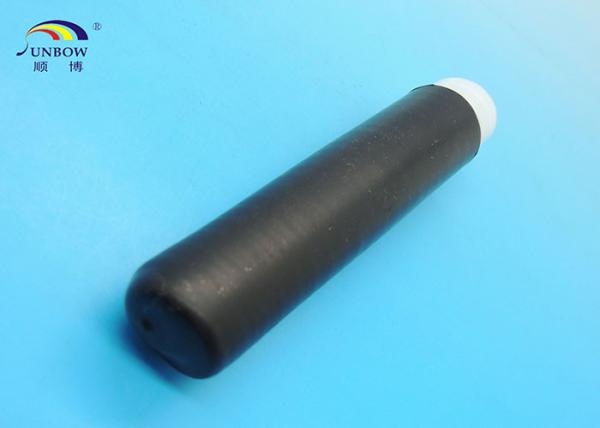

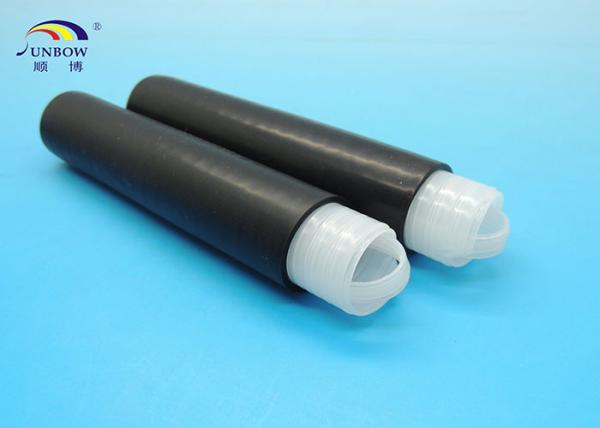

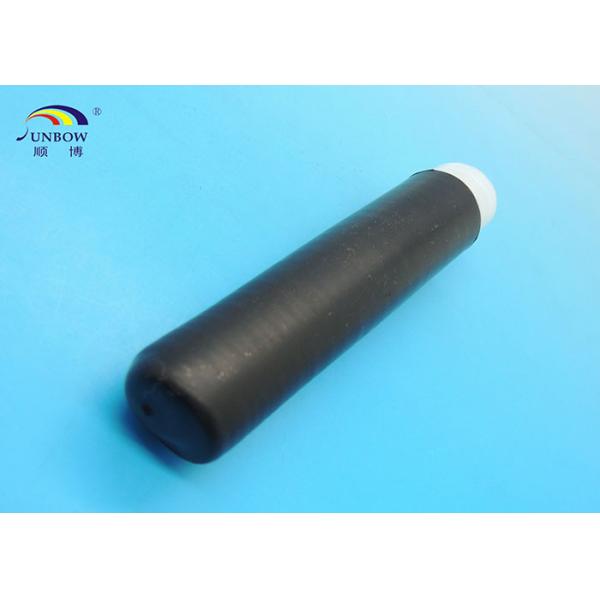

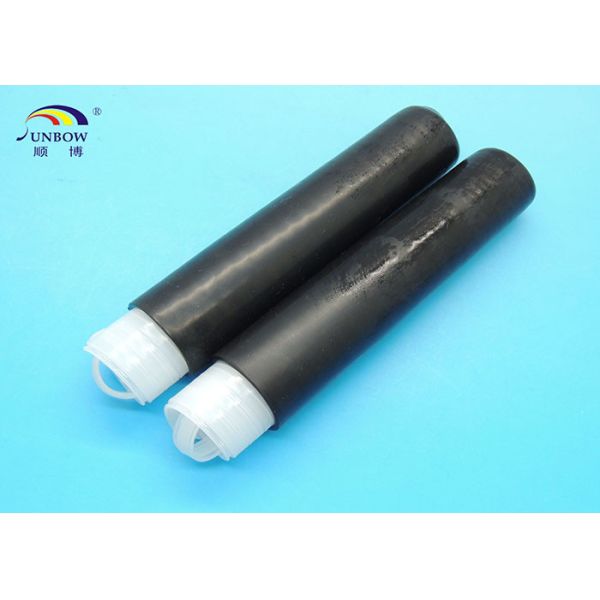

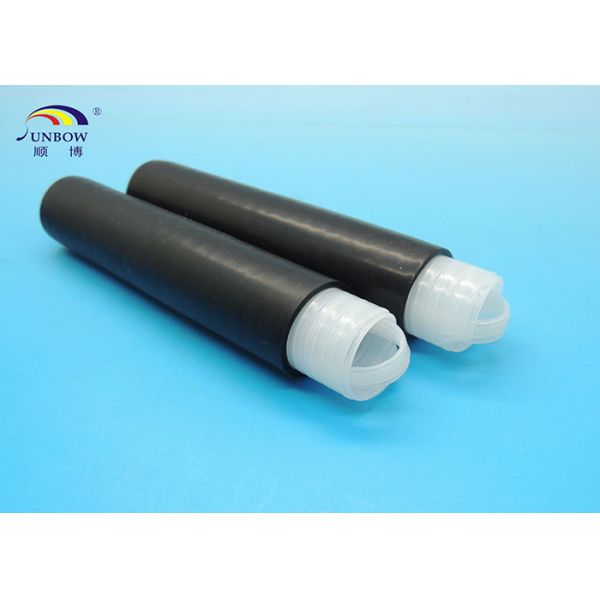

Industrail Cable Fittings Cold Shrink End Caps 20mm - 80mm Waterproof Cable End Sealing
Industrail Cable Fittings Cold Shrink End Caps 20mm - 80mm Waterproof Cable End Sealing
Industrail Cable Fittings Cold Shrink End Caps 20mm - 80mm Waterproof Cable End Sealing
Industrail Cable Fittings Cold Shrink End Caps 20mm - 80mm Waterproof Cable End Sealing
Industrail Cable Fittings Cold Shrink End Caps 20mm - 80mm Waterproof Cable End Sealing
Industrail Cable Fittings Cold Shrink End Caps 20mm - 80mm Waterproof Cable End Sealing
Industrail Cable Fittings Cold Shrink End Caps 20mm - 80mm Waterproof Cable End Sealing
Industrail Cable Fittings Cold Shrink End Caps 20mm - 80mm Waterproof Cable End Sealing
Specifications
Brand Name :
SUNBOW
Model Number :
SB-WCSEC
Certification :
REACH, ROHS
Place of Origin :
Shenzhen, China
MOQ :
500 pcs each size each color
Packaging Details :
standard packing
Product name :
Cold Shrink End Caps
Color :
Default black
Size :
20mm-80mm
Description

Cable accessories - Cold Shrink End Caps with SUNBOW Model number SB-WCSEC

Model Number: SB-WCSEC

Description

Cold shrink end caps are made of EPDM rubber, can meet a variety of

configuration requirements. Offering sealing protection over multi-core cable ends. Used to seal cable

during installation or storage, protecting cable ends.

Usage

Cold Shrink End Caps protect cables, pipes and other cylindrical objects from exposure to moisture,

contamination, corrosion, ozone, ultra-violet radiation, physical contact and other environmental hazards.

configuration requirements. Offering sealing protection over multi-core cable ends. Used to seal cable

during installation or storage, protecting cable ends.

Characteristics

l Simple and fast installation, no tools required, no training required for installation.

l Accommodating size ranges from 13mm – 70mm.

l Sealing tight, high rebound even after prolonged years of aging and exposure.

l No mastic or tape required. No torches or heat required.

l Resists fungus, acids, alkali and ozone, Water-resistance.

l Easily removed.

Dimension

ID as Supplied

(Min) (mm)

ID after Recovered

(Max) /mm

Wall Thickness after Recovered

(±0.1mm)

Application Range

(mm)

Length

(mm)

Ø20

12

2.5

Ø13- Ø16

70±5

Ø28

16

2.5

Ø18- Ø24

70±5

Ø47

23

2.6

Ø25- Ø38

70±5

Ø80

46

2.6

Ø48- Ø70

70±5

Technical data

Property

Test Method

Standard Value

300% Modulus

ASTM D-412-75

4.2MPa

Ultimate Tensile

ASTM D-412-75

10.05MPa

Ultimate Elongation

ASTM D-412-75

600%

Tear strength

ASTM D-624C-73

28.3KN/m

Fungus Resistance

ASTM G-21

28 days exposure No Growth

Moisture Absorption 7 days@ 90ºC in H2O

3.0% wt. Gain

Industrail Cable Fittings Cold Shrink End Caps 20mm - 80mm Waterproof Cable End SealingIndustrail Cable Fittings Cold Shrink End Caps 20mm - 80mm Waterproof Cable End SealingIndustrail Cable Fittings Cold Shrink End Caps 20mm - 80mm Waterproof Cable End Sealing
