Black Polyolefin Heat Shrink End Cap Cable Accessories
Black Polyolefin Heat Shrink End Cap Cable Accessories
Black Polyolefin Heat Shrink End Cap Cable Accessories
Black Polyolefin Heat Shrink End Cap Cable Accessories
Black Polyolefin Heat Shrink End Cap Cable Accessories
Black Polyolefin Heat Shrink End Cap Cable Accessories
Black Polyolefin Heat Shrink End Cap Cable Accessories
Black Polyolefin Heat Shrink End Cap Cable Accessories
Specifications
Brand Name :
SUNBOW
Model Number :
SB-WRSFM
Certification :
UL E360625
Place of Origin :
Shenzhen, China
MOQ :
100 pcs each size each color
Price :
USD0.07-13.4 per PCS
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
100000000000000PCS per month
Delivery Time :
5~10 days upon order quantity
Packaging Details :
standard carton packing
Product name :
Black Polyolefin Heat Shrink End Cap Cable Accessories
Color :
default color black
Size :
11mm - 250mm
ul :
E360625
Material :
polyolefin and glue inside
Shrink Ratio :
2:1
Shrink Temp :
110~130 C
Description

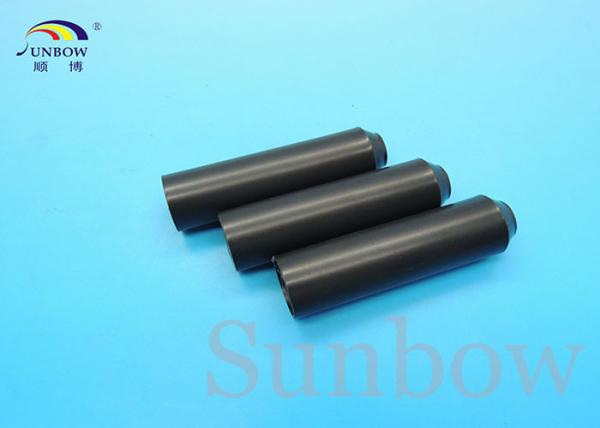

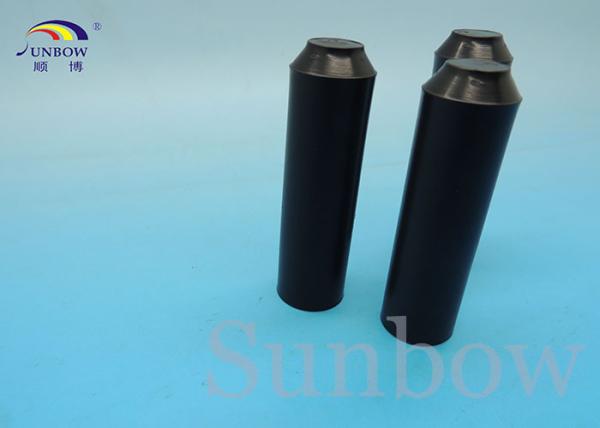

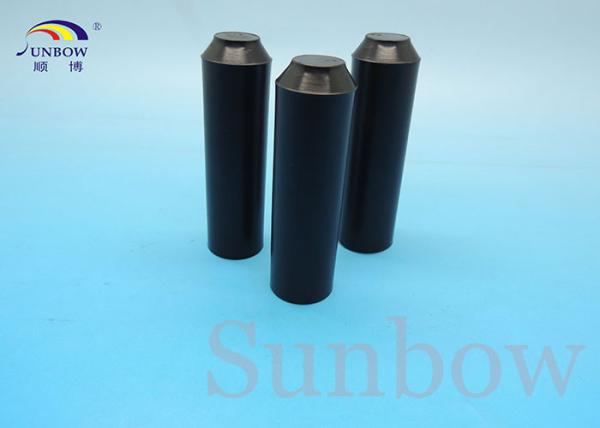

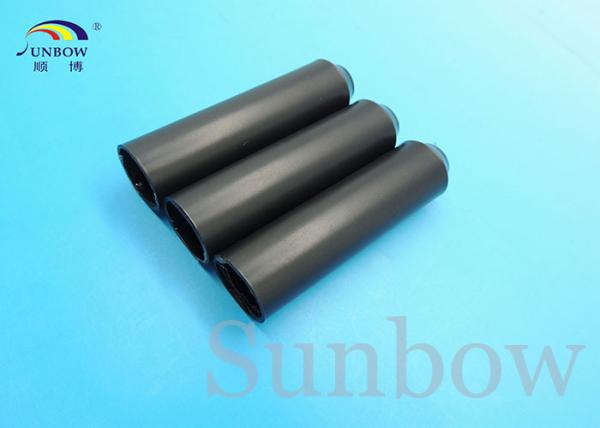

Black Polyolefin Heat Shrink End Cap Cable Accessories

Adhesive lined heat shrinkable polyolefin cable caps used to seal the ends of plastic, rubber and paper insulated cables from moisture, dirt and corrosion.

Cable caps are internally coated with a hot-melt adhesive.

Dimension

Size

Size after recovery(mm)

Size as supplied (mm)

Cable sizes(mm)

Size

Inner Diameter

Wall thickness

Inner Diameter

Wall thickness

length

Outer Diameter

Φ 11

≤6.5

1.1±0.1

≥11

0.7±0.2

≥22

Φ6-9

Φ 16

≤8.0

2.5±0.1

≥16

1.2±0.2

≥70

Φ9-14

Φ 20

≤8.0

2.5±0.1

≥20

1.2±0.2

≥70

Φ9-17

Φ 25

≤11

2.5±0.1

≥25

1.2±0.2

≥80

Φ12-22

Φ 32

≤17

2.6±0.1

≥32

1.5±0.2

≥90

Φ17-27

Φ 40

≤15

2.8±0.1

≥40

1.5±0.2

≥90

Φ20-35

Φ 55

≤25

2.8±0.1

≥55

1.5±0.2

≥125

Φ28-45

Φ 75

≤30

3.2±0.1

≥75

1.8±0.2

≥145

Φ40-65

Φ 100

≤42

3.5±0.1

≥100

1.8±0.2

≥140

Φ50-90

Φ 120

≤59

3.5±0.1

≥120

1.8±0.2

≥155

Φ70-110

Φ 140

≤63

4.0±0.1

≥140

2.0±0.2

≥180

Φ90-130

Φ 250

≤94

4.0±0.1

≥250

2.0±0.2

≥270

Φ120-240

Technical data

Property

Test Method

Standard Value

Operating temperature

IEC 216

-45ºC to+105ºC

Tensile strength

ASTM-D 2671

≥13MPa

Elongation at break

ASTM-D 2671

≥300%

Tensile strength after aging

ASTM-D-2671/120ºC,168hrs

≥10MPa

Elongation at break after aging

ASTM-D-2671/120ºC,168hrs

≥240%

Dielectric strength

IEC 243

≥15kV/mm

Volume resistance

ASTM-D-2303

≥1×1013Ω.cm

Dielectric constant

IEC 250

3.0

Radial shrinkage

-

≥50%

Eccentricity

ASTM-D-2671

≤35%

Low Temperature Flexibility

ASTM-D-2671

-40ºC, 4hrs, no cracking

Minimum shrink temperature

-

90ºC

Minimum fully recovered

temperature

-

130ºC

Black Polyolefin Heat Shrink End Cap Cable Accessories

Black Polyolefin Heat Shrink End Cap Cable Accessories
