Heat Shrink Terminations and Joints Cable Spare Parts for XLPE and PILC Cables
Heat Shrink Terminations and Joints Cable Spare Parts for XLPE and PILC Cables
Heat Shrink Terminations and Joints Cable Spare Parts for XLPE and PILC Cables
Heat Shrink Terminations and Joints Cable Spare Parts for XLPE and PILC Cables
Heat Shrink Terminations and Joints Cable Spare Parts for XLPE and PILC Cables
Heat Shrink Terminations and Joints Cable Spare Parts for XLPE and PILC Cables
Heat Shrink Terminations and Joints Cable Spare Parts for XLPE and PILC Cables
Heat Shrink Terminations and Joints Cable Spare Parts for XLPE and PILC Cables
Specifications
Brand Name :
SUNBOW
Model Number :
Heat Shrink Terminations and Joints
Place of Origin :
Shenzhen, China
MOQ :
200 sets
Price :
EXW, FOB Shenzhen, CNF, CIF
Payment Terms :
T/T, LC, WU, Paypal
Supply Ability :
9,000,000meters/month
Delivery Time :
3~7 working days
Packaging Details :
Carton box in rolls
Certification :
UL
Product name :
Heat Shrink Terminations and Joints
Voltage :
1KV, 10KV,35KV
Characteristics :
High mechanical strength, shrink swiftly, no cracks, stability
Cores :
1 core and 3 cores
Classification :
Indoor terminations and joints; outdoor terminations and joints
Application :
XLPE cables and PILC cables
Description

Heat Shrink Terminations and Joints Cable Accessories for XLPE and PILC Cables

Description

  • Heat shrink terminations and straight joints have 3 kinds of voltage: 1KV, 10KV, 35KV and they are widely used for the voltages separately under 1KV, 8.7~15KV and 25~35KV.
  • Heat shrink terminations and straight joints can be used for 1 core, 2 cores, 3 cores, 4 cores and 5 cores.
  • Heat shrink terminations and straight joints can be used for indoor, outdoor and joints.
  • Heat shrink terminations and straight joints have 2 kinds separately be used for XLPE cable and PILC cable.

Characteristics

  • High mechanical strength
  • Shrink swiftly, no cracks
  • Heat shrink accessories can thwart burn
  • Wide cross section range
  • Increased UV and weathering stability
  • Unlimited shelf life and allows reenergizing

Dimension (Heat Shrink Termination)

Voltage

Cores

Description

Cable Size

Model Number

18/30KV (36)

1

Indoor

50mm2

18/30kVRSNY-1-1

70-120mm2

18/30kVRSNY-1-2

150-240mm2

18/30kVRSNY-1-3

1

Outdoor

50mm2

18/30kVRSWY-1-1

70-120mm2

18/30kVRSWY-1-2

150-240mm2

18/30kVRSWY-1-3

12/20kV (24)

1

Indoor

35-50mm2

12/20kVRSNY-1-1

70-120mm2

12/20kVRSNY-1-2

150-240mm2

12/20kVRSNY-1-3

300mm2

12/20kVRSNY-1-4

1

Outdoor

35-50mm2

12/20kVRSWY-1-1

70-120mm2

12/20kVRSWY-1-2

150-240mm2

12/20kVRSWY-1-3

300mm2

12/20kVRSWY-1-4

8.7/15kV(17.5)

1

Indoor

25-50mm2

8.7/15kVRSNY-1-1

70-120mm2

8.7/15kVRSNY-1-2

150-240mm2

8.7/15kVRSNY-1-3

300mm2

8.7/15kVRSNY-1-4

1

Outdoor

25-50mm2

8.7/15kVRSWY-1-1

70-120mm2

8.7/15kVRSWY-1-2

150-240mm2

8.7/15kVRSWY-1-3

300mm2

8.7/15kVRSWY-1-4

6.35/11kV(12)

1

Indoor

25-50mm2

6.35/11kVRSNY-1-1

70-120mm2

6.35/11kVRSNY-1-2

150-240mm2

6.35/11kVRSNY-1-3

300-400mm2

6.35/11kVRSNY-1-4

1

Outdoor

25-50mm2

6.35/11kVRSWY-1-1

70-120mm2

6.35/11kVRSWY-1-2

150-240mm2

6.35/11kVRSWY-1-3

300-400mm2

6.35/11kVRSWY-1-4

18/30kV (36)

3

Indoor

50mm2

18/30kVRSNY-3-1

70-120mm2

18/30kVRSNY-3-2

150-240mm2

18/30kVRSNY-3-3

3

Outdoor

50mm2

18/30kVRSWY-3-1

70-120mm2

18/30kVRSWY-3-2

150-240mm2

18/30kVRSWY-3-3

12/20kV (24)

3

Indoor

35-50mm2

12/20kVRSNY-3-1

70-120mm2

12/20kVRSNY-3-2

150-240mm2

12/20kVRSNY-3-3

300mm2

12/20kVRSNY-3-4

3

Outdoor

35-50mm2

12/20kVRSWY-3-1

70-120mm2

12/20kVRSWY-3-2

150-240mm2

12/20kVRSWY-3-3

300mm2

12/20kVRSWY-3-4

8.7/15kV (17.5)

3

Indoor

25-50mm2

8.7/15kVRSNY-3-1

70-120mm2

8.7/15kVRSNY-3-2

150-240mm2

8.7/15kVRSNY-3-3

300mm2

8.7/15kVRSNY-3-4

3

Outdoor

25-50mm2

8.7/15kVRSWY-3-1

70-120mm2

8.7/15kVRSWY-3-2

150-240mm2

8.7/15kVRSWY-3-3

300mm2

8.7/15kVRSWY-3-4

6.35/11kV (12)

3

Indoor

25-50mm2

6.35/11kVRSNY-3-1

70-120mm2

6.35/11kVRSNY-3-2

150-240mm2

6.35/11kVRSNY-3-3

300-400mm2

6.35/11kVRSNY-3-4

3

Outdoor

25-50mm2

6.35/11kVRSWY-3-1

70-120mm2

6.35/11kVRSWY-3-2

150-240mm2

6.35/11kVRSWY-3-3

300-400mm2

6.35/11kVRSWY-3-4
Heat Shrink Terminations and Joints Cable Spare Parts for XLPE and PILC Cables

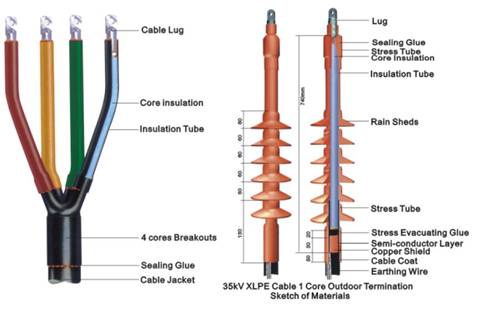

1.conductor 2.inner semi-conductive layer 3. XLPE insulation 4.outer semi-conductive layer

5.copper shielded tape 6. connector 7.stress control tube 8. inner insulated tube 9. outer insulated tube

10.shielded tube 11.semi-conductive tape 12. filling glue 13.stress dispersed glue

14. sealing glue 15.copper shielded net 16. copper weaved tape 17. Bundling wire

Dimension (Heat Shrink Joints )

Voltage

Cores

Cable Size

Model Number

18/30kV (36)

1

50mm2

18/30kVRSJY-1-1

70-120mm2

18/30kVRSJY-1-2

150-240mm2

18/30kVRSJY-1-3

3

50mm2

18/30kVRSJY-3-1

70-120mm2

18/30kVRSJY-3-2

150-240mm2

18/30kVRSJY-3-3

12/20kV (24)

1

35-50mm2

12/20kVRSJY-1-1

70-120mm2

12/20kVRSJY-1-2

150-240mm2

12/20kVRSJY-1-3

300mm2

12/20kVRSJY-1-4

3

35-50mm2

12/20kVRSJY-3-1

70-120mm2

12/20kVRSJY-3-2

150-240mm2

12/20kVRSJY-3-3

300mm2

12/20kVRSJY-3-4

8.7/15kV (17.5)

1

25-50mm2

8.7/15kVRSJY-1-1

70-120mm2

8.7/15kVRSJY-1-2

150-240mm2

8.7/15kVRSJY-1-3

300mm2

8.7/15kVRSJY-1-4

3

25-50mm2

8.7/15kVRSJY-3-1

70-120mm2

8.7/15kVRSJY-3-2

150-240mm2

8.7/15kVRSJY-3-3

300mm2

8.7/15kVRSJY-3-4

6.35/11kV (12)

1

25-50mm2

6.35/11kVRSJY-1-1

70-120mm2

6.35/11kVRSJY-1-2

150-240mm2

6.35/11kVRSJY-1-3

300-400mm2

6.35/11kVRSJY-1-4

3

25-50mm2

6.35/11kVRSJY-3-1

70-120mm2

6.35/11kVRSJY-3-2

150-240mm2

6.35/11kVRSJY-3-3

300-400mm2

6.35/11kVRSJY-3-4


Heat Shrink Terminations and Joints Cable Spare Parts for XLPE and PILC Cables

Heat Shrink Terminations and Joints Cable Spare Parts for XLPE and PILC Cables


Competitive Advantage:

  • Great production ability for over 20000 sets per month
  • Factory direct sales
  • Best price high quality product
  • Quick delivery time
  • Quick response for feedback
  • Few complaints from customers
  • More competitive price for VIP customers
  • Convenient situation near to seaport

Cold shrink products for comparison,Heat Shrink Terminations and Joints Cable Spare Parts for XLPE and PILC CablesHeat Shrink Terminations and Joints Cable Spare Parts for XLPE and PILC CablesHeat Shrink Terminations and Joints Cable Spare Parts for XLPE and PILC CablesHeat Shrink Terminations and Joints Cable Spare Parts for XLPE and PILC Cables
