Cold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector Insulation
Cold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector Insulation
Cold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector Insulation
Cold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector Insulation
Specifications
Brand Name :
SUNBOW
Model Number :
SB-WLJ
Certification :
ROHS, REACH
Place of Origin :
Shenzhen, China
MOQ :
1000pcs each size
Packaging Details :
standard carton packing
Product name :
Cold Shrink Joint Kits 1-36 kV
Color :
Grey
Usage :
Power
Core material :
liquid silicone rubber
UL :
E360625
Description

Cold Shrink Cable accessories Joint Kits 1-36 kV with Model number SB-WLJ

Model Number: SB-WLJ

Description

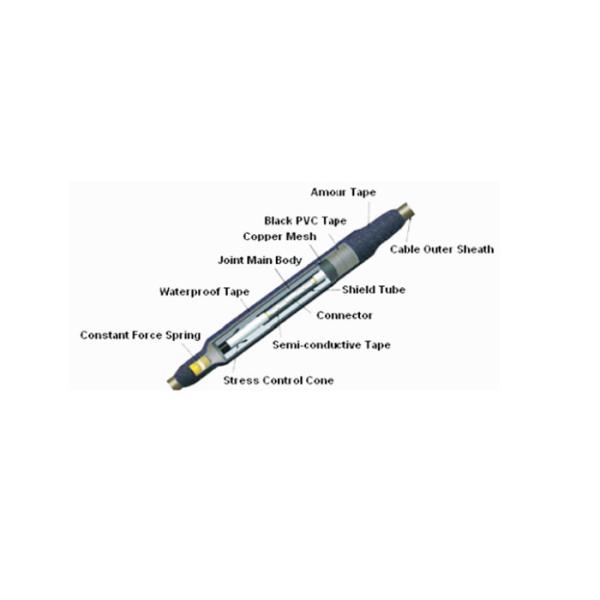

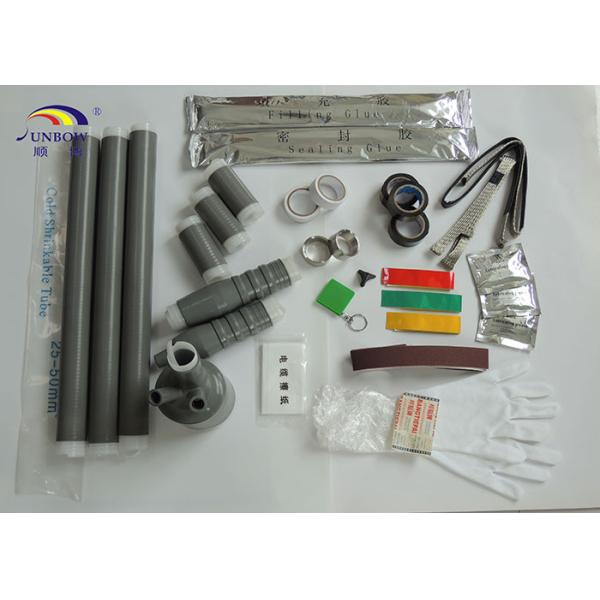

The cold shrink cable joint is suitable for 1 or 3-core XLPE cable with Al or Cu conductor (1-36kV). The joint body is made of advanced liquid silicone rubber with integrated stress control. This design vouches for the best possible interface, thereby greatly minimizing partial discharge and improving its performance during operation. The joint kit includes all the necessary components to make the installation.

Selection Table

Voltage U0/U (Um)
Cores
Cable Cross Section/mm2
Diameter over Insulation/mm
Product No.
18/30kV(36)
1, 3
35-50
70-120
150-240
300-400
500-630
22-28
26.5-33
31.5-39
35.5-43
40.5-49
18/30kVWLJ-1/1(3/1)
18/30kVWLJ-1/2(3/2)
18/30kVWLJ-1/3(3/3)
18/30kVWLJ-1/4(3/4)
18/30kVWLJ-1/5(3/5)
12/20kV(24)
1, 3
25-50
70-120
150-240
300-400
500-630
18-22.5
21-26.5
25.5-32
32.5-37
39-44.5
12/20kVWLJ-1/1(3/1)
12/20kVWLJ-1/2(3/2)
12/20kVWLJ-1/3(3/3)
12/20kVWLJ-1/4(3/4)
12/20kVWLJ-1/5(3/5)
8.7/15kV(17.5)
1, 3
25-50
70-120
150-240
300-400
500-630
16-19.5
19-27.5
23.5-30
30.5-35
37-42.3
8.7/15kVWLJ-1/1(3/1)
8.7/15kVWLJ-1/2(3/2)
8.7/15kVWLJ-1/3(3/3)
8.7/15kVWLJ-1/4(3/4)
8.7/15kVWLJ-1/5(3/5)
6/10kV(12)
1, 3
50-70
95-150
185-300
400-500
630
16-19.5
19-24.5
23.5-30
30.5-38
37-42.3
6/10kVWLJ-1/1(3/1)
6/10kVWLJ-1/2(3/2)
6/10kVWLJ-1/3(3/3)
6/10kVWLJ-1/4(3/4)
6/10kVWLJ-1/4(3/4)
0.6/1kV(1.2)
1, 3, 4, 5
25-50
70-120
150-240
300-400
—
0.6/1kVWLJ-1(3,4,5)/1
0.6/1kVWLJ-1(3,4,5)/2
0.6/1kVWLJ-1(3,4,5)/3
0.6/1kVWLJ-1(3,4,5)/4

Remark: ID* means inner diameter.
Cold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector Insulation
Other related products,
Cold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector Insulation
Cold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector Insulation

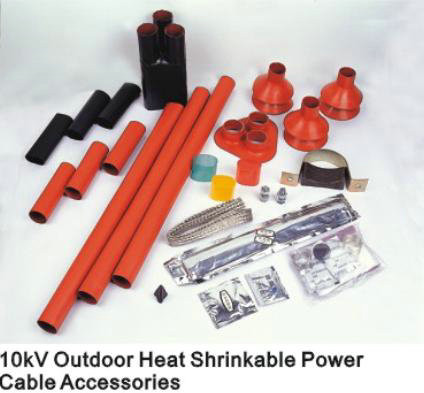

Heat shrink terminal products
Cold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector InsulationCold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector InsulationCold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector Insulation

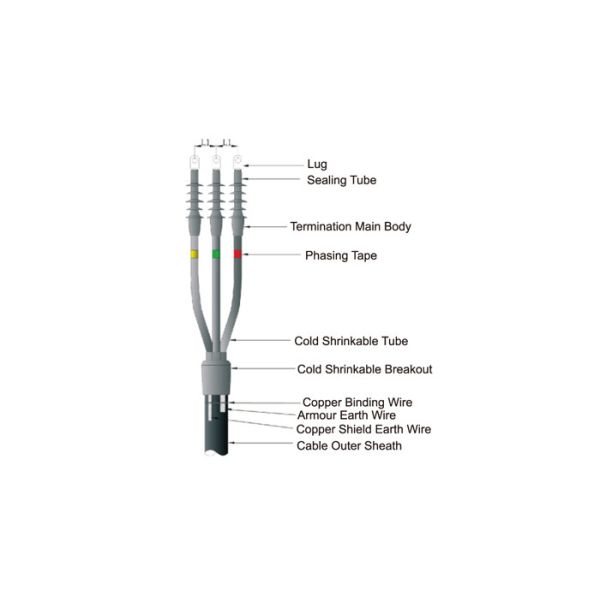

Cold shrink cable accessories are capable of shrinking without application of heat. They are manufactured in a pre-expanded condition and assembled onto a removable core. The core is removed after the tube is positioned over the cable for installation, allowing the tube to shrink and providing a moisture-tight seal.
SUNBOW cold shrink cable accessories are characterized by simple solutions with safe connection. They are manufactured with liquid silicone rubber, which has high-quality electrical insulation, excellent tracking resistance as well as high elasticity.
