3600W Hybrid Solar Inverter With 120A MPPT Controller And 110v Pure Sine Wave Output
3600W Hybrid Solar Inverter With 120A MPPT Controller And 110v Pure Sine Wave Output
3600W Hybrid Solar Inverter With 120A MPPT Controller And 110v Pure Sine Wave Output
3600W Hybrid Solar Inverter With 120A MPPT Controller And 110v Pure Sine Wave Output
3600W Hybrid Solar Inverter With 120A MPPT Controller And 110v Pure Sine Wave Output
3600W Hybrid Solar Inverter With 120A MPPT Controller And 110v Pure Sine Wave Output
3600W Hybrid Solar Inverter With 120A MPPT Controller And 110v Pure Sine Wave Output
3600W Hybrid Solar Inverter With 120A MPPT Controller And 110v Pure Sine Wave Output
3600W Hybrid Solar Inverter With 120A MPPT Controller And 110v Pure Sine Wave Output
3600W Hybrid Solar Inverter With 120A MPPT Controller And 110v Pure Sine Wave Output
Specifications
Brand Name :
shunxiang
Model Number :
FEC-36
Certification :
CE;ROSH;UN38.3;UL2743
Place of Origin :
China
MOQ :
2
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Delivery Time :
8-10work days
Packaging Details :
Cardboard box/Wooden box
Phase :
1-phase
Maximum PV Input Power :
6200W/6500W
Rated Output Power :
3600W/3600VA
Maximum Solar Charging Current :
120A/80A
Output frequency :
50Hz/60Hz,50~60Hz,0~50/60Hz,50Hz (47~51.5Hz) / 60Hz (57~61.5Hz),0-400HZ
Weight :
16.4KG,5-18KG,15KG,29kgs/pcs
Size :
354*433*147mm
Application :
Home,Industrial,all kinds of 3 phase pumps,Commercial,Home and Car Using
Output voltage :
110V/220V/230V/240V,220V/380V/480V,AC 230V/220V,12v,220V
Output type :
Single,Triple,Multiple,Dual
Output current :
Load,50/60A,13-320A,30A,30A-75A
Type :
DC/AC Inverters,DC to AC Inverters,Off-grid solar inverter,On Grid Solar System
Input voltage :
12V/24V/48V,AC 230V/220V,36V DC,48VDC or 96VDC,230VAC
Warranty :
2 Years
Output power :
1600w-5000w
Work time (h) :
24hours
Output voltage (v) :
110/120/220/230V,380/400/480V,15,220/380,12v
Load power (w) :
3000w,30,400W,0.6kw~70kw,Depends
Rated power :
3000W,0.75kw to 450kw,3000W-5000W
Color :
Blue,Red,GREY/BLUE/YELLOW,red gray green,Red & Silver
Display :
LCD,LED
Description
INTRODUCTION

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features
  • pure sine wave inverter
  • configurable input voltage range for home appliances and persona computers via LCD setting configurable battery charging current based on applications via LCD Setting
  • configurable AC/solar charger priority via LCD Setting compatible to mains voltage or generator power
  • Auto restart while AC is recovering
  • overload/ over temperature/ short circuit protection
  • smart battery charger design for optimized battery performance cold start function

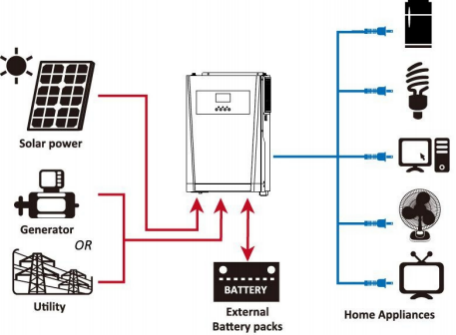

Basic system Architecture

The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:

  • Generator or utility
  • pv modules

consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.

3600W Hybrid Solar Inverter With 120A MPPT Controller And 110v Pure Sine Wave Output

3600W Hybrid Solar Inverter With 120A MPPT Controller And 110v Pure Sine Wave Output3600W Hybrid Solar Inverter With 120A MPPT Controller And 110v Pure Sine Wave Output

  1. LCD display
  2. Status indicator
  3. Charging indicator
  4. Fault indicator
  5. Function buttons
  6. Power on/off switch
  7. AC input
  8. Main output
  9. Second output
  10. Battery input
  11. PV input
  12. Antidust kit
  13. WIFl communication/RS-232 port
  14. Battery communication/RS-485 port
SPECIFICATIONS
Line Mode specifications
INVERTER MODEL3 . 6KW4 . 2KW6 . 2KW
Input voltage waveformsinusoidal (utility or generator)
Nominal Input voltage230vac
LOW Loss voltage170vac士7V (UPS);
90vac±7v (Appliances)
LOW LOSS Return voltage180vac士7V (UPS);
100vac±7v (Appliances)
High Loss voltage280vac±7v
High LOSS Return voltage270vac±7v
Max AC Input voltage300vac
Nominal Input Frequency50HZ 60HZ (Auto detection)
LOW LOSS Frequency40士1HZ
LOW LOSS Return Frequency42±1HZ
High LOSS Frequency65士1HZ
High LOSS Return Frequency63士1HZ
output short circuit protectioncircuit Breaker
Efficiency (Line Mode)>95% ( Rate d R load, battery ful charged )
Transfer Time10ms typical (ups);
20ms typical (Appliances)
output power de rating:
when AC input voltage drops to 170v, the output power will be de rated.		3600W Hybrid Solar Inverter With 120A MPPT Controller And 110v Pure Sine Wave Output
Inverter Mode specifications
INVERTER MODEL3 . 6KW4 . 2KW6 . 2KW
Rated output power3 . 6KW4 . 2KW6 . 2KW
output voltage waveformpure sine wave
output voltage Regulation230vac5%
output Frequency50HZ
peak Efficiency93%
overload protection3s@≥150% load; 5sq10 %r150% load
surge capacity2* rated power for 5 seconds
Nominal DC Input voltage24vdc48vdc
cold start voltage23.0vdc46.0vdc
LOW Dc warning voltage @ load < 50%
@ load ≥ 50%		22.0vdc
21.0vdc		44.0vdc
42.0vdc
LOW Dc warning Return voltage @ load < 50%
@ load ≥ 50%		22.5vdc
22.0vdc		45.0vdc
44.0vdc
LOW Dc cut-off voltage
@ load < 50%
@ load ≥ 50%		20.5vdc
20.0vdc		41.0vdc
40.0vdc
High DC Recovery voltage32vdc62vdc
High DC Cut-off voltage33vdc63vdc
NO Load power consumption30W35W50W
