Specifications
Certification :
CE,ROSH,FCC
Place of Origin :
China
MOQ :
200set
Payment Terms :
T/T
Supply Ability :
10000 set/month
Delivery Time :
30-35days
Packaging Details :
Carton/Wooden crate
Peak Power :
1000W
Continuous Power :
500W
Output Efficiency :
≥87%
Output Voltage :
110Vac/220Vac
Output Frequency :
50Hz/60Hz
Output Waveform :
Pure Sine Wave
Description
1000W Peak Power Inverter: Pure Sine Wave with Multi-Function Protection
Product Overview

Portable solar inverter delivering 110Vac/220Vac pure sine wave output with comprehensive protection features for reliable power conversion in industrial and mobile applications.

Technical Specifications
Peak Power 1000W
Continuous Power 500W (resistive load)
Output Efficiency ≥87%
Output Voltage 110Vac/220Vac
Output Frequency 50Hz/60Hz
Output Waveform Pure Sine Wave
Total Harmonic Distortion <3% (Linear Load)
Input Voltage 12Vdc; 24Vdc; 48Vdc; 60Vdc
AC Output Socket 1
Protection Features
  • Overload protection: ≥500W, inverter output shuts down
  • Low-voltage protection shutdown with alarm system
  • Overvoltage protection shutdown
  • Over-temperature protection: ≥70°C, inverter output shuts down
  • Short-circuit protection
  • Intelligent cooling fan with temperature control
Display & Controls
  • LCD Display showing battery voltage, charge level, AC voltage, AC frequency, error codes, and fan status
  • Screw-tightened positive and negative terminals
  • Intelligent fan control (activates at ≥33°C)
Environmental Specifications
Operating Temperature -20°C to 60°C
Operating Humidity 10% to 90% RH (non-condensing)
Storage Temperature -40°C to 70°C
Operating Altitude ≤3000 m (Derated operation above 1000 m)
Physical Specifications
Product Dimensions 215 × 104 × 60 mm
Product Weight (Net) 0.75 kg
Packaging Dimensions 245 × 150 × 75 mm
Packaging Weight (Gross) ≈1 kg

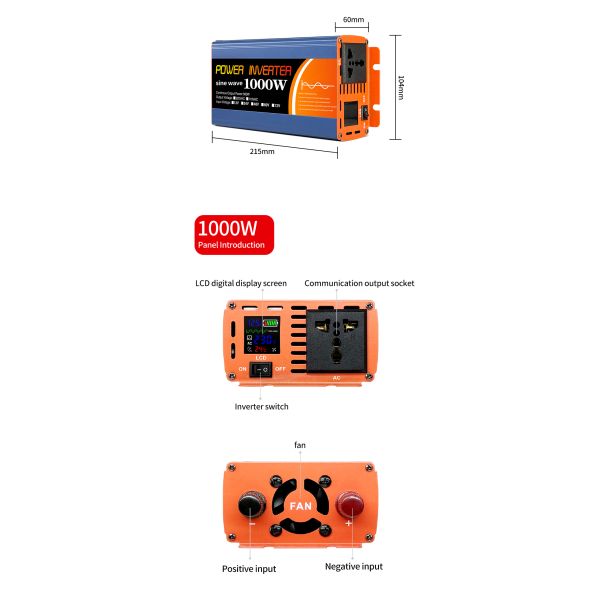

Product Images
