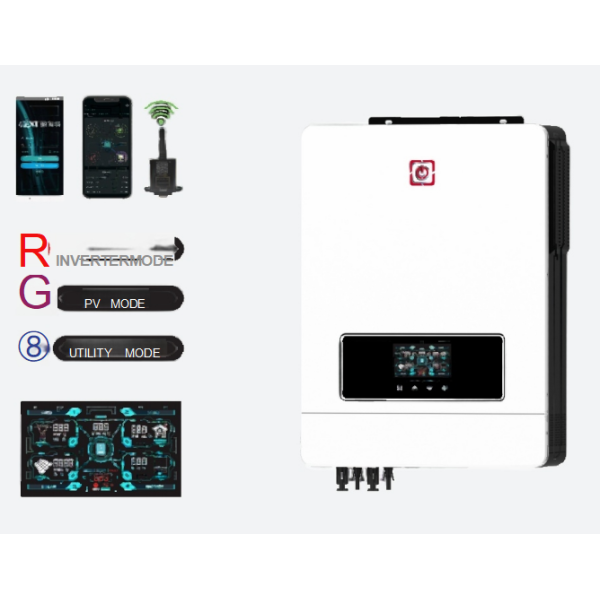

10200W Solar System Inverter 160A Solar Charge 360V DC Hybrid Solar Inverter
10200W Solar System Inverter 160A Solar Charge 360V DC Hybrid Solar Inverter
10200W Solar System Inverter 160A Solar Charge 360V DC Hybrid Solar Inverter
10200W Solar System Inverter 160A Solar Charge 360V DC Hybrid Solar Inverter
10200W Solar System Inverter 160A Solar Charge 360V DC Hybrid Solar Inverter
10200W Solar System Inverter 160A Solar Charge 360V DC Hybrid Solar Inverter
10200W Solar System Inverter 160A Solar Charge 360V DC Hybrid Solar Inverter
10200W Solar System Inverter 160A Solar Charge 360V DC Hybrid Solar Inverter
10200W Solar System Inverter 160A Solar Charge 360V DC Hybrid Solar Inverter
10200W Solar System Inverter 160A Solar Charge 360V DC Hybrid Solar Inverter
Specifications
Brand Name :
shunxiang
Model Number :
FEO-12
Certification :
CE;ROSH;UN38.3;UL2743
Place of Origin :
China
MOQ :
2
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Delivery Time :
8-10work days
Packaging Details :
Cardboard box/Wooden box
Rated output power :
10200W
Max solar charge current :
160A
PV input (DC) :
360VDC/500VDC
MPPT voltage range :
90VDC~450VDC
AC Rated output :
220/230/240VAC
Rated output current :
44.3A
Max AC Output Current :
50A
Output Waveform :
Pure Sine Wave
Product Size :
588*463*205mm
Weight :
16.2kg
Description

10200W Off-Grid Hybrid Solar Inverter | All-in-One Power Solution

This high-power hybrid inverter is designed for off-grid systems, efficiently converting 48V DC power to 220V/230V/240V AC single-phase output. Its built-in 160A MPPT solar charge controller maximizes solar energy harvesting. By integrating the functions of an inverter, solar charger, and battery charger into a single unit, it provides a simplified, efficient, and reliable all-in-one energy solution.

  • All-in-One Integration
    Combines an inverter, MPPT solar charger, and battery charger in one unit for a compact and cost-effective setup.
  • 160A MPPT Fast Charging
    The high-current MPPT controller ensures optimal solar energy conversion, significantly reducing battery charging time.
  • Universal Voltage Output
    Provides 220/230/240V AC single-phase power, compatible with a wide range of household and commercial appliances.
  • Powerful Off-Grid Center
    Forms the heart of a reliable 48V off-grid power system, ensuring your energy independence.
MODELVICTOR MAX-10.2KW
Phase1-phase
Maximum PV Input Power5400W+5400W
Rated Output Power10200W/10200VA
Maximum Solar Charging Current160A
GRID-TIE OPERATION
PVINPUT(DC)
Nominal DC Voltage/Maximum DC Voltage360/500VDC
Start-up Voltage/Initial Feeding Voltage90VDC/120VDC
MPPT Voltage Range90~450VDC
Maximum Input Current2/18A
GRID OUTPUT(AC)
Nominal Output Voltage220/230/240VAC
Output Voltage Range195~253VAC
Nominal Output Current44.3A
Power Factor>0.99
EFFICIENCY
Maximum Conversion Efficiency(DC/AC)98%
TWO LOAD OUTPUT POWER
Full Load10200W
Maximum Main Load10200W
Second Load Range2040W~7140W
Maximum Load Cut Off Voltage52VDC
Maximum Load Return Voltage54VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage120-140VAC/180VAC
Acceptable Input Voltage Range90~280VAC or 170~280VAC
Frequency Range50±1Hz/60±1Hz
Maximum AC input Current60A
PVINPUT(DC)
Nominal DC Voltage/Maximum DC Voltage360/500VDC
MPPT Voltage Range90~450VDC
Maximum Input Current2/18A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage220/230/240VAC
Output Wave FormPure sine wave
Efficiency(DC toAC)94%
BATTERY&CHARGER
Nominal DC Voltage48VDC
Maximum Solar Charging Current160A
Maximum AC Charging Current140A
Maximum Sotar+AC Charging Current160A
HYBRID OPERATION
PVINPUT(DC)
Nominal DC Voltage/Maximum DC Voltage360/500VDC
Start-up Voltage/Initial Feeding Voltage90VDC/120VDC
MPPT Voltage Range90~450VDC
Maximum Input Current2/18A
GRID OUTPUT(AC)
Nominal Output Voltage220/230/240VAC
Output Voltage Range195~253VAC
Nominal Output Current44.3A
AC INPUT
AC Start-up Voltage/Auto Restart Voltage120-140VAC/180VAC
Acceptable Input Voltage Range90-280VAC or 170-280VAC
Maximum AC Input Current60A
Maximum Charging Current140A
GENERAL
PHYSICAL
Dimension,H*W*D(mm)500*390*136
Cartoon Dimension,H*W*D(mm)588*463*205
Net Weight(kgs)14.7
Gross Weight(kgs)16.2
INTERACE
Communication PortRS232/RS485/WIFI/GPRS/LITHIUM BATTERY
ENVIRONMENT
Humidity5%to 95%Relative Humidity(Non~condensing)
Operating Temperature-10℃~50℃
STANDARD
Compliance SafetyCE
