Specifications
Brand Name :
shunxiang
Model Number :
FEC-62
Certification :
CE;ROSH;UN38.3;UL2743
Place of Origin :
China
MOQ :
2
Payment Terms :
T/T
Supply Ability :
2000pcs/momth
Delivery Time :
8-10work days
Packaging Details :
Cardboard box/Wooden box
Rated Power :
6200W
Inverter Efficiency :
50Hz/60Hz(Automatic adaptation)
Protectionfeatures :
Overload, Short Circuit, Over Temperature, Reverse Polarity
Communicationinterface :
RS485 / WiFi / Bluetooth
Coolingmethod :
Fan Cooling / Natural Convection
Power Source :
AC Adaptor, Solar Panel
Inputvoltage :
DC 360V - 500V
Warranty :
2 Year
Output Voltage :
220VAC±3%
Mains Input :
170-275VAC
Output Power :
6200W
Conversion Efficiency :
90%
Operatingtemperaturerange :
-10°C to 60°C
Transport Package :
Cardboard box/Wooden box
Description

6500W Solar Panel Inverter With 120A High Current And 500V Input For Efficient Power Conversion

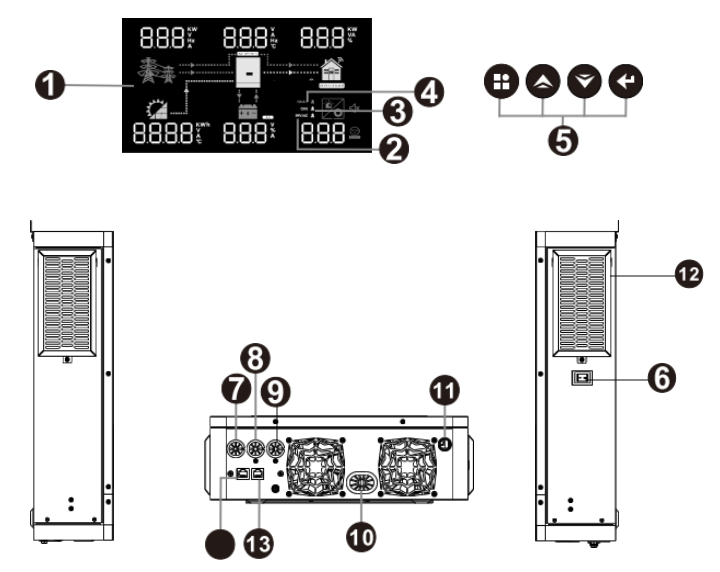

Control Panel Components
  1. LCD display
  2. Status indicator
  3. Charging indicator
  4. Fault indicator
  5. Function buttons
  6. Power on/off switch
  7. AC input
  8. Main output
  9. Second output
  10. Battery input
  11. PV input
  12. Antidust kit
  13. WIFI communication/RS-232 port
  14. Battery communication/RS-485 port

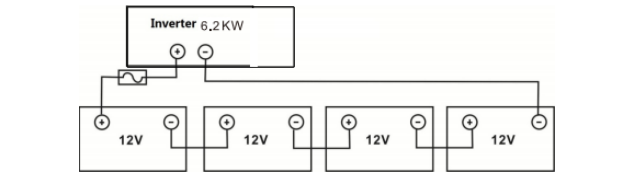

6500W Solar Panel Inverter With 120A High Current And 500V Input For Efficient Power ConversionInsert the battery wires flatly into battery connectors of inverter and make sure the bolts are tightened withtorque of 2 Nm in clockwise direction. Make sure polarity at both the battery and the inverter/charge iscorrectly connected and conductors are tightly screwed into the battery terminals.Recommended tool:#2 Pozi Screwdriver

MODEL VICTORNM-ECO-3.6KW PLUS VICTORNM-ECO-4.2KW PLUS VICTOR NM-ECO-6.2KW PLUS
Phase 1-phase
Maximum PV Input Power 6200W 6500W 6200W 6500W
Rated Output Power 3600W/3600VA 4200W/4200VA 6200W/6200VA
Maximum Solar Charging Current 120A 80A 120A
GRID-TIE OPERATION
PVINPUT(DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
Start-up Voltage/Initial Feeding Voltage 60VDC/90VDC
MPPT Voltage Range 60~450VDC
Maximum Input Current 1/18A 1/22A 1/18A 1/22A
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 195~253VAC
Nominal Output Current 15.7A 18.2A 27.0A
Power Factor >0.99
EFFICIENCY
Maximum Conversion Efficiency(DC/AC) 98%
TWO LOAD OUTPUT POWER
Full Load 3600W 4200W 6200W
Maximum Main Load 3600W 4200W 6200W
Second Load Range 720W~2520W 840W~2940W 1240W~4340W
Maximum Load Cut Off Voltage 26VDC 52VDC 26VDC 52VDC
Maximum Load Return Voltage 27VDC 54VDC 27VDC 54VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC
Acceptable Input Voltage Range 90~280VAC or 170~280VAC
Frequency Range 50±1Hz/60±1Hz
Maximum AC input Current 21.1A 24.7A 36.4A
PVINPUT(DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
MPPT Voltage Range 60~450VDC
Maximum Input Current 1/18A 1/22A 1/18A 1/22A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
Eficiency(DC toAC) 94%
BATTERY&CHARGER
Nominal DC Voltage 24VDC 48VDC 24VDC 48VDC
Maximum Solar Charging Current 120A 80A 120A 120A
Maximum AC Charging Current 100A 60A 100A 100A
Maximum Sotar+AC Charging Current 120A 80A 120A 120A
HYBRID OPERATION
PVINPUT(DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
Start-up Voltage/Initial Feeding Voltage 90VDC/120VDC
MPPT Voltage Range 60~450VDC
Maximum Input Current 1/18A 1/22A 1/18A 1/22A
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 195~253VAC
Nominal Output Current 15.7A 18.2A
AC INPUT 27.0A
AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC
Acceptable Input Voltage Range 90-280VAC or 170-280VAC
Maximum AC Input Current 21.1A 24.7A 36.4A
Maximum Charging Current
GENERAL 100A
PHYSICAL
Dimension,H*W*D(mm)
Cartoon Dimension,H*W*D(mm) 540200**4315010
Net Weight(kgs) 8.0 8.0
Gross Weight(kgs) 9.0 9.0 180.90
INTERACE
Communication Port
ENVIRONMENT RS232/RS485/WIFI/GPRS/LITHIUM BATTERY
Humidity
Operating Temperature 5%to 95%Relative-10H℃uty(Non~condensing)
STANDARD
Compliance Safety
