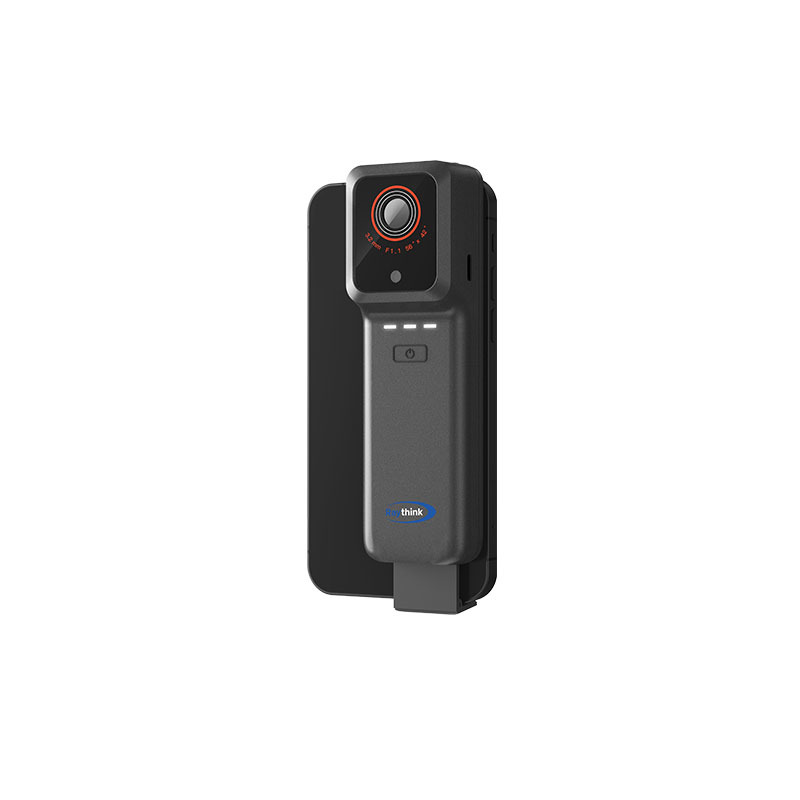

Supplier 256x192 Wireless Thermal Camera AI 4x Super-Res for Electrical Circuit Board HVAC IOS Android MSS-R-IX2
Supplier 256x192 Wireless Thermal Camera AI 4x Super-Res for Electrical Circuit Board HVAC IOS Android MSS-R-IX2
Supplier 256x192 Wireless Thermal Camera AI 4x Super-Res for Electrical Circuit Board HVAC IOS Android MSS-R-IX2
Supplier 256x192 Wireless Thermal Camera AI 4x Super-Res for Electrical Circuit Board HVAC IOS Android MSS-R-IX2
Supplier 256x192 Wireless Thermal Camera AI 4x Super-Res for Electrical Circuit Board HVAC IOS Android MSS-R-IX2
Supplier 256x192 Wireless Thermal Camera AI 4x Super-Res for Electrical Circuit Board HVAC IOS Android MSS-R-IX2
Supplier 256x192 Wireless Thermal Camera AI 4x Super-Res for Electrical Circuit Board HVAC IOS Android MSS-R-IX2
Supplier 256x192 Wireless Thermal Camera AI 4x Super-Res for Electrical Circuit Board HVAC IOS Android MSS-R-IX2
Supplier 256x192 Wireless Thermal Camera AI 4x Super-Res for Electrical Circuit Board HVAC IOS Android MSS-R-IX2
Supplier 256x192 Wireless Thermal Camera AI 4x Super-Res for Electrical Circuit Board HVAC IOS Android MSS-R-IX2
Supplier 256x192 Wireless Thermal Camera AI 4x Super-Res for Electrical Circuit Board HVAC IOS Android MSS-R-IX2
Supplier 256x192 Wireless Thermal Camera AI 4x Super-Res for Electrical Circuit Board HVAC IOS Android MSS-R-IX2
Specifications
Model Number :
MSS-R-IX2
Thermal Image Pixel :
256x192
Weight :
About 142g
Detector Type :
Uncooled infrared detector
Spatial Resolution (IFOV) :
1.71mrad
Dimensions :
136.2x41x29.3mm
Ingress Protection Rating :
IP54
Field of View :
56° x 42°
Battery Life :
About 2h
Digital Zoom :
1x,2x,4x
Price :
$220-245
Image Frequency :
25 Hz
Pixel Size :
12μm
MOQ :
1
Spectral Band :
7.5-14μm
Storage Temperature :
-20°C~+60°C
Place of Origin :
Shanghai, China
Thermal Sensitivity :
<40 mK
Display resolution :
other
Brand Name :
MSS
Thermal color palettes :
7 Color Palettes
Description
Product descriptions from the supplier

7mm manual focus lens, 30m wireless image transmission, with a latency of less than 300ms.

High-definition thermal imaging, full-power aluminum real-time super-resolution, 256X192 resolution, with real-time super-resolution up to 512X384.

With a NETD as low as 40mK, it displays high-definition thermal images in real-time, boasts a frame rate of 25Hz, and offers a clearer view of subtle hotspots across a wide measurement range from -20°C to 550°C.

Wireless measurement, smart portable thermal camera
7mm manual focus lens
30m wireless image transmission,with a delay of less than 300ms
Al voice assistant bringing about a thermal camera that understands needs
High-definition thermal image, full-powered Al real-time super-resolution
256×192resolution,Al real-time super-resolutionupto512×384
NETD as low as40mK, real-timedisplayof high-definitionthermal images
25Hz frame rate,clearer subtle hot spots
Wide measurement range from -20℃ to 550℃C
Software+: complete software ecosystem
Equipped with a professional mobile/Pc temperature analysis platform, it supporting secondary analysis
Thermal Imaging
Detector Type Uncooled infrared detector
Infrared Resolution 256×192
Super Resolution 512×384
Pixel Size 12μm
Spectral Band 7.5-14μm
Thermal Sensitivity(NETD) 40mK
Frame Rate 25Hz
Focal Length 7mm
Field of View(FOV) 25°×19°
Spatial Resolution(IFOV) 1.71mrad
Focus Mode Manual focusing
Minimum Imaging Distance 0.1m
Measurement Range -20℃~+550℃
Measurement Accuracy ±2℃or±2%of readings(whichever is greater)
Image Display
Visible Light Camera 2 megapixels
Digital Zoom 1×/2×/4×
Palette 10
Image Mode Infrared,visible light,PIP,dual-spectrum fusion
Temperature Scale Auto/manual
Measurement and Analysis
Analysis Functionson Device End Up to 3 movable points,lines,and frames;up to 3 preset templates
Analysis Report PDF format,supporting APP-side report generation
Supporting Software PC(infrared analysis software)or mobile device(iOS/Android APP)
Image Storage
Storage Medium Images stored in the APP by default and downloadable to a local album
Video Functions
Non-radiometric Infrared orVisible
Light Video Recording		 Standard MP4
Radiometric InfraredVideo Stream
Transmission		 TYPE-C connection to PC,for real-time transmission of radiometric infrared video streams
Video Resolution 512×384
System Functions
Communication Protocol Wi-Fi,Bluetooth,USB
Voice Control Voice assistant with quick command recognition
Others
Battery Built-in 1050mAh lithium-ion battery
Charging Mode USB Type-C direct charging
Battery Life About 2h
External Interface USB Type-C
Tripod Socket UNC1/4-20 interface for the tripod
Operating Temperature -10℃~+50℃
Operating Humidity 10%~95%(non-condensing)
Storage Temperature -20℃~+60℃
Ingress Protection Rating IP54
Shock and Vibration Shock:25g(IEC 60068-2-27);Vibration:2.5g(IEC60068-2-6)
Weight and Dimensions About 142g,136.2×41×29.3mm
Certificates CE/FCC/ROHS/SRRC/DGM/CMA
Package Contents Thermal camera,Type-C cable,quick start guide,calibration certificate,certificate of conformity,portable bag
