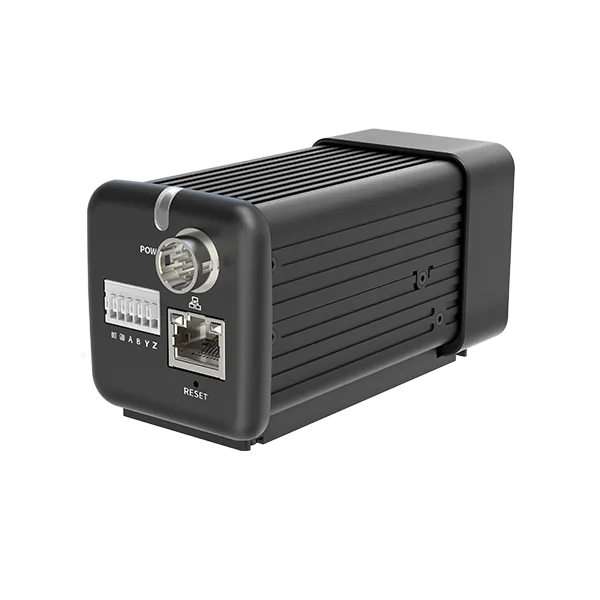

Supplier Uncooled FPA Thermal Camera Motorized Focus for Electronic Circuit Industrial RTSP Onvif CE FCC MSS-R-AT61
Supplier Uncooled FPA Thermal Camera Motorized Focus for Electronic Circuit Industrial RTSP Onvif CE FCC MSS-R-AT61
Supplier Uncooled FPA Thermal Camera Motorized Focus for Electronic Circuit Industrial RTSP Onvif CE FCC MSS-R-AT61
Supplier Uncooled FPA Thermal Camera Motorized Focus for Electronic Circuit Industrial RTSP Onvif CE FCC MSS-R-AT61
Supplier Uncooled FPA Thermal Camera Motorized Focus for Electronic Circuit Industrial RTSP Onvif CE FCC MSS-R-AT61
Supplier Uncooled FPA Thermal Camera Motorized Focus for Electronic Circuit Industrial RTSP Onvif CE FCC MSS-R-AT61
Supplier Uncooled FPA Thermal Camera Motorized Focus for Electronic Circuit Industrial RTSP Onvif CE FCC MSS-R-AT61
Supplier Uncooled FPA Thermal Camera Motorized Focus for Electronic Circuit Industrial RTSP Onvif CE FCC MSS-R-AT61
Supplier Uncooled FPA Thermal Camera Motorized Focus for Electronic Circuit Industrial RTSP Onvif CE FCC MSS-R-AT61
Supplier Uncooled FPA Thermal Camera Motorized Focus for Electronic Circuit Industrial RTSP Onvif CE FCC MSS-R-AT61
Supplier Uncooled FPA Thermal Camera Motorized Focus for Electronic Circuit Industrial RTSP Onvif CE FCC MSS-R-AT61
Supplier Uncooled FPA Thermal Camera Motorized Focus for Electronic Circuit Industrial RTSP Onvif CE FCC MSS-R-AT61
Specifications
Field of View :
54.3° x 44°
Spectral Band :
8μm~14μm
Interface Protocol :
ONVIF, GB28181
Image Frequency :
25 Hz
Typical Power Consumption :
≤3.3W
Model Number :
MSS-R-AT61
Dimensions :
56mmx51mmx119mm
Frame Rate :
25Hz
Brand Name :
MSS
Place of Origin :
Shanghai, China
Thermal Image Pixel :
640x512
MOQ :
1
Detector :
Uncooled VOx detector
Power Supply Mode :
10~36V DC, POE
Weight :
About 430g
Price :
$2,650-2,690
Pixel Pitch :
12μm
Operating Temperature :
-20℃~+60℃
Thermal Sensitivity :
<50 mK
Display resolution :
other
Thermal color palettes :
18 Color Palettes
Description
Product descriptions from the supplier

AT61 is a high-performance and high-accuracy electric-focusing thermal camera with an uncooled infrared FPA detector and multiple lenses choose. The device supports multiple protocols such as RTSP, ONVIF, and GB28181 .Equipping with professional temperature measurement analysis software and SDK that facilitating system integration. Be suitable for temperature monitoring and imaging in electronic circuits, scientific research, industrial automation and other application fields.


Model AT61
Focal Length 7.8mm 13mm 25mm
FOV 54.3°×44° 33.7°×27° 17.6°×14.1°
IFOV 1.54mrad 0.92mrad 0.48mrad
Thermal Imaging Parameters
Detector Uncooled VOx detector
Infrared Resolution 640×512
Pixel Pitch 12 μm
Spectral Band 8μm~14μm
NETD <50mK
Temperature Measurement
Measurement Range -20℃~+150℃,0℃~550℃
Measurement Accuracy ±2℃or±2%of readings
Temperature Measurement
Correction		 Reflected temperature,ambient temperature,atmospheric transmissivity,object emissivity,distance
Measurement Tool Settings of measurement rules for a total of 12 points,lines and areas,supporting isotherm setting
Temperature Width Stretch Support temperature width stretch
Image and Video
Frame Rate 25Hz
Palettes 18 color palettes including black-hot,white-hot,iron red,rainbow,etc.
Video Standards H.264,H.265
Thermal Image Capture Support thermal image capture and secondary analysis
Mirroring Horizontal/Vertical/Diagonal
Digital Zoom 1.0~8.0 continuous zoom(step size:0.1)
System Interface
Communication Interface RJ45,supporting Gigabit network and customized RS485 for Pecol-D protocol
Video Interface 1-channel analog video
Alarm Interface 1-channel alarm output(optional)
Network protocol TCP,UDP,ICMP,DHCP,RTSP
Interface Protocol ONVIF,GB28181
Device Specifications
Operating Temperature -20℃~+60℃
Power Supply Mode 10~36V DC,POE
Typical Power Consumption ≤3.3W
Dimensions 56mm×51mm×119mm
Weight About 430g

About this supplier

Shanghai Mengshengsheng International Trade Co., Ltd. specializes in optical products, including industrial microscopes and thermal cameras. With a focus on quality, they conduct 100% finished product testing and adhere to rigorous quality control protocols. The company offers a one-year warranty and diverse shipping options, ensuring reliable service and product integrity.
