Specifications
Field of View :
47° x 35.6°
Spectral Band :
8μm~14μm
Interface Protocol :
ONVIF, GB28181
Image Frequency :
50 Hz
Typical Power Consumption :
≤3W
Model Number :
MSS-R-ATR31
Dimensions :
56mmx51mmx119mm
Frame Rate :
50Hz
Thermal Image Pixel :
384x288
Place of Origin :
China
Detector :
Uncooled VOx detector
Power Supply Mode :
10~36V DC, POE
Weight :
About 430g
Pixel Pitch :
17μm
Operating Temperature :
-20℃~+60℃
Price :
$2,200-2,280
Thermal Sensitivity :
<50 mK
Brand Name :
MSS
MOQ :
1
Display resolution :
other
Thermal color palettes :
18 Color Palettes
Description
Product descriptions from the supplier

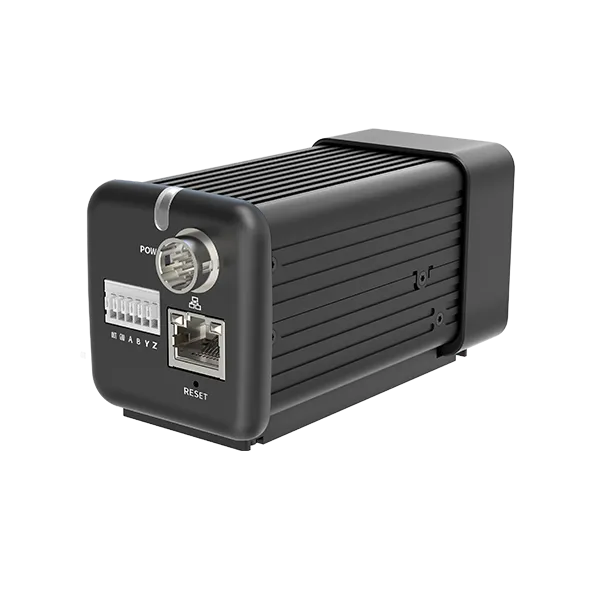

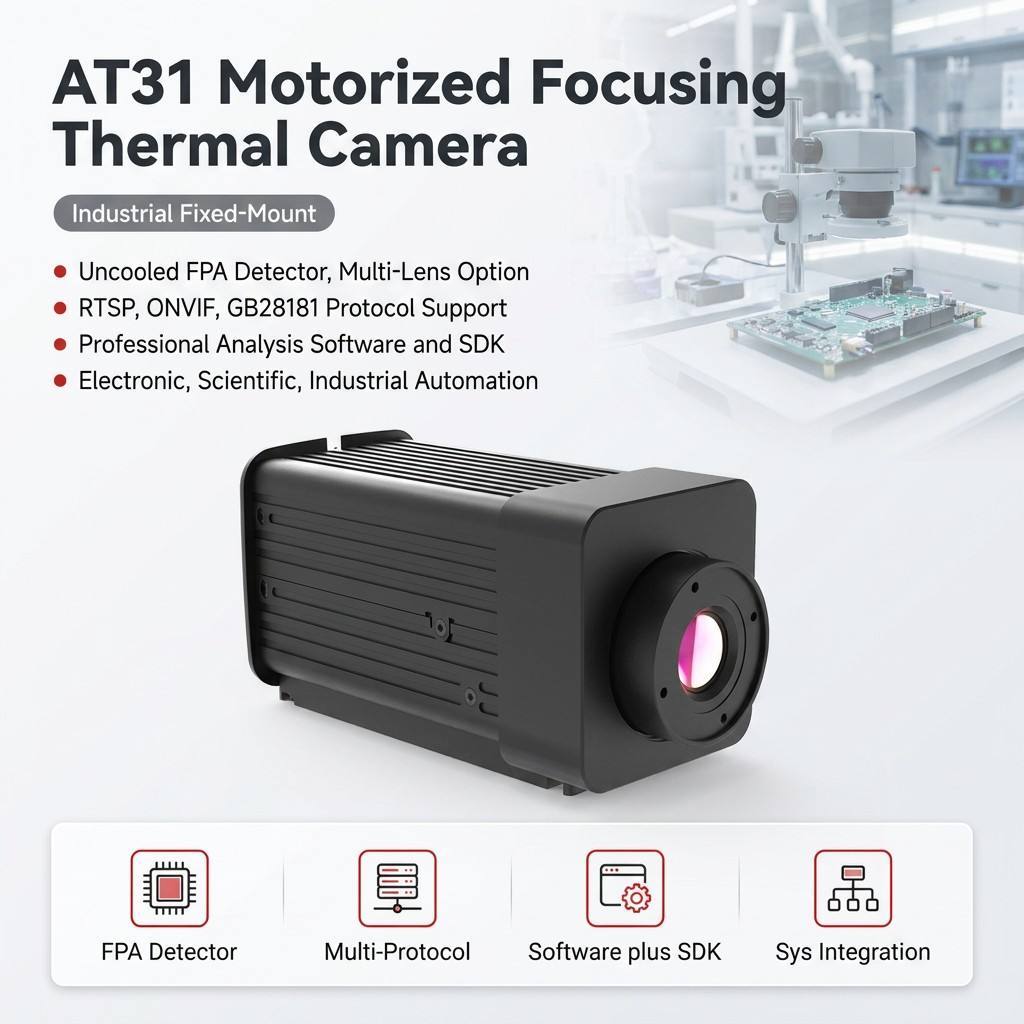

AT31 is a high-performance and high-accuracy electric-focusing thermal camera with an uncooled infrared FPA detector and multiple lenses choose. The device supports multiple protocols such as RTSP, ONVIF, and GB28181 .Equipping with profession- al temperature measurement analysis software and SDKthat facilitating system integration. Be suitable for temperature monitoring and imaging in electronic circuits, scientific research, industrial automation and other application fields.


Model AT31
Focal Length 7.8mm 15mm 19mm
FOV 47°×35.6° 25°×18.7° 19.6°×14.7°
IFOV 2.17mrad 1.1mrad 0.89mrad
Thermal Imaging Parameters
Detector Uncooled VOx detector
Infrared Resolution 384×288
Pixel Pitch 17μm
Spectral Band 8μm~14μm
NETD <50mK
Temperature Measurement
Measurement Range -20℃~+150℃,0℃~550℃
Measurement Accuracy ±2℃or±2%of readings
Temperature Measurement
Correction		 Reflected temperature,ambient temperature,atmospheric transmissivity,object emissivity,distance
Measurement Tool Settings of measurement rules fora total of 12 points,lines and areas,supporting isotherm setting
Temperature Width Stretch Support temperature width stretch
Image and Video
Frame Rate 50Hz
Palettes 18 color palettes including black-hot,white-hot,iron red,rainbow,etc.
Video Standards H.264,H.265
Thermal Image Capture Support thermal image capture and secondary analysis
Mirroring Horizontal/Vertical/Diagonal
Digital Zoom 1.0~8.0 continuous zoom(step size:0.1)
System Interface
Communication Interface RJ45,supporting Gigabit network and customized RS485 for Pecol-D protocol
Video Interface 1-channel analog video
Alarm Interface 1-channel alarm output(optional)
Network protocol TCP,UDP,ICMP,DHCP,RTSP
Interface Protocol ONVIF,GB28181
Device Specifications
Operating Temperature -20℃~+60℃
Power Supply Mode 10~36V DC,POE
Typical Power Consumption ≤3W
Dimensions 56mm×51mm×119mm
Weight About 430g
