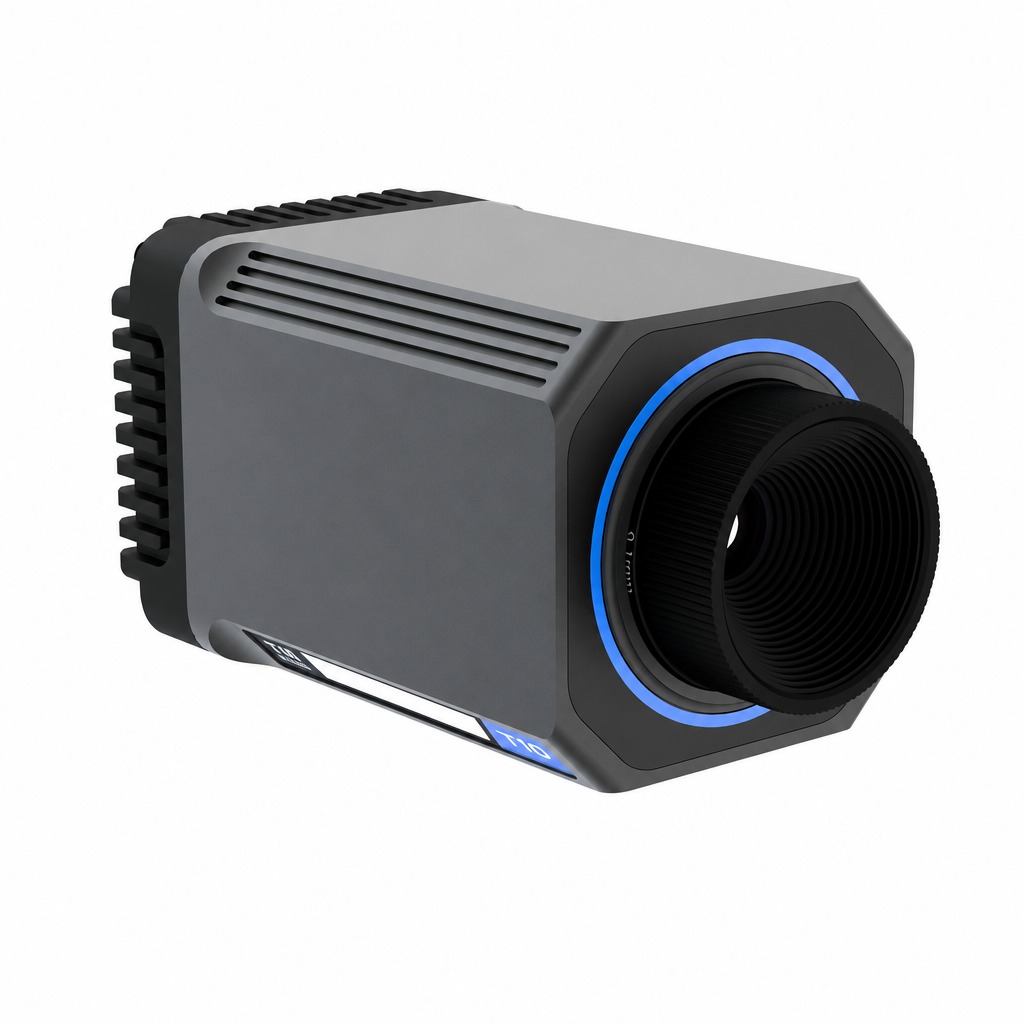

Supplier 640x512 Online Thermal Camera Uncooled VOx 120Hz for Industrial Automation Rail Transportation MSS-R-TN660

Specifications

Thermal Image Pixel :

640x512

Brand Name :

MSS

MOQ :

Detector :

Non-cooled vanadium oxide detector

Typical Power Consumption :

≤4.5W

NETD :

≤40mK

Field of View :

48° x 38.4°

Spectral Band :

7.5μm~14μm

Weight :

About 290g

Model Number :

MSS-R-TN660

Place of Origin :

Shanghai, China

Price :

$9,700-10,000

Image Frequency :

120 Hz

Dimensions :

91.9X49X49mm

Pixel Pitch :

12μm

Operating Temperature :

-20°C~+60℃

Thermal Sensitivity :

<40 mK

Display resolution :

other

Thermal color palettes :

20 Color Palettes

Frame Rate :

120Hz

Description

Product descriptions from the supplier

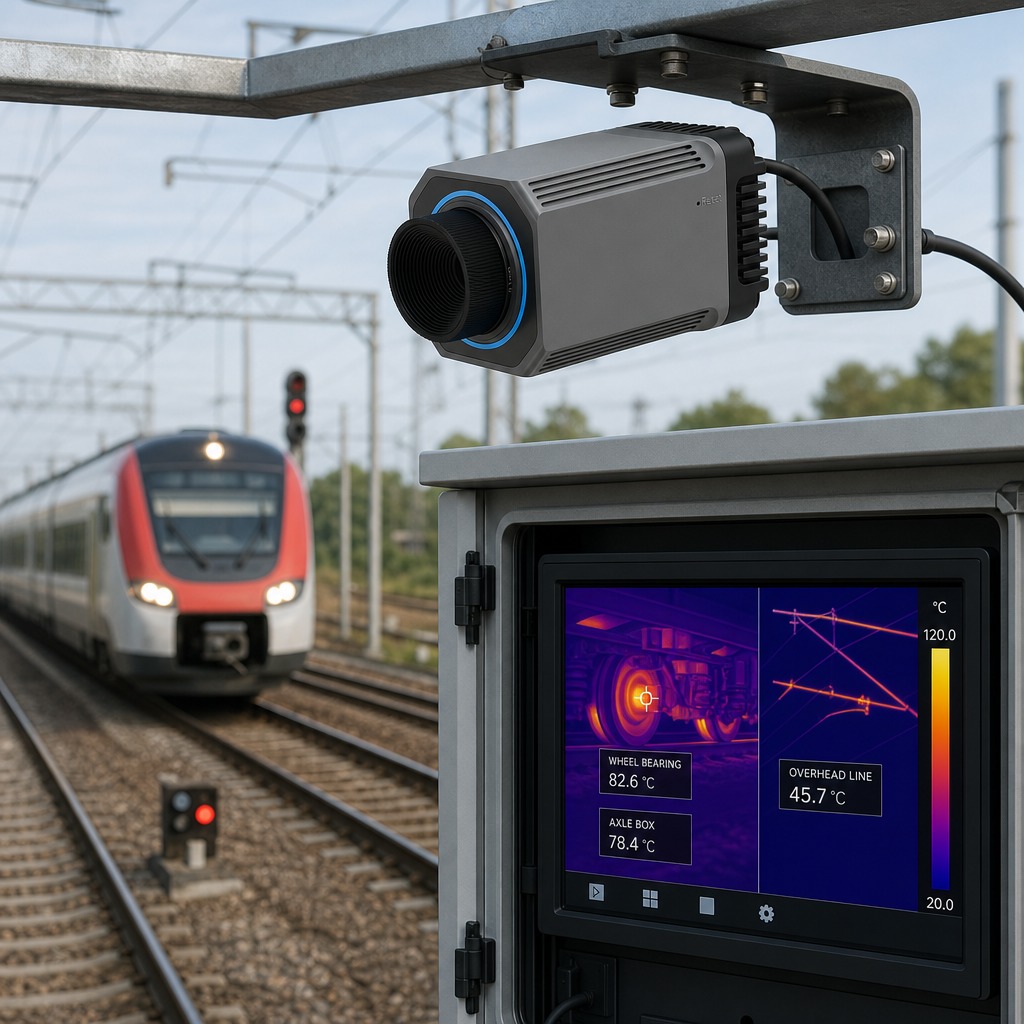

The TN660 is an online thermal imaging thermometer designed forhigh- speed dynamic scenarios, utilizing a 640x5 12 non-cooled vanadium oxide detector with a pixel pitch of 1 2 um; it supports a high frame rate output of 120 Hz, balancing thermal map detail, temperature measurement accuracy, and system integration capabilities. The device supports two temperature measurement ranges: -20°C-150°C and 100°C-650°C, with a temperature measurement accuracy of +2°C or +2% of the reading value. It is suitable for applications such as industrial automation, rail transit, road transportation, and scientific research testing where stringent requirements are placed on image continuity, temperature synchronization, and real-time coordination.

High-Resolution and High-Frame-RateStable Imaging

Equippedwithanext-generation12umhigh-frame-rate infraredthermal imagingdetector,featuringa640x512infraredresolution combined with full-frame 12o Hz high framerate, high-speeddataacquisition,and synchronized temperature imagedata.
Integratesproprietaryinfraredimageprocessingalgorithmsensuringthatimagesremainfineandcleareveninhigh-dynamic range scenarios.
Precise Temperature Measurement WithSynchronized Temperature Display
Wide temperature range:-20℃ to 150C and 100℃ to 650C, suitable for a wider array of industrial temperature measurement applications.
Supports image processing,temperaturemeasurement, and synchronized image-temperaturedata streaming, thereby enhancing theconsistency and analyzability
ofdynamic scenario data.
Equipped with professional analytical software,it provides 36 temperature measurement tools and supports querying and exporting historical temperature curves.
Comprehensive Industrial Interfaces and Highly Flexible Integration Capabilities
SupportsRJ45GigabitEthernetport,USB3.0UVC,RS485,andPoEpowersupply
Compatiblewithmultipleprotocols includingONViF,GB28181,MQTT,andModbus TCP;features a lowbarrier tosecondarydevelopmentand enables more efficientdeployment.
Equippedwithan integratedGigEprofessional interface,itoffersenhancedhigh-speedconnectivityand is well-suitedfor variousdistributedsystems.
Supports I/O hard triggers, temperature alarms, abnormal alarms,andalarm interlocking; ensures accurate correlation between images, temperatures, and field events.

Product model	TN660
Thermal imaging parameters
Detector Type	Non-cooled vanadium oxide detector
Infrared resolution	640×512
Pixel spacing	12 μm
Frame frequency	120Hz(frame rate adjustable)
Response Band	7.5μm~14μm
Net Thermal Sensitivity(NETD)	≤40mk(@25℃,F#1.0,120Hz)
Lens focal length	9.1mm	25mm
Focus Method	Fixed-focus thermal insulation
Angle of field	48°×38.4°	17.4°×14°
Spatial resolution	1.32 mrad	0.48 mrad
F price	F1.1	F1.0
Image Adjustment
Palette	20 color palettes:Black Heat,White Heat,Rainbow,etc.
Electronic Zoom	1.0~4.0x
Image Mirror	Left/Right/Up/Down/Diagonal
Temperature Measurement Function
Temperature measurement range	-20℃~150℃,100℃~650℃
Temperature measurement accuracy	±2℃ or±2%of the reading,whichever is greater
Temperature measurement correction	Reflection temperature,ambient temperature,humidity,object emissivity,distance
Temperature measurement tools	supports point temperature measurement,line temperature measurement,and area temperature measurement (total of 20modes),as wellas sotherm line configuration.
Temperature Alarm	Supports video recording/screenshot capture (including heat map capture),alarm output,and audible alarm.
Heatmap Extraction	Support
Wenkuan Tension	Support
Other Functions	Supports offline analysis and report generation
System interface
Communication interface	RJ45,1000M Ethernet port 1-channel RS485 interface:supports soft trigger and hard trigger;supports the standard Pelco-D/P protocol;1-channel USB 3.0 interface.
Video Standards	H.264,H.265
Audio Interface	1 audio input:Line In;1 audio output:Line Out
Alarm Interface	1 alarm input channel,1 alarm output channel
Storage Interface	Provides reserved interfaces and supports SD card expansion.
Networking protocol	IPv4,HTTP,HTTPS,SMTP,FTP,UPnP,DNS,DDNS,NTP,RTCP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,GIGE
Interface Protocol	Modbus TCP/RTU,ONVIF,GB2818,MQTT
General Specifications
Working temperature	Imaging:-40℃ to+60℃;Temperature measurement:-20℃ to 60℃
Humidity	<95%RH
Power supply mode	9-36VDC or POE power supply
Typical power consumption	<4.5W
Size	91.9×49×49mm	94.9×49×49mm
Weight	290±5g
