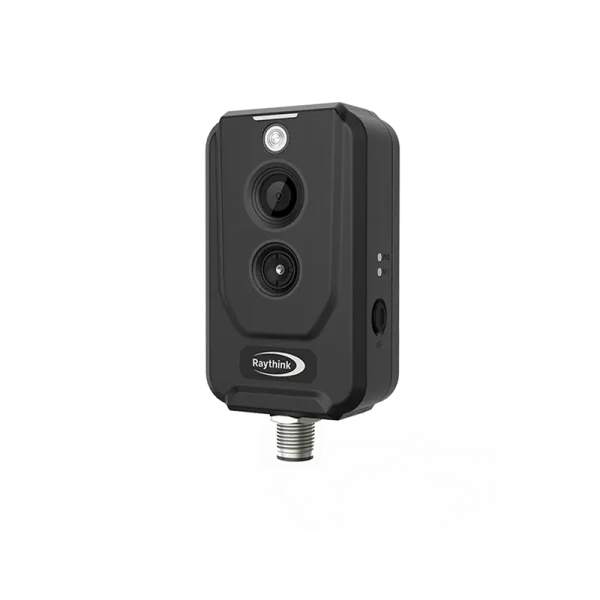

Manufacturer 256x192 WLP Thermal Camera Cube for Electrical Industrial POE Magnetic Mount Compact Easy Wiring MSS-R-TN220

Specifications

Field of View :

56° x 42°

Pixel Pitch :

12μm

Weight :

152g

Image Frequency :

30 Hz

Video Encoding Format :

MP4

Place of Origin :

Shanghai, China

Thermal Image Pixel :

256x192

Spectral Band :

7.5~14μm

Image Encoding Format :

JPEG

Dimensions :

93mmX56mmX31.5mm

Frame Rate :

1-25Hz, adjustable

Dual-Spectrum Fusion :

Support

MOQ :

Ingress Protection Rating :

IP67

Price :

$300-340

Light Filling :

Support

Brand Name :

MSS

Thermal color palettes :

20 Color Palettes

Thermal Sensitivity :

<40 mK

Model Number :

MSS-R-TN220

Display resolution :

Other

Description

Product descriptions from the supplier

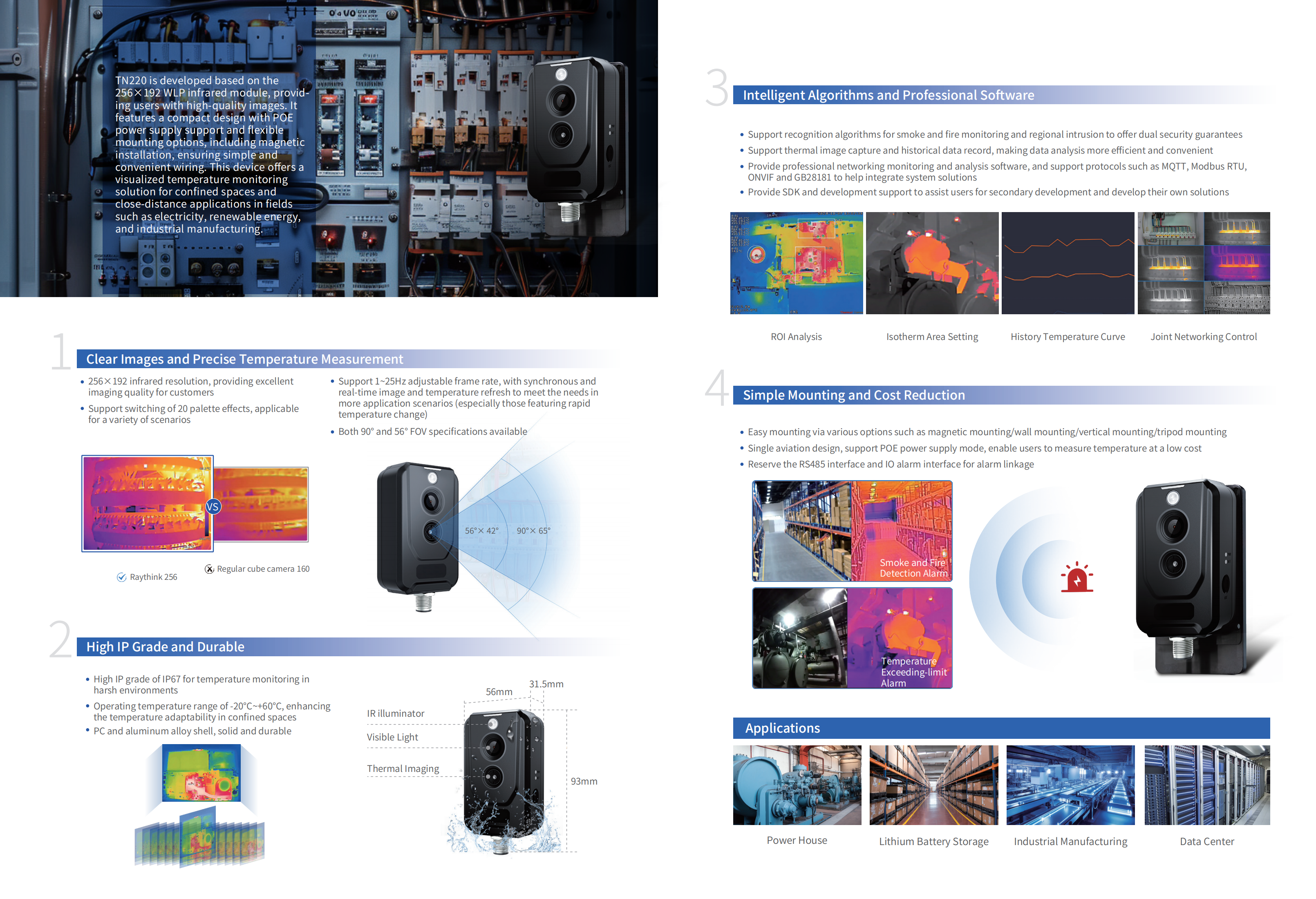

Clear Images and Precise Temperature Measurement

High IP Grade and Durable

Intelligent Algorithms and Professional Software

Simple Mounting and Cost Reduction

Clear Images and Precise Temperature Measurement
256 × 192 infrared resolution, providing excellent imaging quality for customers
Support switching of 20 palette effects, applicable for a variety of scenarios
Support 1~25Hz adjustable frame rate, with synchronous and real-time image thermal image
Both 90° and 56° FOV specifications available
High IP Grade and Durable
High IP grade of IP67 for temperature monitoring in harsh environments
Operating temperature range of -20°C~+60°C, enhancing the temperature adaptability in confined spaces PC and Aluminum alloy shell, solid and durable
Intelligent Algorithms and Professional Software
Support recognition algorithms for smoke and fire monitoring and regional intrusion to offer dual security guarantees
Support thermal image capture and historical data record, making data analysis more efficient and convenient
Support protocols such as MQTT, Modbus TCP/RTU, ONVIF and GB28181 to help integrate system solutions Provide SDK and development support to assist users for secondary development
Simple Mounting and Cost Reduction
Easy mounting via various options such as magnetic mounting,wall mounting,vertical mounting,tripod mounting
Single aviation design, POE power supply, enable users to measure temperature at a low cost
Reserve the RS485 interface and IO alarm interface for alarm linkage

Thermal Imaging Parameters
Detector Type	VOx Uncooled FPA Detector
Spectral Band	7.5～14μm
NETD	≤40mK(@25℃,F#1.0,25Hz)
Resolution	256×192
Frame Rate	1-25Hz,adjustable
Pixel Pitch	12μm
Focal Length	3.2mm	2mm
Focus Mode	Athermalized Prime Lenses
FOV	56°×42°	90°×65.1°
Palette	20 palettes available in total,such as black-hot/white-hot/rainbow
Dual-Spectral Parameters
Visible Light Resolution	1600×1200
Light Filling	Support
Dual-Spectrum Fusion	Support
Network Function
Network Protocol	IPv4,DHCP,HTTP,HTTPS,RTSP,SMTP,FTP,UPnP
Interface Protocol	ONVIF,GB28181,Modbus TCP/RTU,MQTT,SDK
Browser	Support browsers like Google,Firefox,Edge,etc.in Chinese and English
Video Parameters
Image Encoding Format	JPEG
Video Encoding Format	MP4
Video Compression Standard	H.264/H.265
Temperature Measuremen	t
Temperature Measurement Range	-20℃~+150℃,100℃~550℃
Measurement Accuracy	±2℃ or±2%
Temperature Measurement&Analysis	Global,point(12),line(12),area(12)and mask region(12)temperature measurement rules as well as alarm linkage
Isotherm	Support isotherm setting
Temperature Width Stretch	Support temperature width stretch display
Thermal Image Capture	Support thermal image capture and secondary analysis
Intelligent Analysis
Intelligent Detection	Supportinteligentevent analysis suchassmoke and fire detection,regionalintrusion,tripwir intrusion,passenger and vehicle recognition and target fiter
Abnormal Alarm	Support detection of exceptions such as burn warnings,SD card exception,network cable abnormality and illegal access
Communication Interface
Power Supply	DC 10~30V1A/POE(802.3af)
Network Interface	1-channel RJ45,100M adaptive Ethernet port,support POE power supply
Alarm Interface	1-channel IO alarm input,1-channel IO alarm output
Communication Interface	1-channel RS485 interface
Storage Interface	32GB Internal Memory
Others
Reset Button	Support
Operating Temperature and Humidity	-20℃~+60℃,<95%RH
Ingress Protection Rating	IP67
Power Consumption	≤2.6W
Dimensions	93mm×56mm×31.5mm
Weight	152g
