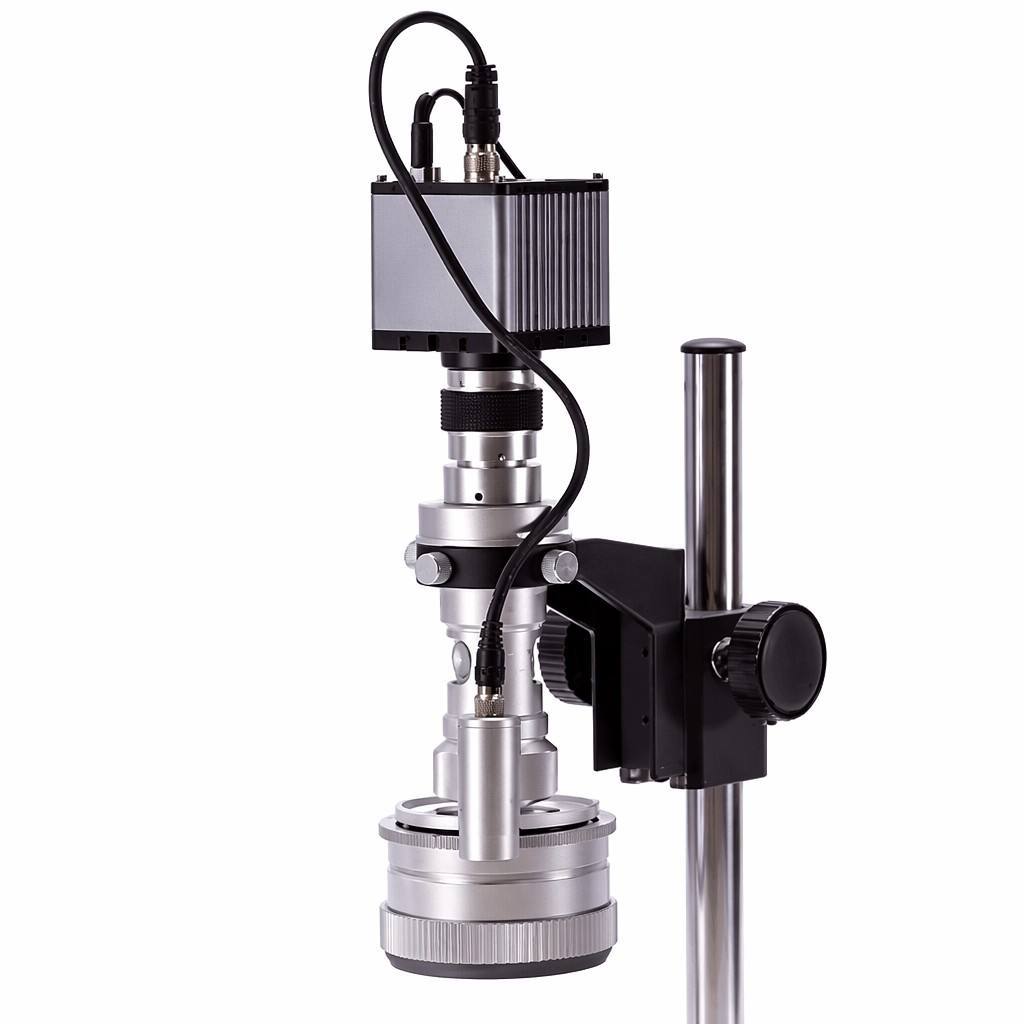

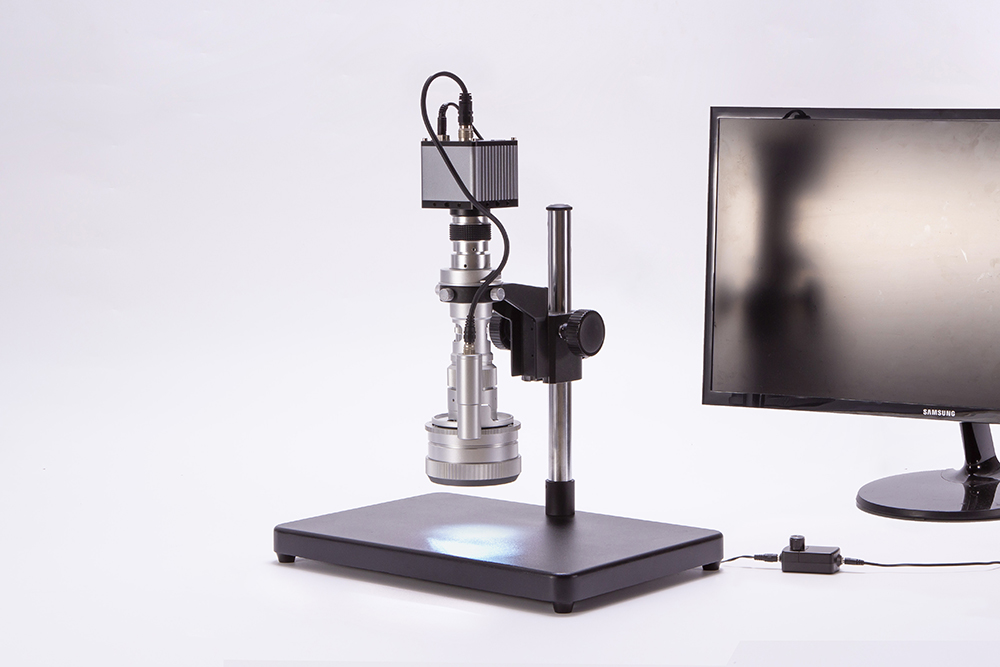

OEM Factory HD Motorized Digital Microscope Auto Cruise Programmable POI for Micro-components Inspection SDK MSS-M-3D
OEM Factory HD Motorized Digital Microscope Auto Cruise Programmable POI for Micro-components Inspection SDK MSS-M-3D
OEM Factory HD Motorized Digital Microscope Auto Cruise Programmable POI for Micro-components Inspection SDK MSS-M-3D
OEM Factory HD Motorized Digital Microscope Auto Cruise Programmable POI for Micro-components Inspection SDK MSS-M-3D
OEM Factory HD Motorized Digital Microscope Auto Cruise Programmable POI for Micro-components Inspection SDK MSS-M-3D
OEM Factory HD Motorized Digital Microscope Auto Cruise Programmable POI for Micro-components Inspection SDK MSS-M-3D
OEM Factory HD Motorized Digital Microscope Auto Cruise Programmable POI for Micro-components Inspection SDK MSS-M-3D
OEM Factory HD Motorized Digital Microscope Auto Cruise Programmable POI for Micro-components Inspection SDK MSS-M-3D
OEM Factory HD Motorized Digital Microscope Auto Cruise Programmable POI for Micro-components Inspection SDK MSS-M-3D
OEM Factory HD Motorized Digital Microscope Auto Cruise Programmable POI for Micro-components Inspection SDK MSS-M-3D
OEM Factory HD Motorized Digital Microscope Auto Cruise Programmable POI for Micro-components Inspection SDK MSS-M-3D
OEM Factory HD Motorized Digital Microscope Auto Cruise Programmable POI for Micro-components Inspection SDK MSS-M-3D
Specifications
Price :
$1,300-1,500
External Display Support :
Yes
Brand Name :
MSS
dimension :
Custom Sizes
illumination :
Transmitted & Reflected LED Lighting
MOQ :
1
Calibration :
Factory Calibrated
Display Type :
LCD Display
customized support :
ODM, OEM
warranty :
1 Year
Model Number :
MSS-M-3D
Logo/graphic design :
no
Dioptric Adjustment :
other
IP Rating :
IP20
Focusing Distance :
The magnification is based on the objective lens
Focus Type :
Manual Focus
type :
Digital Microscope
Place of Origin :
Shanghai, China
camera resolution :
2K/4K Ultra HD
Description
Product descriptions from the supplier

Automatic cruise observation, with the option to choose between forward and reverse circulation

Programming fixed-point observation, can automatically define n positions of interest

Simulate manual observation

Adjustable speed Observation angle and direction visualization

OEM Factory HD Motorized Digital Microscope Auto Cruise Programmable POI for Micro-components Inspection SDK MSS-M-3D

Chip structure FPGA+ARM
operating system LINUX 3.10
Kernel structure Dual Core Cortex-A9
Dominant frequency speed 1Ghz
Optical dimensions 1/2inch
resolution 1920×1080
Frame rate 60fps
Interface 2 USB interfaces, which can be connected to USB flash disk, wireless mouse or keyboard
working voltage 12v
working temperature -10 ° - 70 °
Overall dimensions 71*71*72mm
weight 450g
Optical size 1/2inch
PixelSize 3.75um*3.75um
Image resolution 1920*1080
Frame rate 60fps
white balance One button white balance
Suppress strong light selection Level 3 selection
Edge enhancement mode 4-level selection
Color adjustment R.G, B independentlyadjustable
Built in crosshair 32 movable lines
Video output HDMI digital output
Lens interface C
Voltage input DC5-12V
