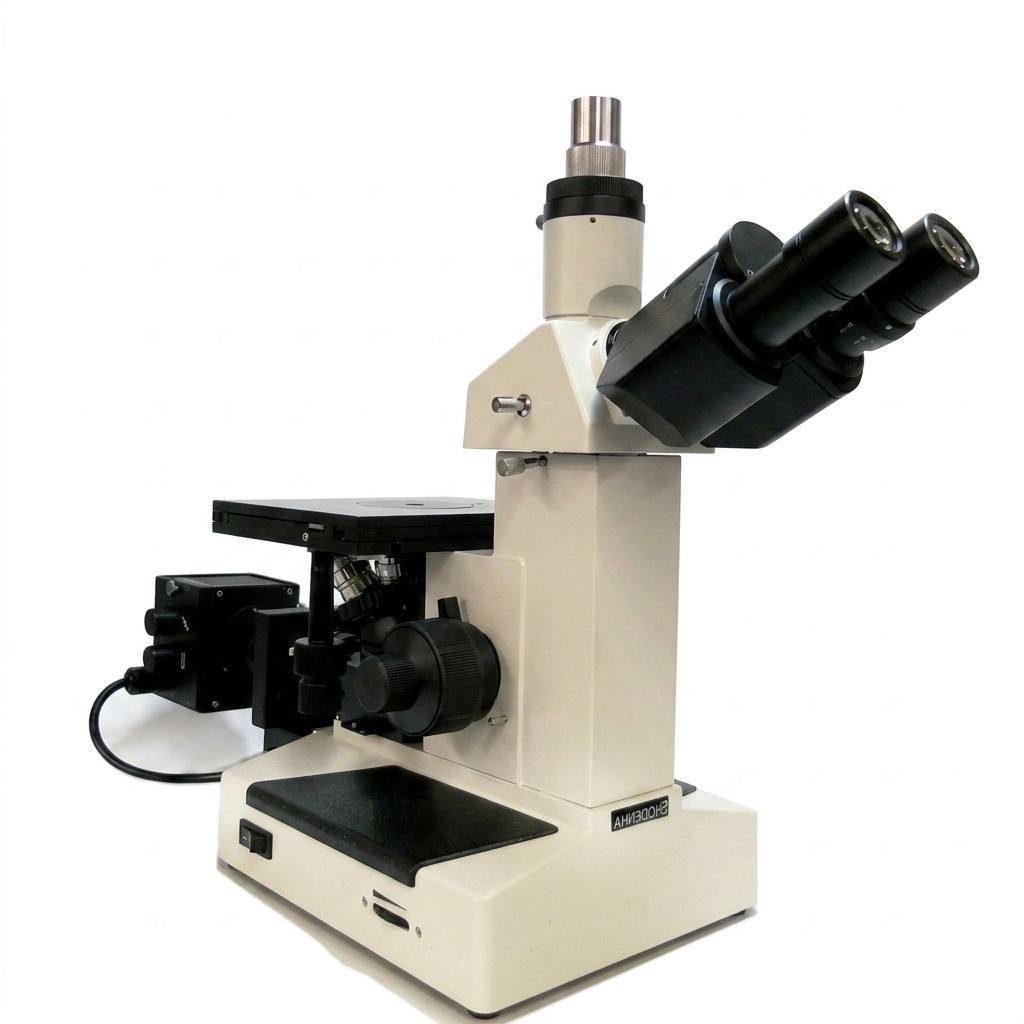

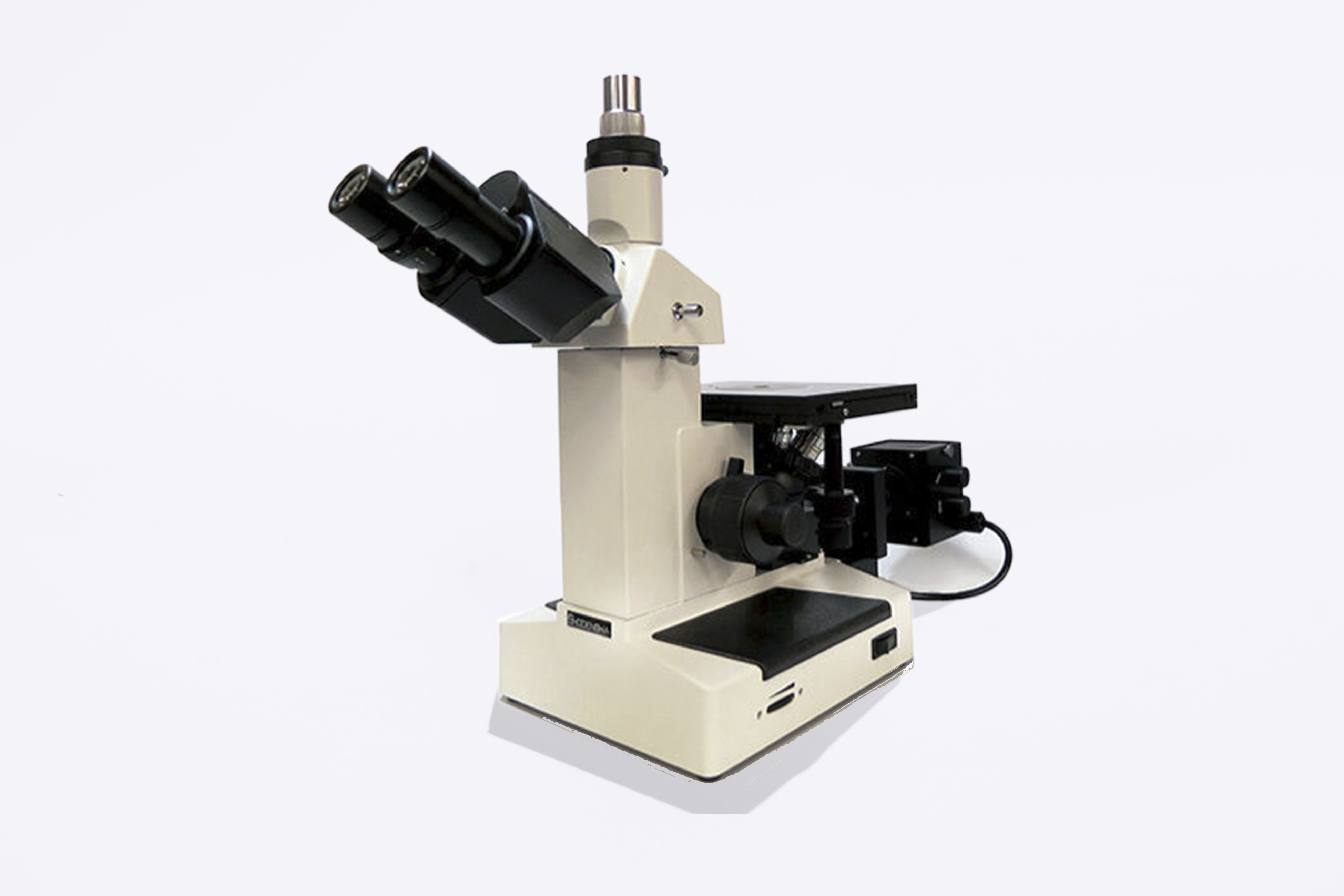

Manufacturer Inverted Metallographic Microscope Polarized Light for Metal Surface Observation CE FCC ISO SDK MSS-M-D4K

Specifications

External Display Support :

Yes

Place of Origin :

Shanghai, China

Calibration :

Manual Calibration

Display Type :

LCD Display

dimension :

Custom Sizes

illumination :

Bottom LED Lighting

Price :

$750-790

Dioptric Adjustment :

other

IP Rating :

IP20

MOQ :

Focusing Distance :

The magnification is based on the objective lens

customized support :

ODM, OEM

warranty :

1 Year

Logo/graphic design :

Model Number :

MSS-M-D4K

Focus Type :

Manual Focus

Brand Name :

MSS

type :

Inverted Metallurgical Microscope

camera resolution :

4 K

Description

Product descriptions from the supplier

Observing from below facilitates the observation of samples with a certain thickness.

Using a wide-angle eyepiece allows for high-quality, wide-angle observation, as well as epi-illumination for polarized light observation.

It can be used not only for observing metal surfaces, but also for a wide range of applications in production sites such as mineralogy, precision machinery industry, chemical industry, and quality assurance.

Total magnification 50x,100x,200x,400x,1000x
Eyepiece lens 10x(18mm)
Object lens Plan apochromat object lens(No
cover glass) 5x, 10x, 20x, 40x, 100x
Focus point' s adjustment Coaxial Coarse/Fine Focus
System
(Tension adjustment mechanism, limit stopper,
minimum scale 0.002mm)
Revolver Revolver (5 pins)
Interpupillary distance 53-75mm
Lens barrel Triple lens head
Filter Filter (yellow, blue, green,
frosted glass)
Stage Mechanical stage 180x150mm
Lighting 6V 20W Halogen lamp (With
dimming mechanism)
Power supply AC100V 50/60Hz
Dimension 200x580x360(H)mm
