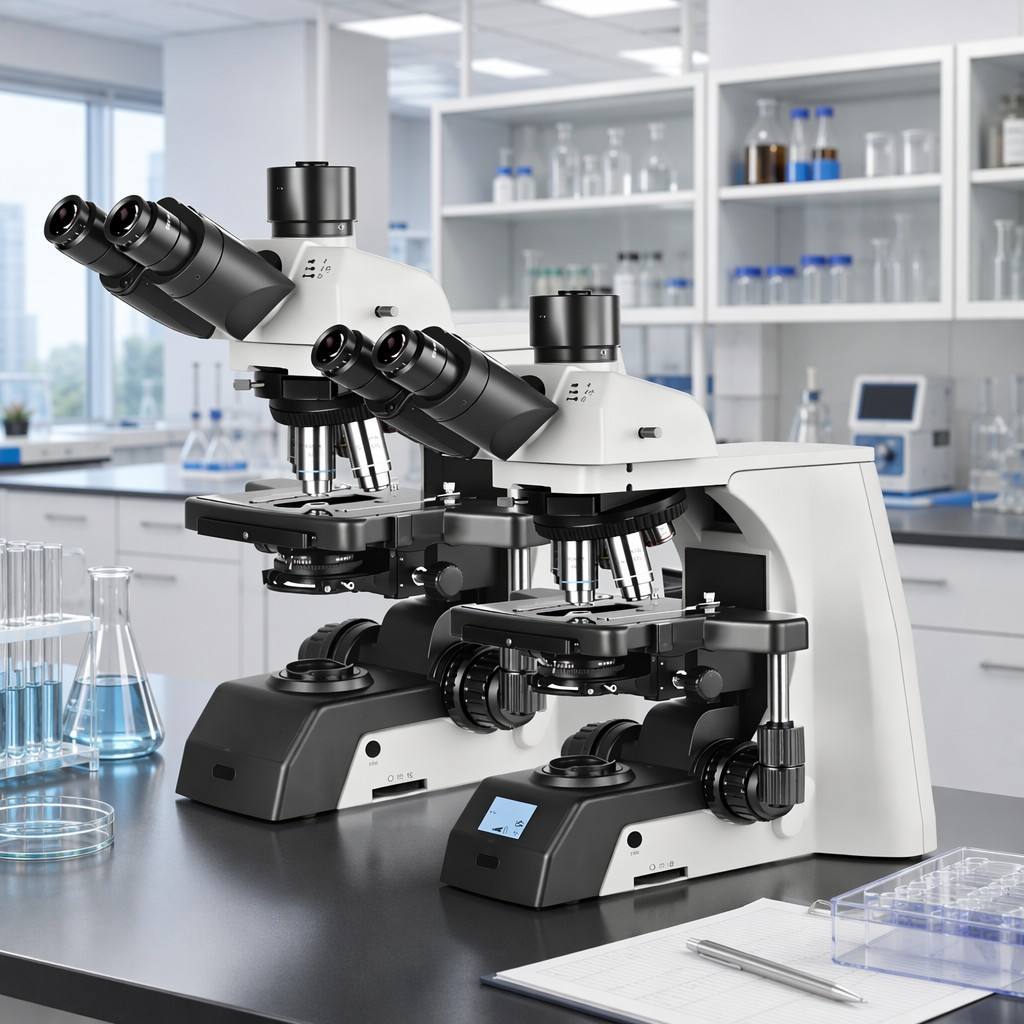

Supplier Upright Biological Microscope Darkfield DIC Fluorescence High Performance for Research Medical Lab CE MSS-M-OF011
Supplier Upright Biological Microscope Darkfield DIC Fluorescence High Performance for Research Medical Lab CE MSS-M-OF011
Supplier Upright Biological Microscope Darkfield DIC Fluorescence High Performance for Research Medical Lab CE MSS-M-OF011
Supplier Upright Biological Microscope Darkfield DIC Fluorescence High Performance for Research Medical Lab CE MSS-M-OF011
Supplier Upright Biological Microscope Darkfield DIC Fluorescence High Performance for Research Medical Lab CE MSS-M-OF011
Supplier Upright Biological Microscope Darkfield DIC Fluorescence High Performance for Research Medical Lab CE MSS-M-OF011
Supplier Upright Biological Microscope Darkfield DIC Fluorescence High Performance for Research Medical Lab CE MSS-M-OF011
Supplier Upright Biological Microscope Darkfield DIC Fluorescence High Performance for Research Medical Lab CE MSS-M-OF011
Supplier Upright Biological Microscope Darkfield DIC Fluorescence High Performance for Research Medical Lab CE MSS-M-OF011
Supplier Upright Biological Microscope Darkfield DIC Fluorescence High Performance for Research Medical Lab CE MSS-M-OF011
Supplier Upright Biological Microscope Darkfield DIC Fluorescence High Performance for Research Medical Lab CE MSS-M-OF011
Supplier Upright Biological Microscope Darkfield DIC Fluorescence High Performance for Research Medical Lab CE MSS-M-OF011
Specifications
External Display Support :
Yes
Price :
$3,900-4,100
dimension :
Custom Sizes
illumination :
Reflected & Transmitted LED Illumination
Dioptric Adjustment :
Binocular Diopter Adjustable
IP Rating :
IP20
MOQ :
1
Calibration :
Factory Calibrated
Display Type :
Optical Eyepiece & Digital Display
Focusing Distance :
The magnification is based on the objective lens
Brand Name :
MSS
customized support :
ODM, OEM
warranty :
1 Year
Logo/graphic design :
no
Model Number :
MSS-M-OF011
camera resolution :
4K/1080P HD (Optional)
Focus Type :
Manual Coaxial Coarse & Fine Focus
Place of Origin :
Shanghai, China
type :
Biological Microscope
Description
Product descriptions from the supplier

It has precise imaging and powerful color difference correction capability.

A lighting system with high color reproduction, high-quality optical components, and fully functional accessories, particularly suitable for cutting-edge life science research that requires dark fields, differential interference contrast, or high-performance fluorescence.

We can provide ideal microscopy imaging solutions for clinical laboratories and research laboratories.

Research microscope satisfying cutting-edge scientific exploration and clinical research
constantly explores the research needs in the fields of pathology, cytology and virology, and constantly optimizes and upgrades the Of0ll research upright microscope, so that it has nearly perfect optical performance and mechanical structure design. NiS Infinite Optical System has accurate imaging and strong chromatic aberration correction ability. With the illumination system with high color reproduction, high-quality optical components and fully functional accessories, this microscope is especially suitable for cutting-edge life science research that needs darkfield,diferential interference contrast or high-performance fluorescence. In addition, a variety of motorized and intelligent components and powerful imaging software can meet the needs of quick overview and detailed inspection of samples, easily complete repetitive work, greatly increase the simplicity of operation, increase operational comfort and maximize work efficiency. OF0ll can provide an ideal microscopic imaging solution for both clinical laboratory and scientific research laboratory.

Microscope frame
Optical system NIS infinite optical system
Nosepieces Manual sextuple nosepiece intelli gent set tuple nosepiece Motorized settuple nosepiece Motorized setuple nosepiece
Focusing Low-hand coaxial focusing mechanism (with limit and elastic adjusting ring), focusing range is 35mm, and fine adjustment grid value is lum. Low-hand motorized focusing mechanism,independent operation of left and right handwheels, three- speed adjustment, focusing range of 30mm,repetitive positioning accuracy of 0.1um, motorized escape and recovery
mechanism.
Transmitted illumination ·12V100w halogen lamp ·3W LED light source 3WLED, Transmitted source brightness motorized control, light intensity management function.
Monitor Microscope use status display screen Touch control screen
Eyepiece tube Binocular tube Depression angle: 30 degrees, pupillary distance adjustment range: 47-78 mm
Trinoculartube Eyepiece/port: 100/0, 20/80,0/100,depression angle: 30 degrees, pupillary distance adjustment range: 47-78 mm.
Ergonomictrinoculartube Eyepiece/port: 100/0, 20/80, 0/100,depression angle: 0-30 degrees, pupillary distance adjustmentrange:47-78 mm.
Eyepiece • SW10X (25) • SW10X (22) • EW12.5X (17.5) • WF15X (16) • WF20X (12)
Stage
Manual stage (Corning glass countertop) Manual stage (Sapphire glass countertop) Movingdistance:78(x)×32(Y)mm,1mm/grid,accuracy of0.1mm,movablehandle canberaisedand lowered by18mm,the tightness canbe adjusted,and the bumpguidemechanism is convenient,so it can beslicedwithone hand.
Motorized stage High-precision motorized XY stage (stroke: X axis, 125mm; Y-axis, 75mm), and the repeated positioning accuracy is ±1.5 μ m.
Condensing lens
Brightfield condenser Manual swing condenser Manual swing condenser motorized swing condenser Universal condenser (4X-100X)
Rotating disc condenser • quintuple phase contrast turntable condenser • quintuple DIC turntable condenser • Octagonal phase contrast DIC universal turntable condenser
Darkfield condenser • Darkfield condenser dry• Darkfield condenser Oil
FL-900 Epi-fluorescence illuminator
Epi-fluorescence illuminator With field diaphragm and aperture diaphragm, density plate, kohler illumination system and ultraviolet eye protection screen can be used.
Filter cube turret Sextuple epi-fluorescence cube turret (manual)
Epi-illumination light source • Osram mercury lamp HBO 10ow/2 • Metal halide light source 75W • Four-color LED fluorescent 5W
FL-900C/D Epi-fluorescence illuminator
Epi-fluorescence illuminator Recapture lighting with ultraviolet eye protection screen
Filter cube turret Sextuple epiluorescencecubeturretmanual/motoried)uptofourluorescntlensgroupscanbeialle.
Epi-illuminationlight source 3WLEDuorecntourceupocolorluorscntlihtouresaneistlldwthjuablebrhs.

About this supplier

Shanghai Mengshengsheng International Trade Co., Ltd. specializes in optical products, including industrial microscopes, cameras, and illumination systems. Established in 2018, the company offers rigorous quality control with 100% finished product testing and adheres to strict standards. It provides customized solutions for research and industrial applications, supported by a diverse range of shipping options and a one-year warranty.
