Specifications
External Display Support :
Yes
dimension :
Custom Sizes
illumination :
point light source
Dioptric Adjustment :
Binocular Diopter Adjustable
IP Rating :
IP20
Calibration :
Factory Calibrated
Display Type :
visual inspection
Place of Origin :
Shanghai, China
customized support :
ODM, OEM
warranty :
1 Year
Brand Name :
MSS
Price :
$330-360
Logo/graphic design :
no
Model Number :
MSS-M-CK
Focusing Distance :
The magnification is based on the objective lens
Focus Type :
Manual Coaxial Coarse & Fine Focus
MOQ :
1
type :
Portable metallographic microscope
camera resolution :
Other
Description
Product descriptions from the supplier

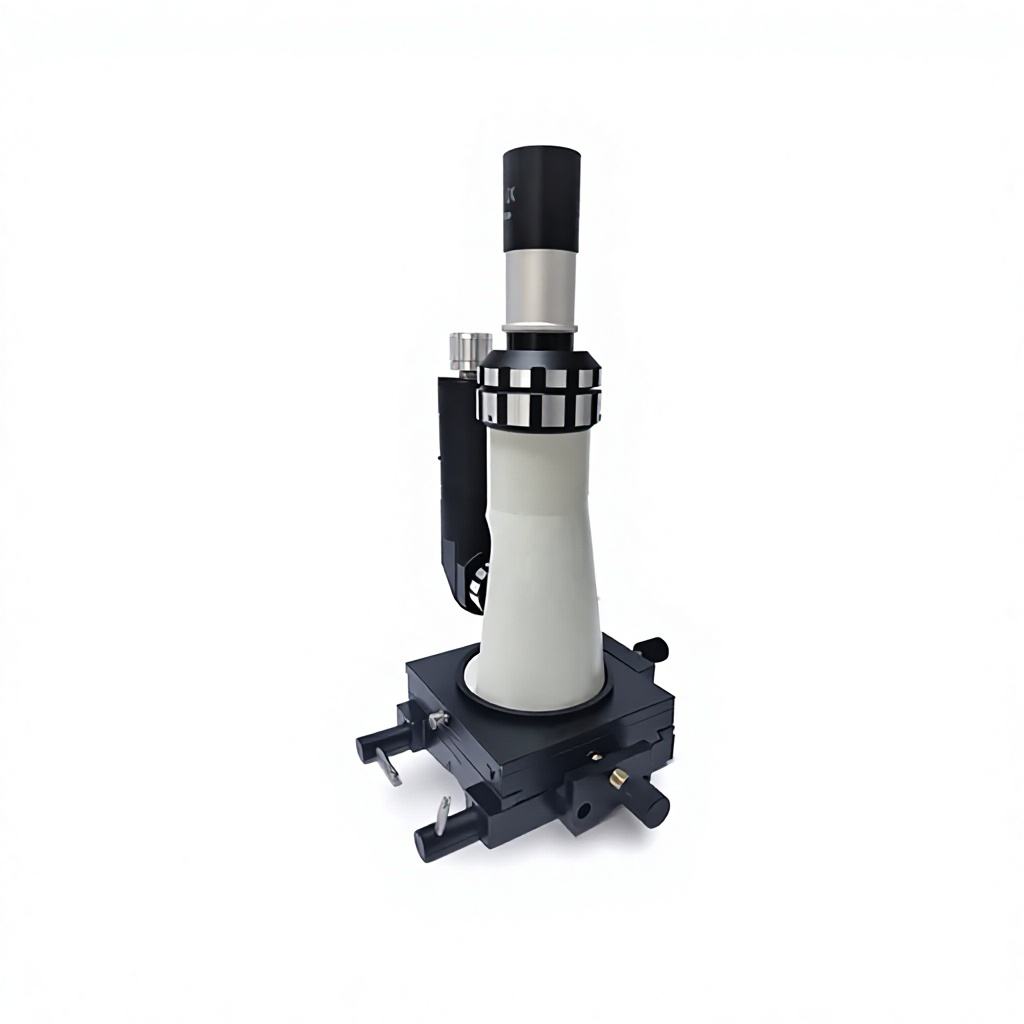

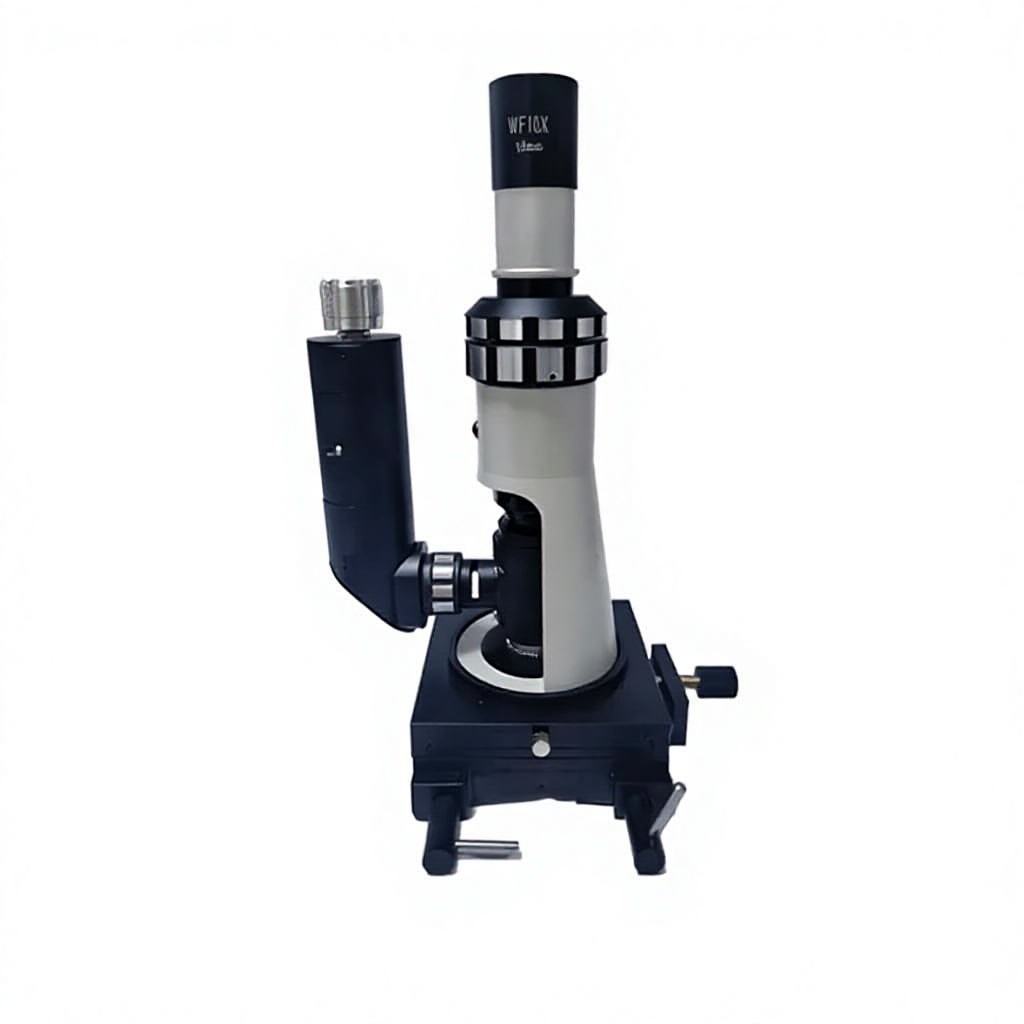

A microscope suitable for metallographic examination and failure analysis of various large-scale workpieces on-site.

Easy to carry, rechargeable light source, suitable for use in any scenario, with a wide range of application scenarios.

The base is equipped with a magnetic suction base, which can be directly attached to the workpiece for on-site metallographic examination of the observed tissue.

OEM Factory Magnetic Base Portable Metallographic Microscope Rechargeable LED for Large Workpiece Field MSS-M-CK

eyepiece 10X / 18mm 23.3
objective lens 10X / 40X
Overall magnification 100X, 400X
adapter C-mount adapter 1X (for C-mount camera connection)
mechanical tube length 160 mm
focusing Stroke 36mm
simple polarized light Polarizer and Analyzer
light source Coaxial lighting, rechargeable LED, dimming possible
size 230 mm high x 110 mm wide x 60 mm thick
weight 0.75 kg
packing case portable aluminum case
Dependents ·Eyepiece lens (10X) •Objective lens (10X, 40X)
