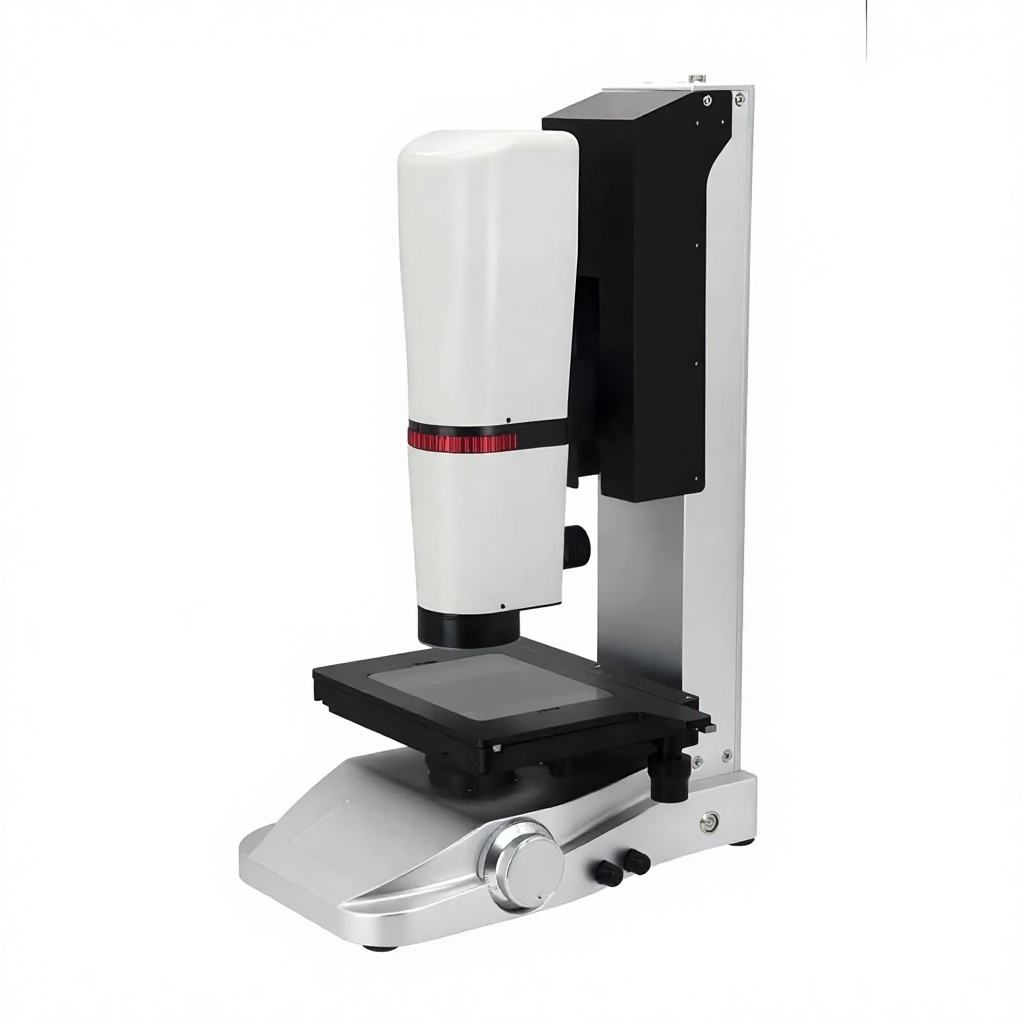

Supplier 3D Super DOF Microscope High Resolution Image Acquisition Precision Electronic Control for Research Lab MSS-M-ZT911
Supplier 3D Super DOF Microscope High Resolution Image Acquisition Precision Electronic Control for Research Lab MSS-M-ZT911
Supplier 3D Super DOF Microscope High Resolution Image Acquisition Precision Electronic Control for Research Lab MSS-M-ZT911
Supplier 3D Super DOF Microscope High Resolution Image Acquisition Precision Electronic Control for Research Lab MSS-M-ZT911
Supplier 3D Super DOF Microscope High Resolution Image Acquisition Precision Electronic Control for Research Lab MSS-M-ZT911
Supplier 3D Super DOF Microscope High Resolution Image Acquisition Precision Electronic Control for Research Lab MSS-M-ZT911
Supplier 3D Super DOF Microscope High Resolution Image Acquisition Precision Electronic Control for Research Lab MSS-M-ZT911
Supplier 3D Super DOF Microscope High Resolution Image Acquisition Precision Electronic Control for Research Lab MSS-M-ZT911
Supplier 3D Super DOF Microscope High Resolution Image Acquisition Precision Electronic Control for Research Lab MSS-M-ZT911
Supplier 3D Super DOF Microscope High Resolution Image Acquisition Precision Electronic Control for Research Lab MSS-M-ZT911
Supplier 3D Super DOF Microscope High Resolution Image Acquisition Precision Electronic Control for Research Lab MSS-M-ZT911
Supplier 3D Super DOF Microscope High Resolution Image Acquisition Precision Electronic Control for Research Lab MSS-M-ZT911
Specifications
External Display Support :
Yes
dimension :
Custom Sizes
illumination :
LED
Dioptric Adjustment :
other
IP Rating :
IP20
Price :
$7,500-7,900
MOQ :
1
Calibration :
Factory Calibrated
Display Type :
LCD Screen Display
customized support :
ODM, OEM
warranty :
1 Year
Logo/graphic design :
no
Place of Origin :
Shanghai, China
Brand Name :
MSS
Focus Type :
Auto Focus
type :
3D Super Depth of Field Microscope
Model Number :
MSS-M-ZT911
camera resolution :
Other
Focusing Distance :
The magnification is based on the objective lens
Description
Product descriptions from the supplier

Powerful Super Depth of Field Synthesis Algorithm

Rich measurement functions of various types

High quality and high-resolution image acquisition

Easy to operate humanized design

Rich variety of light sources to meet different sample requirements

Ultra high precision electric control system

Supplier 3D Super DOF Microscope High Resolution Image Acquisition Precision Electronic Control for Research Lab MSS-M-ZT911

Microscopic subject
Magnification 30X~6000X
Z-axis travel 40mm
Lighting method Transmitting light, coaxial light, circular light
Lens zoom mode Manual
Lens focusing method manual/automatic

Camera parameters
CMOS sensor 1/1.8" 800M Pix (3840X2160)
Frame rate 30HZ/S
Resolution 1920*1082
Electric Z-axis
Motor control accuracy 0.3μm
Linear scale accuracy 1μm
Objective lens
Low magnification 2X
High magnification 5X10X20X50X

Microscope Functional Parameters
Brightness adjustment
Yes, manual adjustment
Color adjustment
Yes,adjustable from level 1 to 100
Sharpening adjustment
Yes,adjustable from level 1 to 100
HDR adjustment
Yes, adjustable from level 1 to 3
Contrast adjustment
Yes,adjustable from level 1 to 100
3D display
Yes
Report output to EXCEL
Yes
2D measurement
Distance/Angle/Radius/Area/
3D measurement
Yes

Environmental Requirements
Operating Temperature 0~40℃
Operating Humidity 20to80%RH(Nocondensation)
Input power 24V/6A
