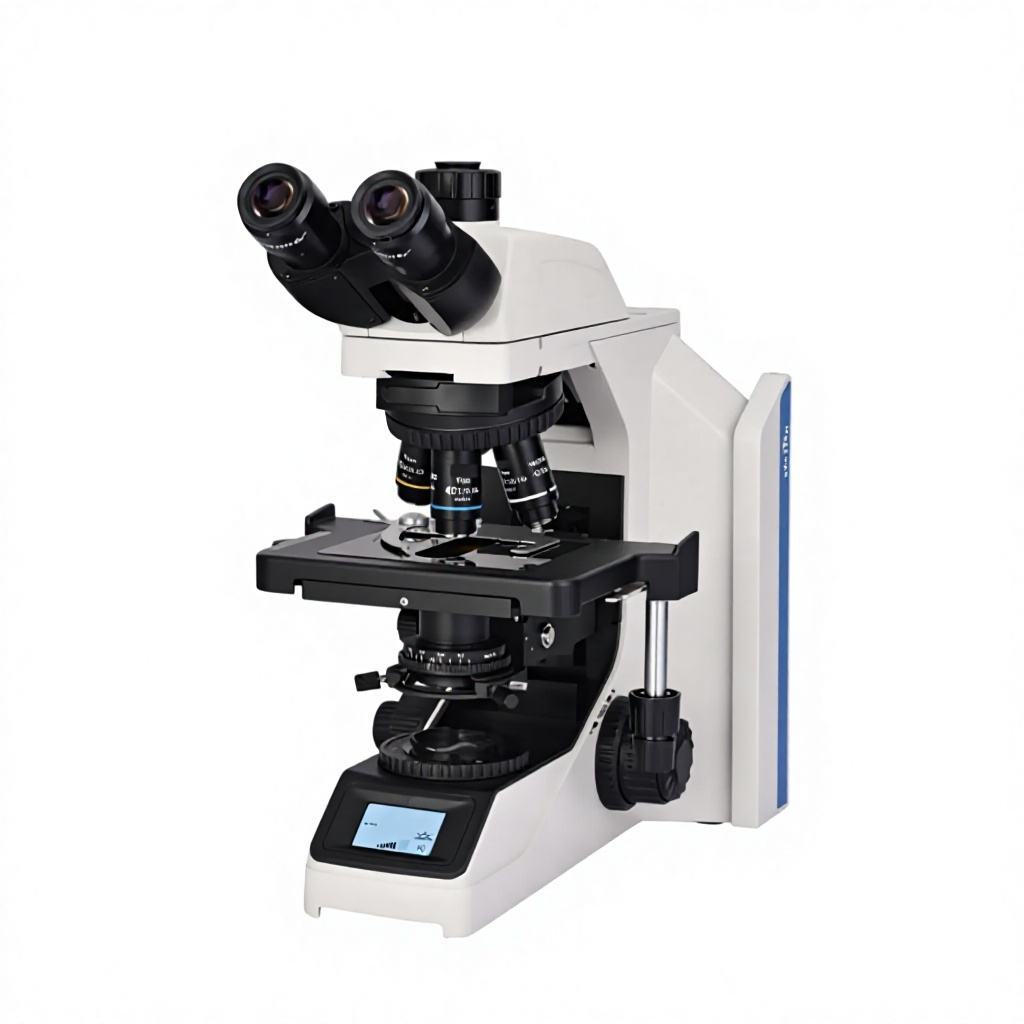

Supplier NiS Infinity Biological Microscope Universal Condenser for Medical Hospital Inspection MSS-M-OF811
Supplier NiS Infinity Biological Microscope Universal Condenser for Medical Hospital Inspection MSS-M-OF811
Supplier NiS Infinity Biological Microscope Universal Condenser for Medical Hospital Inspection MSS-M-OF811
Supplier NiS Infinity Biological Microscope Universal Condenser for Medical Hospital Inspection MSS-M-OF811
Supplier NiS Infinity Biological Microscope Universal Condenser for Medical Hospital Inspection MSS-M-OF811
Supplier NiS Infinity Biological Microscope Universal Condenser for Medical Hospital Inspection MSS-M-OF811
Supplier NiS Infinity Biological Microscope Universal Condenser for Medical Hospital Inspection MSS-M-OF811
Supplier NiS Infinity Biological Microscope Universal Condenser for Medical Hospital Inspection MSS-M-OF811
Supplier NiS Infinity Biological Microscope Universal Condenser for Medical Hospital Inspection MSS-M-OF811
Supplier NiS Infinity Biological Microscope Universal Condenser for Medical Hospital Inspection MSS-M-OF811
Supplier NiS Infinity Biological Microscope Universal Condenser for Medical Hospital Inspection MSS-M-OF811
Supplier NiS Infinity Biological Microscope Universal Condenser for Medical Hospital Inspection MSS-M-OF811
Specifications
External Display Support :
Yes
MOQ :
1
dimension :
Custom Size
illumination :
Reflected & Transmitted LED Illumination
Calibration :
Factory Calibrated
Display Type :
Optical Eyepiece & Digital Display
Logo/graphic design :
no
Place of Origin :
Shanghai, China
Price :
$1,600-1,799
Model Number :
MSS-M-OF811
customized support :
ODM, OEM
warranty :
1 Year
Dioptric Adjustment :
Binocular Diopter Adjustable
IP Rating :
IP20
Focus Type :
Manual Coaxial Coarse & Fine Focus
type :
Biological Microscope
Brand Name :
MSS
camera resolution :
4K/1080P HD (Optional)
Focusing Distance :
Based on the objective magnification
Description
Product descriptions from the supplier

The optical system has been upgraded, and the NiS infinity optical system provides excellent scalability for this microscope.

High numerical aperture (NA) planar achromatic objectives and various optical components using multi-layer coating technology can ensure image quality.

Universal concentrator, which can be used as a stopper to set the upper limit of the height of the loading platform, ensures that beginners can use it smoothly.

The best choice for scientific research experimenters and medical inspectors to observe under a microscope.


Optical system Infinity optical system
Eyepiece(F.O.V., mm) 10X/22mm,with diopter adjustment-5 ~ +5, Dia.φ30
Viewing tubes
Inclination angle 30°,Seidentopf binocular head with 360 degree rotation,pupilary distance:47-78mm
Inclination angle 30°,Seidentopf trinocular head, pupilary distance:47-78mm,Eyepiece/Port R: T=50:50
Inclination angle 30°,Seidentopf trinocular head,pupilary distance:47-78mm,Eyepiece/Port R:T=100:0/100:0
Inclination angle 30°,digital viewing head,pupilary distance:47-78mm
Inclination angle 30°,wireless WIFI digital viewing head,pupilary distance:47-78mm
Objective

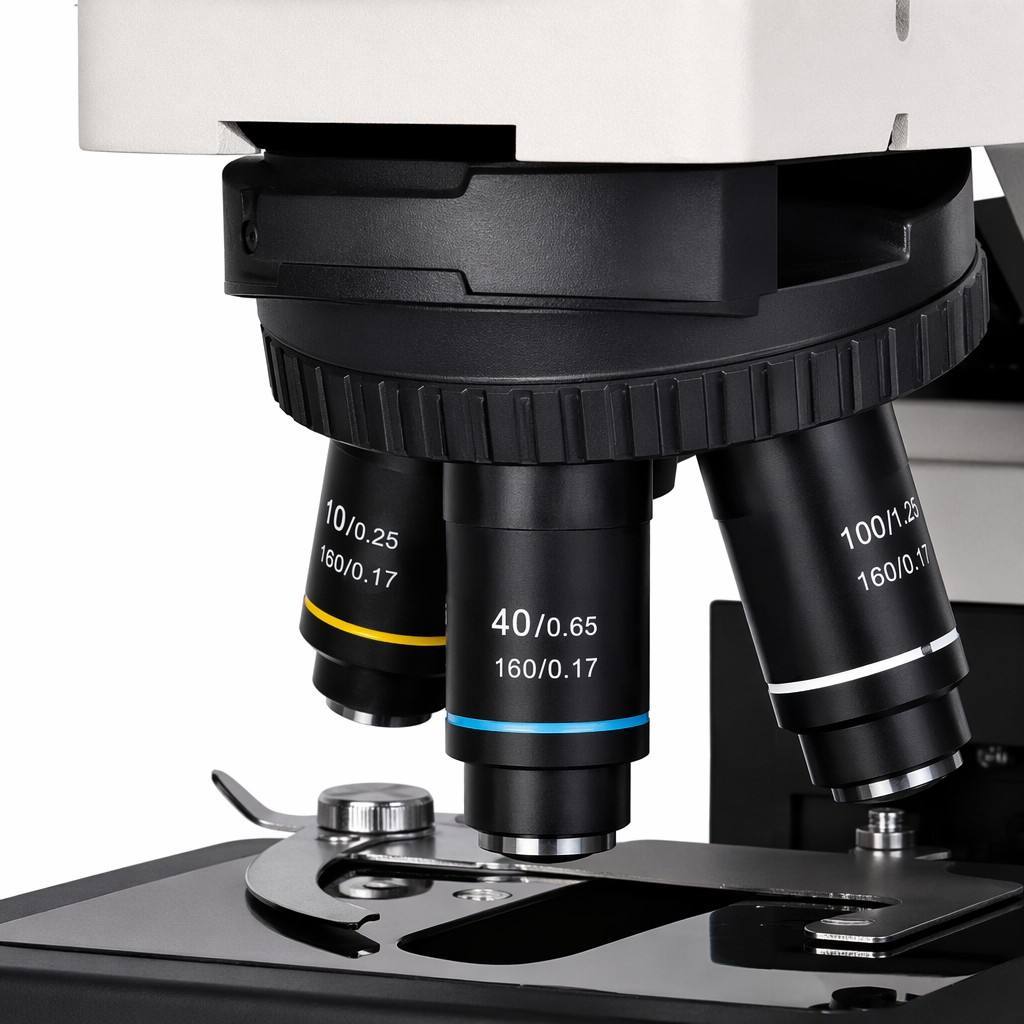

Infinite plan achromatic objective(4X,10X,20X,40X,100X)
Infinite plan phase contrast objective(10X,20X,40X,100X)
Infinite plan S-Apo fluorescence objective(4X,10X,20X,40 X,100X)
Nosepiece Quintuple coding nosepiece
Stage Rackless stage 235X150mm,moving range 78mmX54mm,hard oxidized stage, can be replaced bytempered glass stage or sapphire stage
Condenser
Abbe condenser(NA0.9),with Iris diaphragm
Swing-out achromatic condensor(NA0.9/0.25),with Iris diaphragm
NA1.25 sliding-in turret phase contrast kit
NA1.3-1.26 oil dark filed condenser
NA0.7-0.9 dry dark filed condenser
Focusing system Coaxial coarse and fine adjustment,coarse stroke 28mm,fine precision 0.00 1mm
IIIumination
Transmission 3W color and temperature adjustable,LED (LCD display magnification, time sleeping,brightness indication and lock,etc.)
Fluorescence LED illumination, 3 wave 4-position fluorescent turrent, with Iris diaphragm
Camera attachment 1X photo attachment, 0.5X photo attachment, adjustable focsing
Phase contrast Simple polarization set


About this supplier

Shanghai Mengshengsheng International Trade Co., Ltd. specializes in optical products, including industrial microscopes, cameras, and illumination systems. The company offers rigorous quality control with 100% finished product testing and adheres to strict standards. It provides customized solutions and diverse shipping options, ensuring reliable service and product quality.
