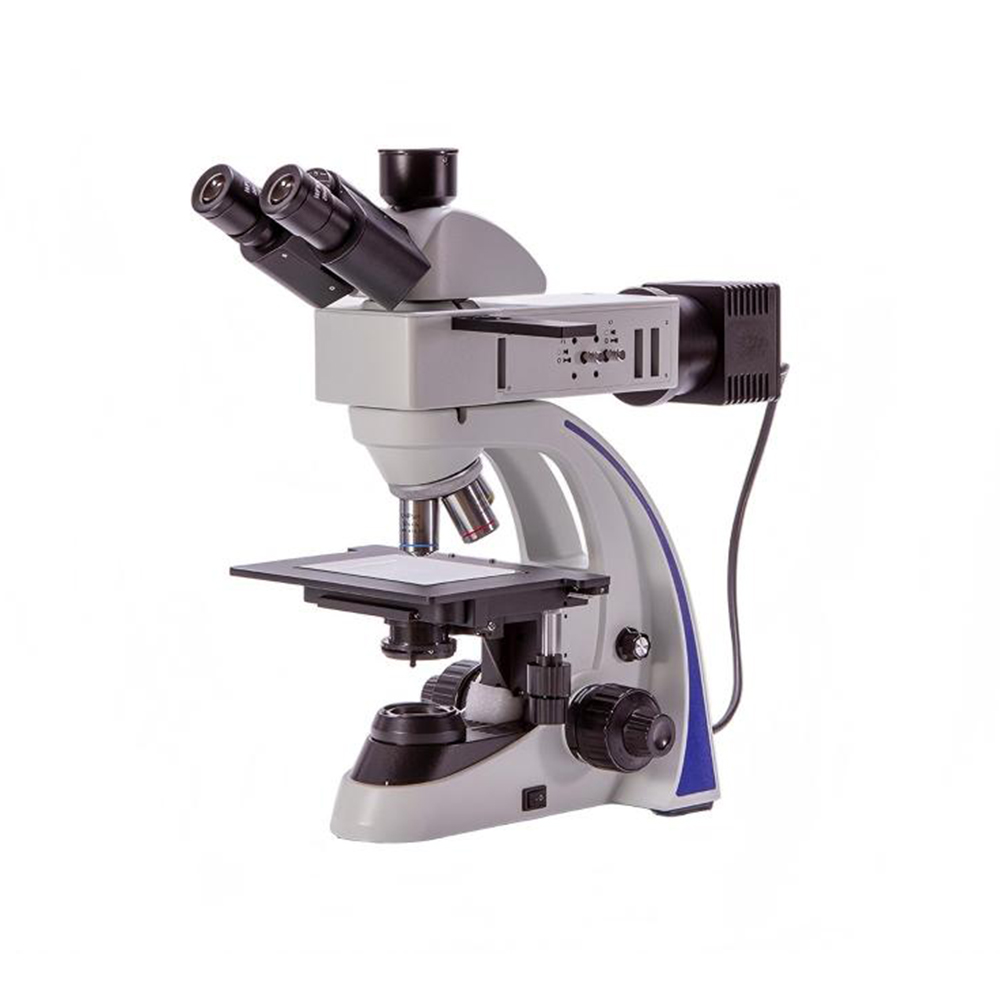

Optical System Infinity color corrected optical system
Viewing Head 30°inclined gemel trinocular head, interpupillary distance: 54mm~75mm, diopter ±5 adjustable, splitting ratio R:T=50:50, with 0.5x C-mount
Eyepiece High eye-point wide field eyepiece WF10x/20mm
Objectives Infinity large working distance plan achromatic metallurgical objective 5X Na0.15 W.D.12
Infinity large working distance plan achromatic metallurgical objective 10X Na0.3 W.D.16
Infinity large working distance plan achromatic metallurgical objective 20X Na0.4 W.D.12
Infinity large working distance plan achromatic metallurgical objective 50X Na0.55 W.D.9.15
Infinity large working distance plan achromatic metallurgical objective 100X Na0.8 W.D.2.1(optional)
Nosepiece reversed quadruple ncosepiece
Focus Adjustment Reflected frame with metal plate, coaxial focus system with tension adjustment and up-limited device, coarse range: 23mm, fine precision: 0.002mm.
Transmitted & Reflected frame with glass plate , coaxial focus system with tension adjustment and up-limited device, coarse range: 23mm, fine precision: 0.002mm.
Stage Double layer mechanical stage with X/Y coaxial adjustment, size: 190mmX150mm, moving range: 76mmX50mm.
Metal plate for transmitted frame; glass plate for transmitted & reflected frame.
Reflected illumination Reflected lamp-house with single 5W LED, warm white color. Koehler illuminator with center adjustable field and aperture diaphragm.External wide-range adapter, input voltage 100V-240V_AC50/60Hz, output voltage DC12V2A.
Transmitted illumination Single 3W LED, white color.(optional)
Other accessories N.A.1.25 ABBE condenser for transmitted frame, with center preset aperture iris diaphragm.
Polariser and analyzer. Analyzer is adjustable with 360°rotation.
Digital camera adapter:0.35X, 0.5X(standard), 1X focusing C-mount(optional)
Interference filter for reflected light:blue filter, green filter and white balance filter(optional)
