8 Pin Cat6A RJ45 Connector For Secure Connections IP20 Protected TPU Ethernet Cable
8 Pin Cat6A RJ45 Connector For Secure Connections IP20 Protected TPU Ethernet Cable
8 Pin Cat6A RJ45 Connector For Secure Connections IP20 Protected TPU Ethernet Cable
8 Pin Cat6A RJ45 Connector For Secure Connections IP20 Protected TPU Ethernet Cable
Specifications
Brand Name :
KRONZ
Model Number :
RJ45S-2/E60K
Place of Origin :
Guangdong, China
Certification :
CE
MOQ :
80
Price :
Negotiable
Packaging Details :
Polybag packing
Delivery Time :
5-8 working days
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Pin :
8
Ambient temperature :
-25~+85℃
Pollution degree :
3
Mating cycles :
>100
Contact suface material :
Brass,gold-plated
Contact carrier material :
PA,black
Degree of protection :
IP20
Material of grip body :
TPU,black
Description

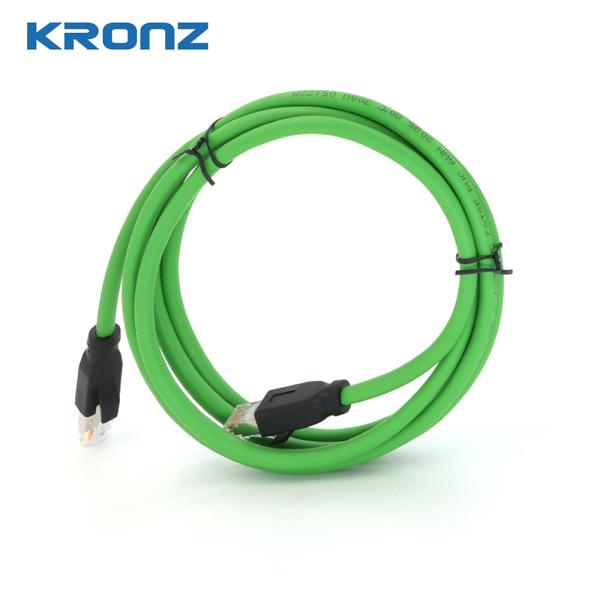

An RJ45 Ethernet connector with pre-molded cable is a factory-assembled, ready-to-deploy networking solution that combines a standard 8P8C modular plug (RJ45) with a permanently attached and sealed Ethernet cable. Designed for reliability and quick installation, it eliminates field termination work.


8 Pin Cat6A RJ45 Connector For Secure Connections IP20 Protected TPU Ethernet Cable


Technical Data


Thread type RJ45
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP20


Pin assignment Wire color PIN Rated current Voltage Wire gauge Cable outlet Length Model No.
8 Pin Cat6A RJ45 Connector For Secure Connections IP20 Protected TPU Ethernet Cable

1 = WH/OR
2 = OR
3 = WH/GN

4 = BU

5 = WH/BU
6 = GN

7 = WH/BN

8 = BN

 8 1.5A 48V 4×2×0.16,shielded
(4×2×26AWG)
Blueish green,
PVC,
OD=6.6		 Straight 2M RJ45S-2/E60K


Applications


The KRONZ RJ45 Connector can be used in a wide range of scenarios and occasions. These connectors are commonly used to connect Ethernet cables in networking applications. They are also ideal for use in telecommunications applications, including telephone systems and data networks. In addition, the RJ45 Connector is suitable for use in industrial automation and control systems, where reliable connectivity is essential.

The KRONZ RJ45 Connector is available in a range of different configurations, including RJ45 Female Connector, RJ45 Male Connector, and RJ45 Female to Female Connector. This makes it easy to find the right configuration for your specific application needs. The connector is also available with different pin configurations, including 4 and 8 pins, to ensure compatibility with a wide range of devices.

8 Pin Cat6A RJ45 Connector For Secure Connections IP20 Protected TPU Ethernet Cable

8 Pin Cat6A RJ45 Connector For Secure Connections IP20 Protected TPU Ethernet Cable
