Field Wireable RJ45 Connectors Angled 4 Pin IP20 Rj45 Connector Cat5e
Field Wireable RJ45 Connectors Angled 4 Pin IP20 Rj45 Connector Cat5e
Field Wireable RJ45 Connectors Angled 4 Pin IP20 Rj45 Connector Cat5e
Field Wireable RJ45 Connectors Angled 4 Pin IP20 Rj45 Connector Cat5e
Specifications
Brand Name :
KRONZ
Model Number :
RJ45S/C41
Certification :
CE
Place of Origin :
Chiina
MOQ :
50 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Type :
RJ45 connectors
Color :
Siliver
Contact method :
IDC
IP rate :
IP20
Pin assignment :
8 PIN
Transmission characteristics :
Cat5
Data rate :
≥ 10/100 Mbit/s
Ambient temperature :
-25~+85℃
Description

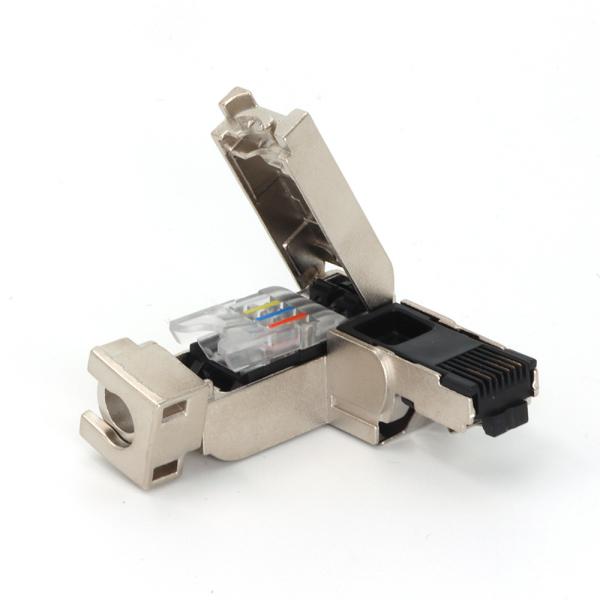

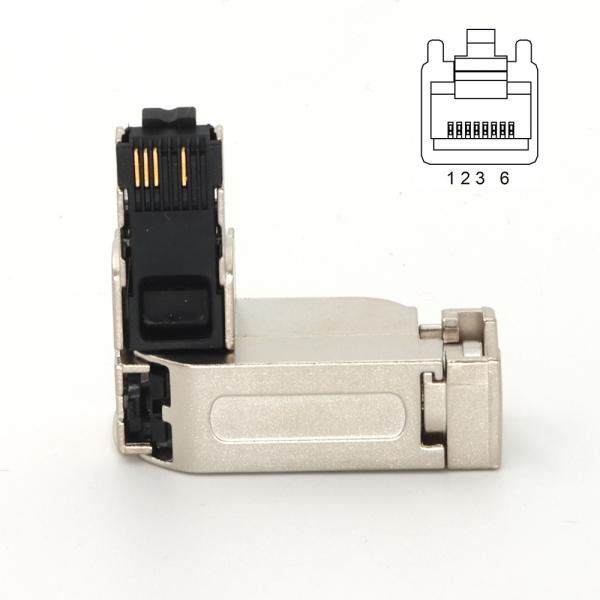

An RJ45 Field-Wireable Connector, 90° Angled, Full Metal is a heavy-duty, modular Ethernet connector designed for harsh industrial environments where durability, space optimization, and on-site termination are critical.


Field Wireable RJ45 Connectors Angled 4 Pin IP20 Rj45 Connector Cat5e

Technical Data

Pin assignment 4 PIN
Contact nut material Zinc alloy, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material Zinc alloy, nickle-plated
Contact method IDC
Degree of protection IP20
Transmission characteristics Cat5
Data rate ≥ 10/100 Mbit/s
Power transmission POE,POE+
Ambient temperature -25~+85℃
Mating cycles ≥10


Pin assignment Type Rated current Voltage Wire gauge Cable outlet Model No.
Field Wireable RJ45 Connectors Angled 4 Pin IP20 Rj45 Connector Cat5e RJ45 1.5A 45V 0.14~0.34 mm²
26~22 AWG
cable diameter: 6.5mm		 Straight RJ45S/C41
