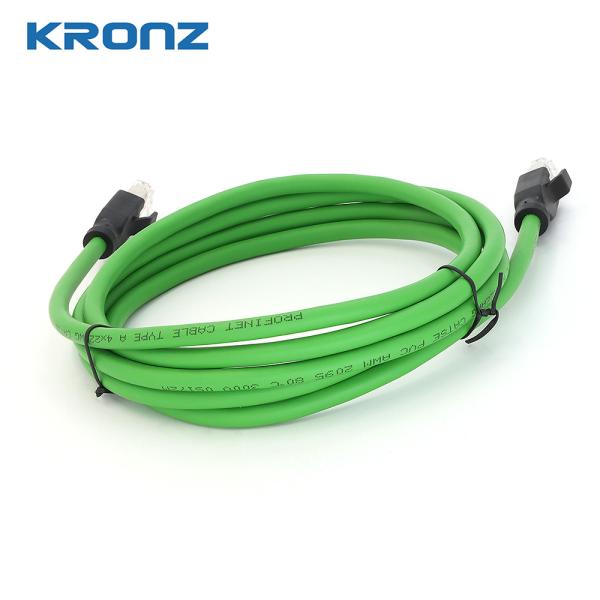

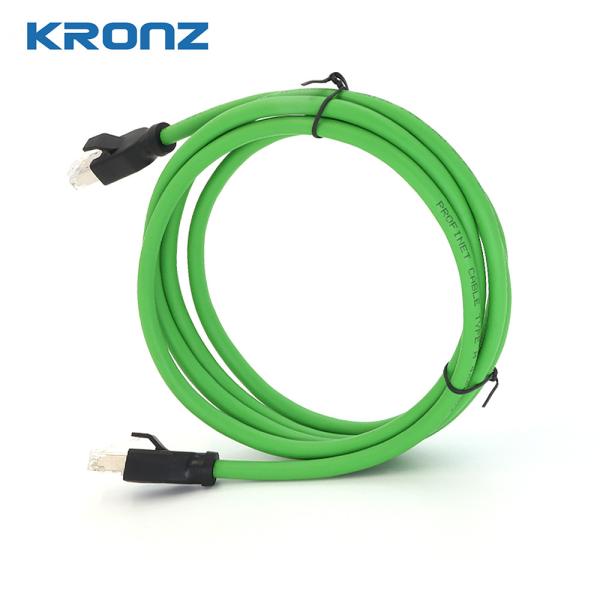

Cat5e Shielded Rj45 Connectors For Stable Data Transmission Gold Plated RJ45 Crystal Head
Cat5e Shielded Rj45 Connectors For Stable Data Transmission Gold Plated RJ45 Crystal Head
Cat5e Shielded Rj45 Connectors For Stable Data Transmission Gold Plated RJ45 Crystal Head
Cat5e Shielded Rj45 Connectors For Stable Data Transmission Gold Plated RJ45 Crystal Head
Specifications
Brand Name :
KRONZ
Model Number :
RJ45S-5/E10K
Place of Origin :
Guangdong, China
Certification :
CE
MOQ :
80
Price :
Negotiable
Packaging Details :
Polybag packing
Delivery Time :
5-8 working days
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Rated current :
1.5A
Wire gauge :
24AWG, 26AWG
Insulation resistance :
≥100MΩ
Cable outlet :
Straight
Contact suface material :
Brass,gold-plated
Length :
Customized
Ambient temperature :
-25~+85℃
Pin :
4, 8
Description

The RJ45 Connector Modular Plug is constructed with a high-quality brass contact surface material that is gold-plated to ensure maximum conductivity and corrosion resistance. This ensures that your data signals are transmitted accurately and efficiently, providing you with a stable and uninterrupted network connection.

The contact carrier material of the RJ45 Connector Modular Plug is made of PA, black, which is a durable and strong material that provides excellent support for the brass contacts. The contact carrier material is also resistant to wear and tear, so you can be sure that your RJ45 Connector will last for a long time, even with frequent use.

Cat5e Shielded Rj45 Connectors For Stable Data Transmission Gold Plated RJ45 Crystal Head


Technical Data


Thread type RJ45
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP20


Pin assignment Wire color PIN Rated current Voltage Wire gauge Cable outlet Length Model No.
Cat5e Shielded Rj45 Connectors For Stable Data Transmission Gold Plated RJ45 Crystal Head 1 = YE
2 = OR
3 = WH
6 = BU		 4PIN 1.5A 48V 2×2×0.25,shielded
(2×2×24AWG)
Blueish green,
PVC,
OD=6.5		 Straight 5M RJ45S-5/E10K


Cat5e Shielded Rj45 Connectors For Stable Data Transmission Gold Plated RJ45 Crystal Head

Cat5e Shielded Rj45 Connectors For Stable Data Transmission Gold Plated RJ45 Crystal Head

Cat5e Shielded Rj45 Connectors For Stable Data Transmission Gold Plated RJ45 Crystal Head
