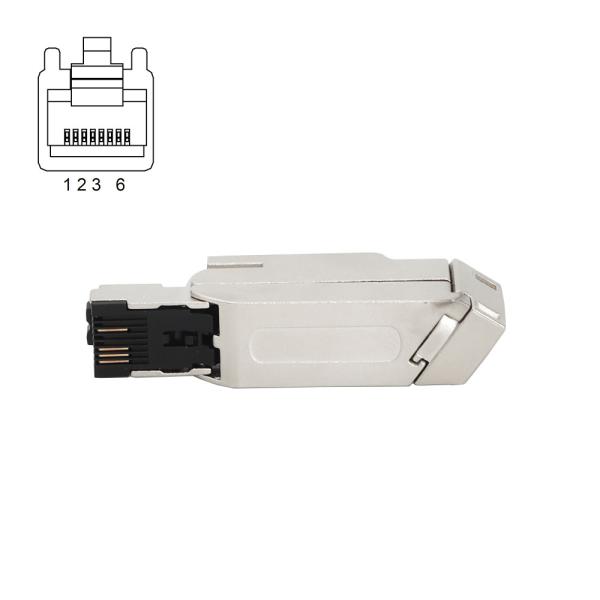

IP20 Fast Connect Field Wireable RJ45 Connector Plug 4 Pin 100MBit/S Metal Housing
IP20 Fast Connect Field Wireable RJ45 Connector Plug 4 Pin 100MBit/S Metal Housing
IP20 Fast Connect Field Wireable RJ45 Connector Plug 4 Pin 100MBit/S Metal Housing
IP20 Fast Connect Field Wireable RJ45 Connector Plug 4 Pin 100MBit/S Metal Housing
Specifications
Model Number :
RJ45S/C40/O
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Brand Name :
KRONZ
Certification :
CE
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Product Name :
RJ45 Field-wirable Assembly Connector
Color :
Siliver
Material :
Brass,gold-plated
IP rate :
IP20
Contact Method :
IDC
Date Rate :
≥ 10/100 Mbit/s
Power Transmission :
POE,POE+
Ambient Temperature :
-25~+85℃
Description

The Fast Connect RJ45 Connector (145 Series, 4-Pin, 100Mbit/s) is a ruggedized, industrial-grade Ethernet plug designed for high-performance data transmission in demanding environments. It combines tool-less termination, robust metal housing, and optimized pin configuration for Fast Ethernet (10/100Mbit/s) applications where durability and quick installation are critical.

IP20 Fast Connect Field Wireable RJ45 Connector Plug 4 Pin 100MBit/S Metal Housing

Technical Data

Pin assignment 4 PIN
Contact nut material Zinc alloy, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material Zinc alloy, nickle-plated
Contact method IDC
Degree of protection IP20
Transmission characteristics ≥Cat5
Data rate ≥ 10/100 Mbit/s
Power transmission POE,POE+
Ambient temperature -20~+70℃
Mating cycles ≥10


Pin assignment Type Rated current Voltage Wire gauge Cable outlet Model No.
IP20 Fast Connect Field Wireable RJ45 Connector Plug 4 Pin 100MBit/S Metal Housing RJ45 1.5A 45V 0.14~0.34 mm²
26~22 AWG
cable diameter: 6.5mm		 Straight RJ45S/C40/O
