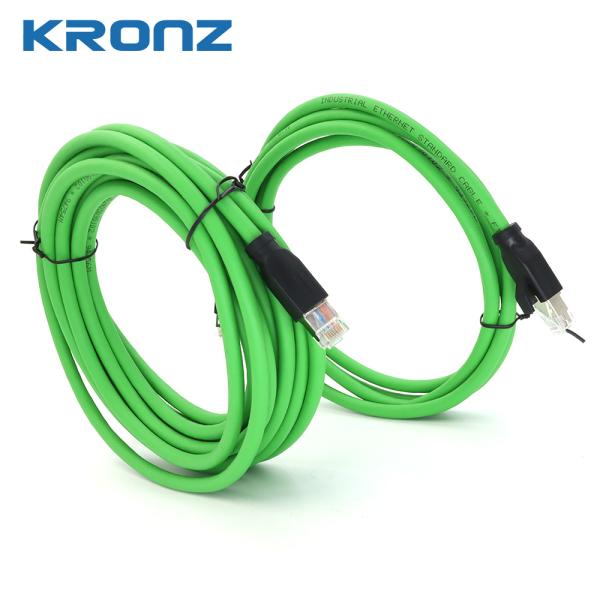

Customized 1.5A Cat6e Rj45 Connectors With Low Contact Resistance
Customized 1.5A Cat6e Rj45 Connectors With Low Contact Resistance
Customized 1.5A Cat6e Rj45 Connectors With Low Contact Resistance
Customized 1.5A Cat6e Rj45 Connectors With Low Contact Resistance
Specifications
Brand Name :
KRONZ
Model Number :
RJ45S-15/E60K
Place of Origin :
Guangdong, China
Certification :
CE
MOQ :
80
Price :
Negotiable
Packaging Details :
Polybag packing
Delivery Time :
5-8 working days
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Voltage :
48V
Pollution degree :
3
Material of grip body :
TPU,black
Length :
Customized
Contact nut material :
Brass,nickel-plated
Contact suface material :
Brass,gold-plated
Rated current :
1.5A
Mating cycles :
>100
Description

Product Description

Whether you're looking for an RJ45 Connector Cat6 or an Ethernet RJ45 Connector, this product is the perfect choice. It features a thread type of RJ45, which is the standard connector used for Ethernet networking. The contact carrier material is made from PA, black, which is a high-strength and durable material that can withstand daily use and abuse.


Customized 1.5A Cat6e Rj45 Connectors With Low Contact Resistance

Technical Data


Thread type RJ45
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP20


Pin assignment Wire color PIN Rated current Voltage Wire gauge Cable outlet Length Model No.
Customized 1.5A Cat6e Rj45 Connectors With Low Contact Resistance

1 = WH/OR
2 = OR
3 = WH/GN

4 = BU

5 = WH/BU
6 = GN

7 = WH/BN

8 = BN

 8 1.5A 48V 4×2×0.16,shielded
(4×2×26AWG)
Blueish green,
PVC,
OD=6.6		 Straight 15M RJ45S-15/E60K


Application


The KRONZ RJ45 connector has a degree of protection rating of IP20, making it suitable for use in indoor environments. Its contact carrier material is made of PA, black, which ensures durability and longevity. It has a rated current of 1.5A and can handle a voltage of up to 48V.

The KRONZ RJ45 connector has a minimum order quantity of 80 and is CE certified, ensuring its quality and safety. Its packaging details include polybag packing, and it has a delivery time of 5-8 working days.

With a mating cycle of over 100, the KRONZ RJ45 connector is built to last. Its high-quality construction ensures that it can withstand the rigors of daily use and harsh environmental conditions.

Overall, the KRONZ RJ45 connector is an essential tool for anyone who needs to connect ethernet cables quickly and reliably. Its versatility, durability, and high-quality construction make it a must-have for any networking setup.


Customized 1.5A Cat6e Rj45 Connectors With Low Contact Resistance

Customized 1.5A Cat6e Rj45 Connectors With Low Contact Resistance
