Specifications
Certification :
ISO,CE
Packaging Details :
Wooden Box
Supply Ability :
30 Set/Sets per Month
Price :
100
Brand Name :
XioFiTec/Hanyan
Model Number :
XioFiTec/Hanyan
condition :
New
machine type :
seam welder
place of origin :
Sichuan, China
brand name :
Hanyan Technology
warranty :
1 Year
weight (kg) :
1000
voltage :
380V
current :
60A
rated capacity :
9 Kw
rated duty cycle :
60%
dimensions :
2040x1005x1740mm
usage :
seam welding
Welding process :
TIG/MIG/MAG/PAW/SAW/RESISTANCE etc.
Welding length :
0-3000mm
Welding thickness :
0.4-6.0mm
Welding diameter :
80-800mm
Welding Material :
stainless steel, carbon steel, galvanized steel, aluminum, copper etc
Weldable object :
tubes, flat sheets, rectangular pipe, cylinders, cones, sinks, tank
After Warranty Service :
Field maintenance and repair service
Local Service Location :
Russia
After-sales Service Provided :
Field installation, commissioning and training
Applicable Industries :
Construction works
Showroom Location :
Russia
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Gearbox, motor, Gear
Key Selling Points :
Eco-Friendly
Port :
Any Port in China
Description
Product Description

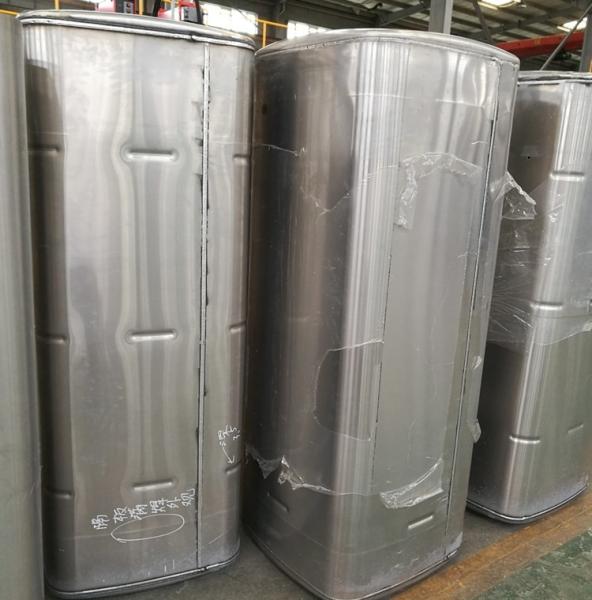

• Usage: square tube seam welding

• Weldable material: stainless steel, carbon steel, galvanized steel, aluminum, copper etc.

• Weldable objects: tubes, flat sheets, rectangular pipe, cylinders, cones, sinks, tank shells etc.

• Welding Mode: TIG/MIG/MAG/PAW/SAW/RESISTANCE etc

• Welding length: 0-3000mm

• Welding diameter: 80-800mm

• Welding thickness: 0.4-6.0mm

Model

Max. Welding Length(mm)

Welding Thickness(mm)

Applicable Diameter(mm)

ZF-500

500

0.5-3.0

75-750

ZF-1000

1000

0.5-6.0

115-700

ZF-1500

1500

0.5-6.0

150-700

ZF-2000

2000

0.5-6.0

180-700

ZF-2500

2500

0.5-6.0

200-700

ZF-3000

3000

0.5-6.0

270-700

• Customized service: lengthening, heightening and others

Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine

Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine

Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine

Customized service: lengthening, heightening and others

ZF Series

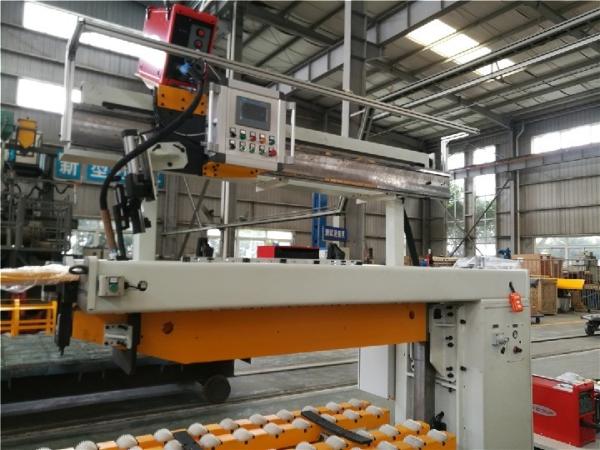

HANYAN ZF Series external seam welders are designed for external welds on cylinders and flat sheets
Standard
Precision
Extra-Precision
Copper tip clamping fingers
Copper tipped, aluminum hold down fingers are standard on all HANYAN seam Welders. The copper tipped hold down fingers assist in the chilling the weld joint. Copper tooling absorbs and dissipates heat through the use of additional thermal mass, operating under pressure against work piece.

Back-up insert

Inserts are quickly and easily interchanged into the backup mandrel to accommodate a variety of material types and thicknesses. Copper inserts dissipate heat generated during the welding process.
Additional inserts are available to cover a wide range of material types and thicknesses. Inserts are available with or without gas back-up capabilities.

Back-up Mandrel

Designed to support the part being welded and hold the back-up inserts.
Droop mandrels are available to ease loading and unloading of parts.
Optional water cooled mandrels are available.

Fixed and removable riser options
Seam welder base can be modified to accommodate larger diameter parts.

Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine
Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine
Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine
Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine
Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine
Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine
