Specifications
Certification :
CE/ISO9001
Packaging Details :
Wooden Box
Supply Ability :
10 Set/Sets per Month
Price :
100
Brand Name :
XioFiTec/Hanyan
Model Number :
XioFiTec/Hanyan
condition :
New
machine type :
Welding Manipulator
place of origin :
China
brand name :
Hanyan Technology
warranty :
1 Year
weight (kg) :
1200
voltage :
AC 220V
current :
500A(Max. weld)
rated capacity :
0.5KVA
rated duty cycle :
100%
dimensions :
2000x1200x2150mm
usage :
Automate weld
After-sales Service Provided :
Engineers available to service machinery overseas
Type :
Other
workpiece length :
≤1000mm
workpiece diameter :
115-700mm
workpiece thickness :
0.5-6.0mm
welding speed :
100-1800mm/min.
welding process :
TIG/MIG/MAG/PAW/SAW
control :
touch screen(HMI)
Weight :
1200kg
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Gear
Key Selling Points :
High Safety Level
Port :
Shanghai/Chongqing
Description

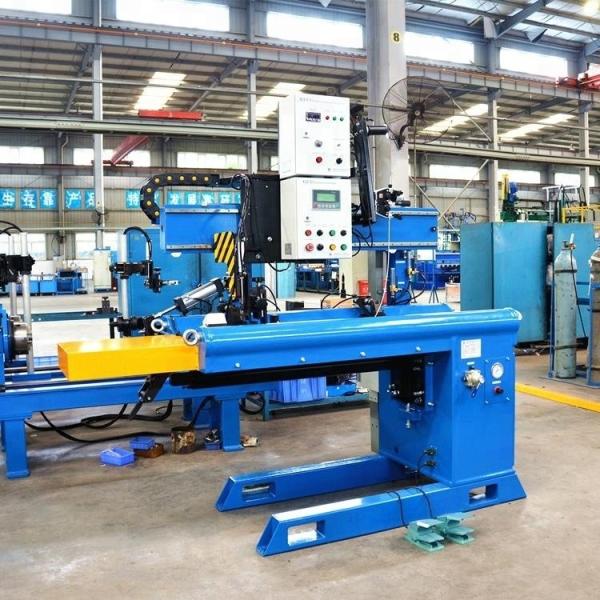

semi auto rolled metal plate shell longitudinal seam welder

Product Description

1. Can be used for TIG/MIG/MAG/PAW/SAW welding applications.

2. Can be used to weld Metal Sheets/Pipes/Cones/Boxes.
3. Can be used with Oscillator, Seam Tracker, Wire Feeder and other Function parts.

Semi Auto Longitudinal Seam Welder Rolled Metal Plate Shell AC 220V Voltage

Parameters
Item
Unit
ZF-500
ZF-1000
ZF-1500
ZF-2000
ZF-2500
ZF-3000
Max. workpiece’s length
mm
500
1000
1500
2000
2500
3000
Workpiece’s diameter
mm
80-750
115-700
155-700
185-700
220-700
250-700
Workpiece’s thickness
mm
0.5-3.0
0.5-6.0
Torch stroke(pneumatic)
mm
100
Torch adjustment
mm
Y:± 30mm; Z: ± 30 mm
Power input
V
AC 1 Phase 220V(±10%) 50Hz
Carriage travel speed
mm/min
100 - 1800
Max. welding current
A
500
Weight
Kg
500
1200
1500
1800
2100
2400
Package
CBM(m³)
2.97
5.17
7
8.84
10.68
12.51
What can be welded?

Metal Sheet Pipes Cones and Boxes weldidng machine.Semi Auto Longitudinal Seam Welder Rolled Metal Plate Shell AC 220V Voltage

Semi Auto Longitudinal Seam Welder Rolled Metal Plate Shell AC 220V Voltage

******Customizable******

if this kind of machine can not meet your automatic welding application. please contact us for customer driven's solution, or see more references as following:

Semi Auto Longitudinal Seam Welder Rolled Metal Plate Shell AC 220V VoltageSemi Auto Longitudinal Seam Welder Rolled Metal Plate Shell AC 220V VoltageSemi Auto Longitudinal Seam Welder Rolled Metal Plate Shell AC 220V Voltage

Details
Semi Auto Longitudinal Seam Welder Rolled Metal Plate Shell AC 220V Voltage

Caution

(operator safty)

Forklift postion

(easy to move)

Semi Auto Longitudinal Seam Welder Rolled Metal Plate Shell AC 220V Voltage
Semi Auto Longitudinal Seam Welder Rolled Metal Plate Shell AC 220V Voltage

Galvanized screw

(prevent from rust)

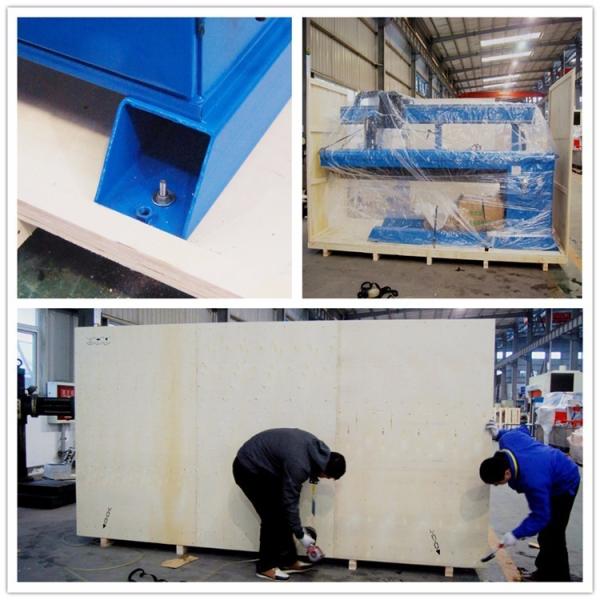

Packaging & Shipping

Export Package.

Semi Auto Longitudinal Seam Welder Rolled Metal Plate Shell AC 220V Voltage

Visit

In user factory:

1. Before sales: on site techinical solution and quotation.

2. after sales: installation, commisionning, training.

Semi Auto Longitudinal Seam Welder Rolled Metal Plate Shell AC 220V Voltage

In our factory:

Semi Auto Longitudinal Seam Welder Rolled Metal Plate Shell AC 220V Voltage

Company Information

Chengdu Hanyan Technology Co., Ltd. Is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.

Semi Auto Longitudinal Seam Welder Rolled Metal Plate Shell AC 220V Voltage
From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.

We exported to over 29 countries and regions including General Longitudinal Seam Welder, Circumferential Seam Welder, Welding Oscillator, Welding TIG Wire Feeder, Welding Seam Tracker, Water Heater Welding Production Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.

Semi Auto Longitudinal Seam Welder Rolled Metal Plate Shell AC 220V Voltage
