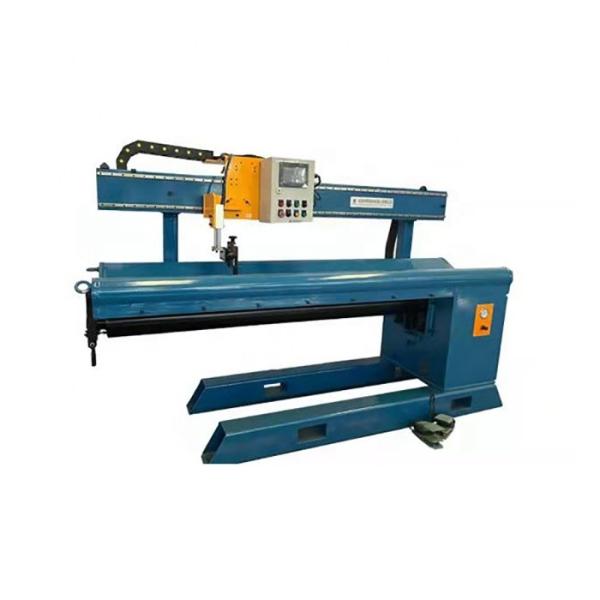

1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine
1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine
1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine
1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine
1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine
1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine
1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine
1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine
Specifications
Certification :
CE/ISO
Packaging Details :
Wooden Box
Supply Ability :
10 Set/Sets per Month
Price :
100
Brand Name :
XioFiTec/Hanyan
Model Number :
XioFiTec/Hanyan
condition :
New
machine type :
Welding Positioner
place of origin :
Sichuan, China
brand name :
HANYAN TECHNOLOGY
warranty :
1 Year, 12 months
weight (kg) :
1500
voltage :
220V
current :
500A
rated capacity :
0.5KVA
rated duty cycle :
100%
dimensions :
2650x1200x2150mm
usage :
auto seam weld
After-sales Service 1 Provided :
Field maintenance and repair service
After-sales Service 2 Provided :
Video technical support
After-sales Service 3 Provided :
Online support
After-sales Service 4 Provided :
Engineers available to service machinery overseas
metal lathe machine :
ZF series
color :
blue
service :
available
Weight :
1500kg
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Gear
Key Selling Points :
Low Noise Level
Port :
Shanghai
Description

1. Introduction of lathe

1.1. Application:

ZFJ 1500A longitudinal seam automatic welding equipment is a standard product which designed and manufactured by our company, with a piano type clamping device to provide consistent and even clamping force, and cooling workpiece meantime, thus reduce distortion and over welding, moreover one-side welding with back formation is achieved.

1.1.1. Base material: stainless steel, carbon steel, aluminum alloy, heat resisting alloy, titanium alloy and others.

1.1.2. Form of workpiece: cylindrical, conical, boxlike, laminar etc.

1.2. Components:

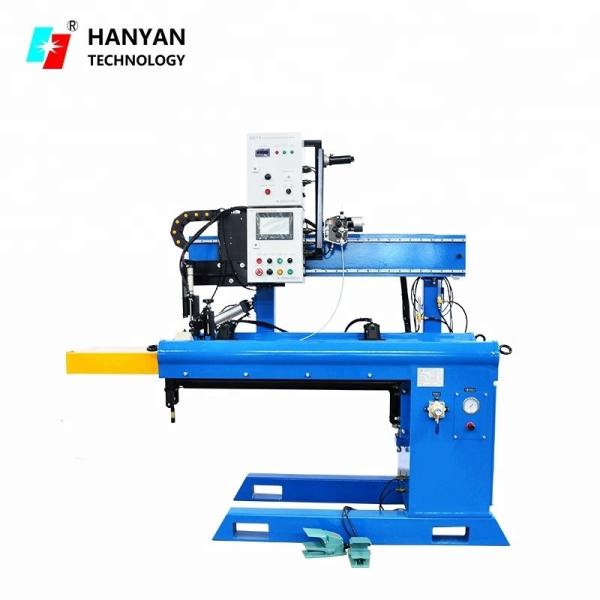

It’s a cantilevered structure, main components include lathe bed, pneumatic piano type clamping device, guiding beam, mandrel, electric carriage, pneumatic lifter, torch 2-D adjusting mechanism, pneumatic system and electrical control system etc. pneumatic piano type clamping device and copper backing evenly clamp the workpiece, 2-D adjusting mechanism is used to regulate the welding initial position.

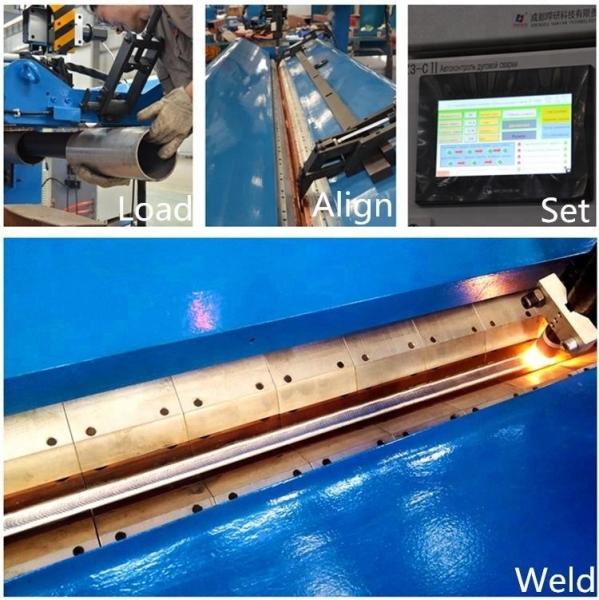

1.3. Welding Process:

It can constitute an automatic welding system with TIG/MIG/MAG/PAW/SAW or other welding source and torch.

What can be welded?

Metal Sheet Pipes Cones and Boxes weldidng machine.1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine

1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine

******Customizable******

if this kind of machine can not meet your automatic welding application. please contact us for customer driven's solution, or see more references as following:

1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine

2.Technical Parameters

Model

ZFJ 1500A

Controller power supply

Single phase 50Hz AC 200V

Welding power supply

Three phase 50Hz AC 380V

Workpiece thickness

0.5~6.0mm

Workpiece diameter

700 mm≥φ≥155mm

Workpiece length

≤1500mm (torch in vertical status)

≤1200mm (torch in slant status)

Carriage speed range

100~1800mm/min

Torch lifting height

100mm

Torch position adjustable range

Y: ±30mm, Z: ±30mm

Max. welding current

500A

Details
1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine

Caution

(operator safty)

Forklift postion

(easy to move)

 1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine
1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine

Galvanized screw

(prevent from rust)

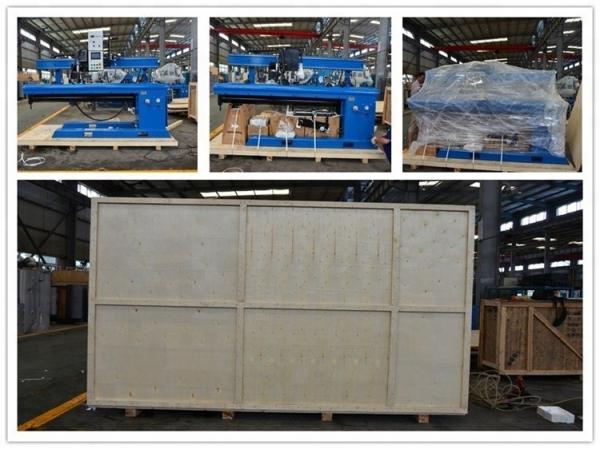

Packaging & Shipping

Export Package.

1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine

Visit

In user factory:

1. Before sales: on site techinical solution and quotation.

2. after sales: installation, commisionning, training.

1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine

In our factory:

1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine

Company Information

Chengdu Hanyan Technology Co., Ltd. Is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.

1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine
From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.

We exported to over 29 countries and regions including General Longitudinal Seam Welder, Circumferential Seam Welder, Welding Oscillator, Welding TIG Wire Feeder, Welding Seam Tracker, Water Heater Welding Production Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.

1500mm Longitudinal Seam Welder Equipment Auto Metal Seam Welding Machine
