Specifications
Certification :
CE/ISO9001
Packaging Details :
Wooden Box
Supply Ability :
20 Set/Sets per Month
Price :
100
Brand Name :
XioFiTec/Hanyan
Model Number :
XioFiTec/Hanyan
place of origin :
Sichuan, China
brand name :
HANYAN TECHNOLOGY
condition :
New
type :
TIG Welders
arc current :
500A(Max. Weld)
pulse frequency :
Depends on welding
pilot arc current :
Depends on needs
rated duty cycle :
100%
motor type :
AC Motor
dimensions :
2000x1200x2150mm
usage :
Automatic weld
voltage :
AC 220V
power(w) :
1KVA
weight (kg) :
1800 KG
warranty :
1 Year
Weldign speed :
100-1800mm/min.
Max. welding current :
500A
Welding process :
TIG,MIG, MAG, PAW, SAW
Control :
touch screen
Laguage :
English/Russian
After-sales Service 1 Provided :
Field installation, commissioning and training
After-sales Service 2 Provided :
Field maintenance and repair service
After-sales Service 3 Provided :
No after-sales service
After-sales Service 4 Provided :
Video technical support
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Gear
Key Selling Points :
Low Noise Level
Applicable Industries :
Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory
Showroom Location :
None
Port :
Any port in China
Description
Product Description

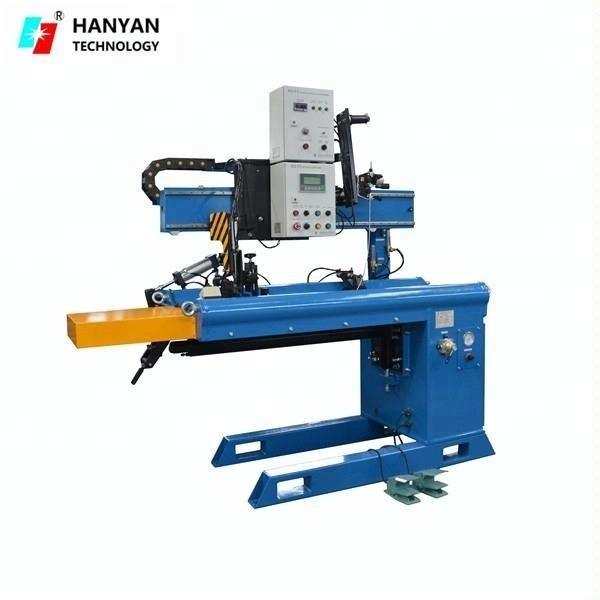

Automatic Arc Welding Machine Arc Welder SAW welding rectifier

Universality:

1. Can be used for TIG/MIG/MAG/PAW/SAW welding applications.
2. Can be used to weld Metal Sheets/Pipes/Cones/Boxes.
3. Can be used with Oscillator, Seam Tracker, Wire Feeder and other Function parts.

Automatic Arc Welding Machine SAW Welding Rectifier Machine

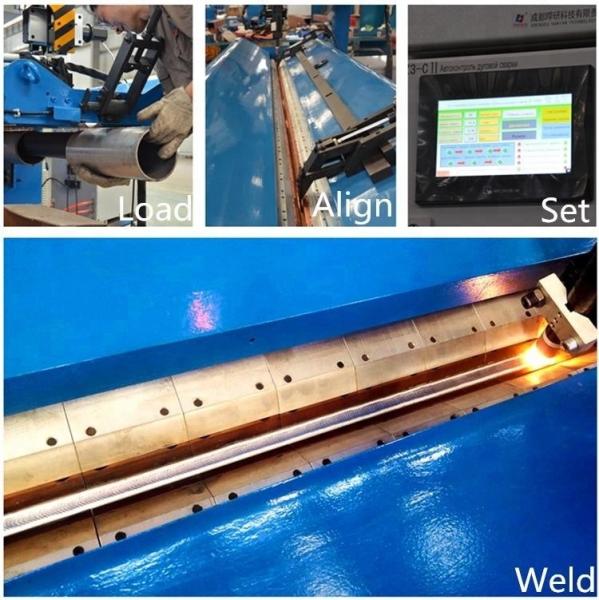

Details
Automatic Arc Welding Machine SAW Welding Rectifier Machine

Caution

(operator safty)

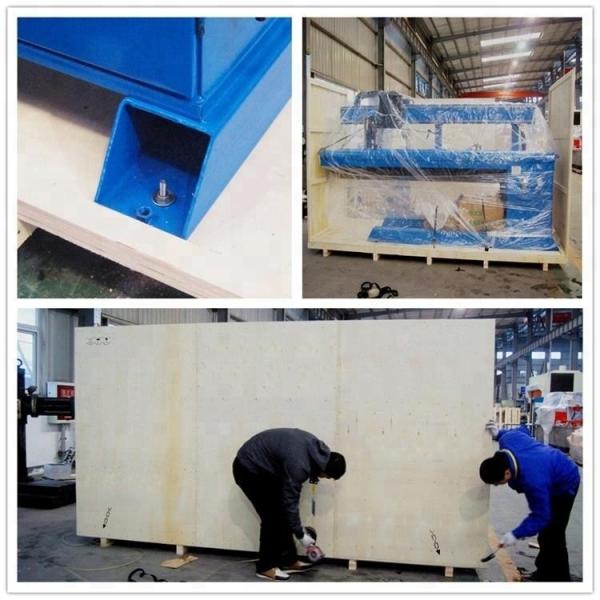

Forklift postion

(easy to move)

Automatic Arc Welding Machine SAW Welding Rectifier Machine
Automatic Arc Welding Machine SAW Welding Rectifier Machine

Galvanized screw

(prevent from rust)

Parameters
Item
Unit
ZF-500
ZF-1000
ZF-1500
ZF-2000
ZF-2500
ZF-3000
Max. workpiece’s length
mm
500
1000
1500
2000
2500
3000
Workpiece’s diameter
mm
80-750
115-700
155-700
185-700
220-700
250-700
Workpiece’s thickness
mm
0.5-3.0
0.5-6.0
Torch stroke(pneumatic)
mm
100
Torch adjustment
mm
Y:± 30mm; Z: ± 30 mm
Power input
V
AC 1 Phase 220V(±10%) 50Hz
Carriage travel speed
mm/min
100 - 1800
Max. welding current
A
500
Weight
Kg
500
1200
1500
1800
2100
2400
Package
CBM(m³)
2.97
5.17
7
8.84
10.68
12.51

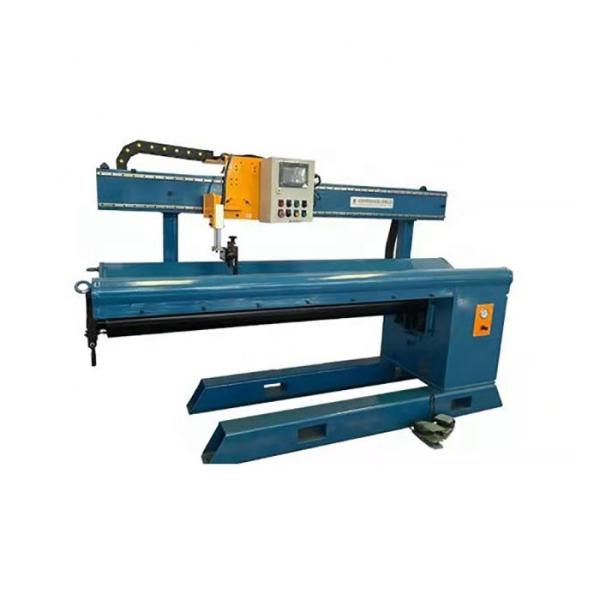

What can be welded?

Metal Sheet Pipes Cones and Boxes weldidng machine.Automatic Arc Welding Machine SAW Welding Rectifier Machine

Automatic Arc Welding Machine SAW Welding Rectifier Machine

******Customizable******

if this kind of machine can not meet your automatic welding application. please contact us for customer driven's solution, or see more references as following:

Automatic Arc Welding Machine SAW Welding Rectifier MachineAutomatic Arc Welding Machine SAW Welding Rectifier MachineAutomatic Arc Welding Machine SAW Welding Rectifier Machine

Visit

In user factory:

1. Before sales: on site techinical solution and quotation.

2. after sales: installation, commisionning, training.

Automatic Arc Welding Machine SAW Welding Rectifier Machine

In our factory:

Automatic Arc Welding Machine SAW Welding Rectifier Machine

Company Information

Chengdu Hanyan Technology Co., Ltd. Is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.

Automatic Arc Welding Machine SAW Welding Rectifier Machine
From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.

We exported to over 29 countries and regions including General Longitudinal Seam Welder, Circumferential Seam Welder, Welding Oscillator, Welding TIG Wire Feeder, Welding Seam Tracker, Water Heater Welding Production Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.

Automatic Arc Welding Machine SAW Welding Rectifier Machine
