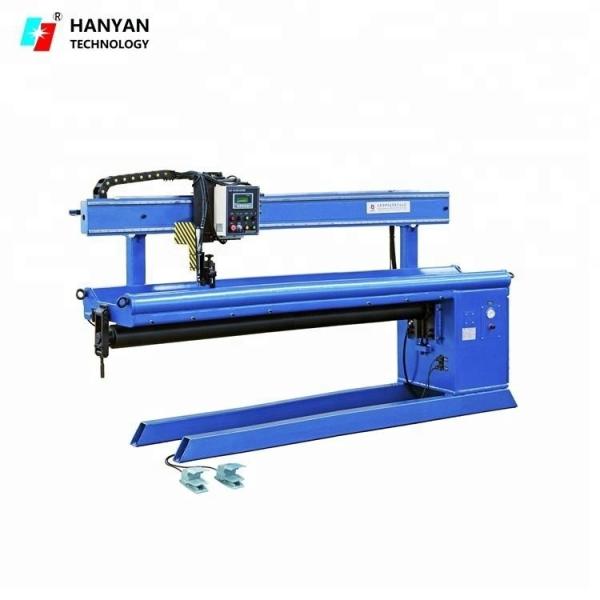

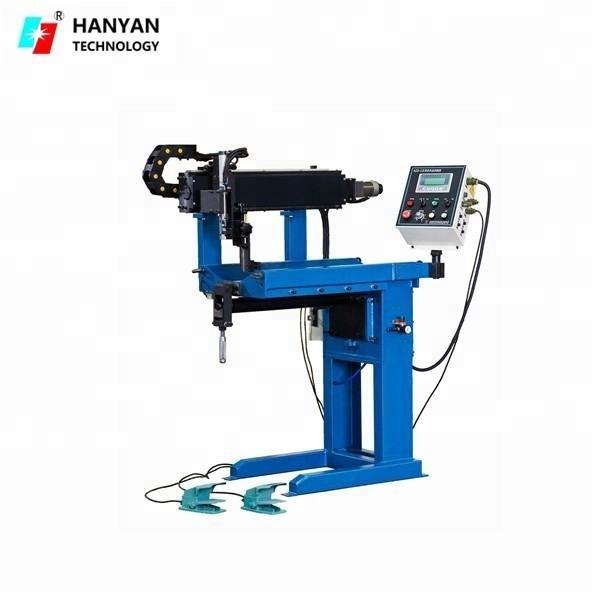

500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine
500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine
500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine
500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine
500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine
500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine
500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine
500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine
500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine
500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine
500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine
500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine
Specifications
Certification :
CE, ISO9001
Packaging Details :
Wooden Box
Supply Ability :
10 Set/Sets per Month
Price :
100
Brand Name :
XioFiTec/Hanyan
Model Number :
XioFiTec/Hanyan
condition :
New
machine type :
Welding Manipulator
place of origin :
Sichuan, China
brand name :
Hanyan technology
warranty :
1 Year, 12 months
weight (kg) :
1200
voltage :
220V
current :
500A(Max)
rated capacity :
depends
rated duty cycle :
depends
dimensions :
500-3000mm
usage :
longidutinal seam welding
After-sales Service 1 Provided :
Online support
After-sales Service Provided :
Engineers available to service machinery overseas
Type :
Other
hot air welder machine :
ZF series
color :
depends
service :
customized
welding length :
depends on the type
Weight :
Depends on packing
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Bearing
Key Selling Points :
High Safety Level
Port :
Shanghai
Description

Customization

WE CAN ENGINEER ANY MODEL TO AUTOMATE YOUR CUSTOM APPLICATION, AND SPECIALIZE IN PROVIDING A CUSTOMER DRIVEN SOLUTION TO YOUR WELDING NEEDS!

Product Description

500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine

We have ZF-500A to ZF-3000 welding machine, we also can design the welding lathe depends on the length of your workpiece.

Now we present the example as ZF-500A for you, if you want to know more about other ZF series, please contact us.

500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine

Model

ZF500

Controller power supply

Single phase 50Hz AC 200V

Welding power supply

Three phase 50Hz AC 380V

Workpiece thickness

0.5~3.0mm

Workpiece diameter

800mm≥φ≥800mm

Workpiece length

≤500mm

Carriage speed range

100~1800mm/min

Torch lifting height

100mm

Torch position adjustable range

Y: ±30mm, Z: ±30mm

Max. welding current

500A

500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine

500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine

Company information

500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine

Chengdu Hanyan Technology Co., Ltd.

is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.

From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.
We exported to over 29 countries and regions including General Longitudinal/Circumferential Seam Welder, Welding Auxiliaries, Water Heater Welding Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.

Our Services

Guarantee and After-sale service

1. One year guarantee for whole machine

2. 24 hours technical support by e-mail

3. Calling or door to door service

4. Engineers available to service machinery overseas

500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine500mm - 3000mm Longitudinal Seam Welding Lathe Automatic Hot Air Welder Machine

About us

Chengdu Hanyan Technology Co., LTD. is a national high-tech enterprise specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment.

With 360 employees, including 159 who have been devoting into welding area for over 15 years, we are serving customers worldwide with dozens of various types of precision equipment and a factory covering an area of 15000sqm. To establish modern management, we customized an ERP system which could ensure punctual delivery and offer process surveillance. We have accomplished more than 20 patents in automatic welding industry. We are capable of providing 4000 units specialized welding equipment annually.
