25G SFP28 AOC Active Optical Cables Multi-Mode
25G SFP28 AOC Active Optical Cables Multi-Mode
25G SFP28 AOC Active Optical Cables Multi-Mode
25G SFP28 AOC Active Optical Cables Multi-Mode
Specifications
Brand Name :
Seacent
Model Number :
25G SFP28
Certification :
ISO9001,ROHS
Place of Origin :
Shenzhen,China
MOQ :
1 piece
Payment Terms :
L/C,T/T,D/P
Supply Ability :
100,000 pieces per month
Delivery Time :
5-8 work days
Product name :
25G SFP28 AOC
Total Speed :
25G
Breakout Type :
1:1
Side A Speed :
25G NRZ
Side B Speed :
25G NRZ
Length :
1m-100m
Description

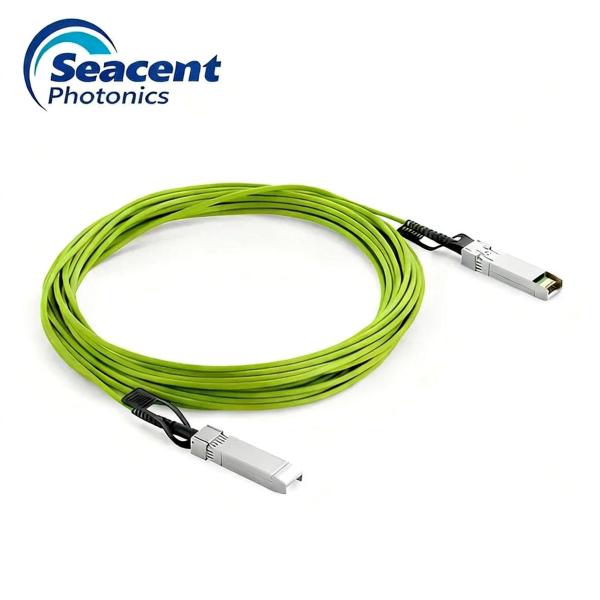

25G SFP28 AOC Active Optical Cables Multi-Mode

Seacent 20G SFP28 Active Optical Cables are integrated, high-speed interconnect assemblies with SFP28 connectors, optimized for very short-distance, high-bandwidth connections within and across adjacent racks in data centers. They offer a more economical and streamlined connectivity solution for 25 Gigabit Ethernet and Infiniband EDR applications compared to traditional discrete transceivers. The modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm, and feature a standard 20-contact edge-type electrical connector.


Product Features:

  • Hot-pluggable SFP28 form-factor connectors

  • 850nm VCSEL laser and PIN photo-detector

  • Internal CDR circuits on both receiver and transmitter channels

  • Compliant with SFP28 MSA and IEEE 802.3by 25GBASE-SR

  • Data rate up to 25.78125Gbps

  • 3.3V power supply voltage

  • Power consumption < 0.8W per end

  • RoHS compliant (lead free)


​Applications:​

  • 25GBASE-SR Ethernet


Absolute Maximum Ratings:

Parameter Symbol Min. Max. Unit
Power Supply Voltage VCC -0.5 +3.6 V
Storage Temperature Tc -40 +85 ℃
Relative Humidity RH 0 85 %

Recommended Operating Conditions

Parameter Symbol Min. Typical Max. Unit
Supply Voltage VCC 3.15 3.3 3.45 V
Operating Case Temp. (Standard) Tca 0 — +70 ℃
Operating Case Temp. (Industrial) Tca -40 — +85 ℃
Baud Rate Per Lane DR — — 25.78125 Gbps
Fiber Bend Radius Rb 3 — — cm
