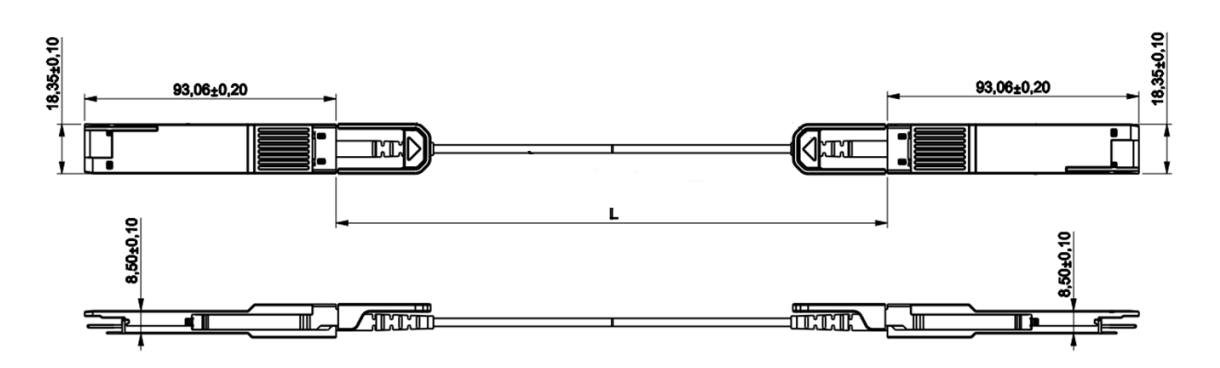

800G QSFP-DD AOC Active Optical Cable Multi-mode 850nm
800G QSFP-DD AOC Active Optical Cable Multi-mode 850nm
800G QSFP-DD AOC Active Optical Cable Multi-mode 850nm
800G QSFP-DD AOC Active Optical Cable Multi-mode 850nm
Specifications
Brand Name :
Seacent
Model Number :
800G QSFP-DD
Certification :
ISO9001,ROHS
Place of Origin :
Shenzhen,China
MOQ :
1 piece
Payment Terms :
L/C,T/T,D/P
Supply Ability :
100,000 pieces per month
Delivery Time :
5-8 work days
Product name :
800G QSFP-DD AOC
Total Speed :
800G
Breakout Type :
1: 1
Length :
1m-100m
Description

Multi-mode 800G QSFP-DD AOC

This 800G QSFP-DD Active Optical Cable (AOC) supports an 800Gbps data rate and is designed for ultra-short-reach, ultra-high-bandwidth connections between switches and servers within data centers. It adopts the QSFP-DD double-density form factor with integrated optical engines, transmitting signals over multimode fiber. Featuring low power consumption and easy deployment, it is primarily used in scenarios with extreme bandwidth demands, such as high-performance computing and AI training.

Product Features:

  • Hot-swappable QSFP-DD form factor

  • Supports 106.25 Gb/s PAM4 per channel

  • Integrated 8x106G PAM4 transceiver

  • Equipped with 8-channel 850nm VCSEL array

  • Equipped with 8-channel PIN detector array

  • Power consumption under 14W per module end

  • Adheres to CMOS V4.0 specification

  • Meets RoHS6 directive (lead-free)

​Applications:​

  • 800GBASE SR8 Ethernet

Details:

Part Number Total Speed Breakout Type SideA Speed Side A Form Factor Side B Speed Side B Form Factor
XHX800-NCCA-xxx 800G 1:1 8x112G PAM4 OSFP 8x112G PAM4 OSFP
XHX800-NCCB-xxx 800G 1:2 8x112G PAM4 OSFP 4x112G PAM4 OSFP-RHS
XHX800-NCCC-xxx 800G 1:1 8x112G PAM4 OSFP 8x112G PAM4 OSFP-RHS
XHX800-NCCD-xxx 800G 1:2 8x112G PAM4 OSFP 4x112G PAM4 QSFP112
XHX800-NCCE-xxx 800G 1:4 8x112G PAM4 OSFP 2x112G PAM4 QSFP112
XHX800-NCCF-xxx 800G 1:4 8x112G PAM4 OSFP 2x112G PAM4 OSFP-RHS



Absolute Maximum Ratings:

Parameter Symbol Min. Max. Unit
Power Supply Voltage VCC -0.5 +3.6 V
Storage Temperature Tc -40 +85 ℃
Relative Humidity RH 0 85 %

Recommended Operating Conditions

Parameter Symbol Min. Typical Max. Unit
Power Supply Voltage VCC 3.15 3.30 3.45 V
Operating Case Temperature Tca 0 — +70 ℃
Signaling rate per lane DR — 53.125±100 ppm — GBd
Data Rate Per Lane DR — — 25.78125 Gbps
Fiber Bend Radius Rb 3 — — cm
