40G QSFP+ AOC Multi-Mode Active Optical Cables
40G QSFP+ AOC Multi-Mode Active Optical Cables
40G QSFP+ AOC Multi-Mode Active Optical Cables
40G QSFP+ AOC Multi-Mode Active Optical Cables
Specifications
Brand Name :
Seacent
Model Number :
40G QSFP+
Certification :
ISO9001,ROHS
Place of Origin :
Shenzhen,China
MOQ :
1 piece
Payment Terms :
L/C,T/T,D/P
Supply Ability :
100,000 pieces per month
Delivery Time :
5-8 work days
Product name :
40G QSFP+ AOC
Total Speed :
40G
Breakout Type :
1:1
Length :
1m-100m
Description

40G QSFP+ AOC Multi-Mode Active Optical Cables

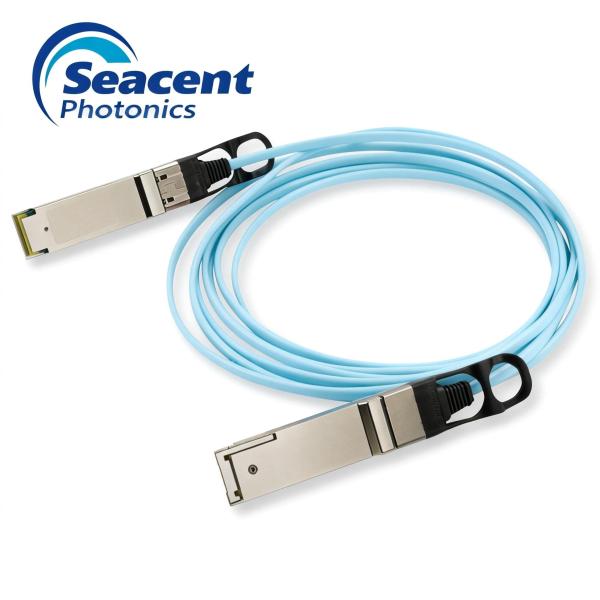

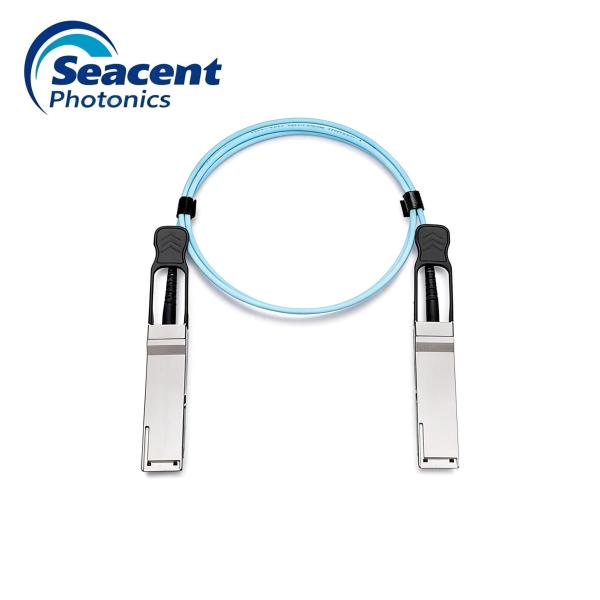

This Seacent QSFP+ Active Optical Cable is a four-channel parallel optical module for 40 Gigabit Ethernet and Infiniband FDR/EDR applications. It provides full-duplex connectivity for four channels over a single cable, with a transmission distance of up to 300m (OM3) over multimode fiber. The module is compliant with the SFF-8436 specification, utilizes 850nm VCSEL and PIN arrays, and interfaces via a 38-contact connector.


Product Features:

• SFF-8436 compliant QSFP+ active optical cable
• Four-channel full-duplex, reach up to 82m (OM2)/300m (OM3)
• Based on 850nm VCSEL transmitter and PIN receiver arrays
• Power dissipation <1.4W per end
• RoHS compliant


​Applications:​

• 40GBASE SR4 Ethernet



Details:

Type Total Speed Breakout Type SideA Speed Side A Form Factor Side B Speed Side B Form Factor
40G QSFP+ 40G 1:1 4x10G NRZ QSFP+ 4x10G NRZ QSFP+

40G QSFP+ to 4x10G SFP+

 40G 1:4 4x10G NRZ QSFP+ 1x10G NRZ SFP+



Absolute Maximum Ratings:

Parameter Symbol Min. Max. Unit
Power Supply Voltage VCC -0.5 +3.6 V
Storage Temperature Tc -40 +85 ℃
Relative Humidity RH 0 85 %

Recommended Operating Conditions

Parameter Symbol Min. Typical Max. Unit
Supply Voltage VCC 3.15 3.30 3.45 V
Operating Case Temp. (Standard) Tca 0 — +70 ℃
Operating Case Temp. (Industrial) Tca -40 — +85 ℃
Data Rate Per Lane DR — — 10.3125 Gbps
Fiber Bend Radius Rb 3 — — cm
