Product Description

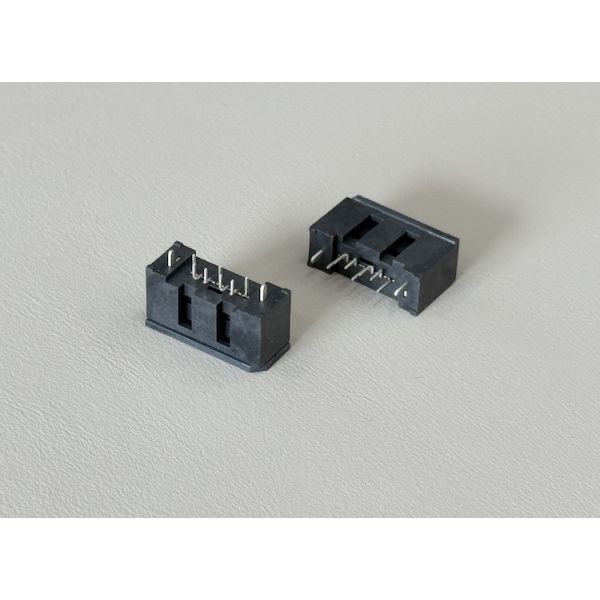

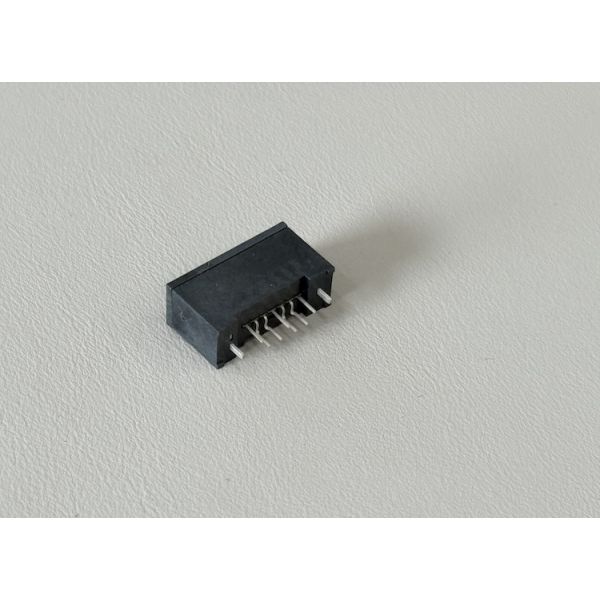

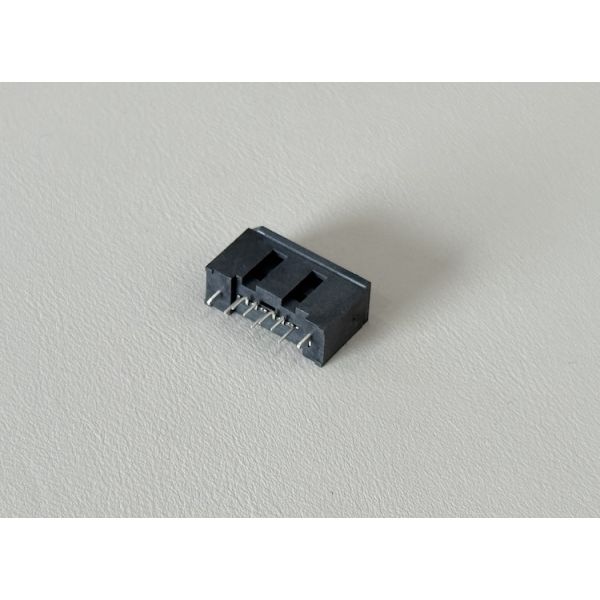

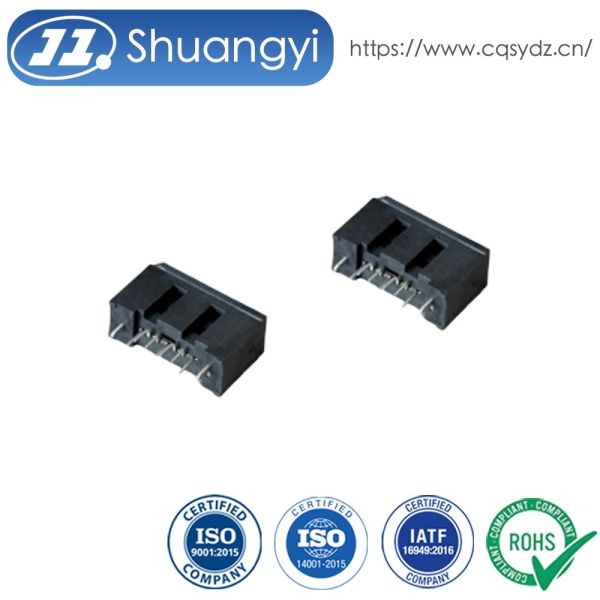

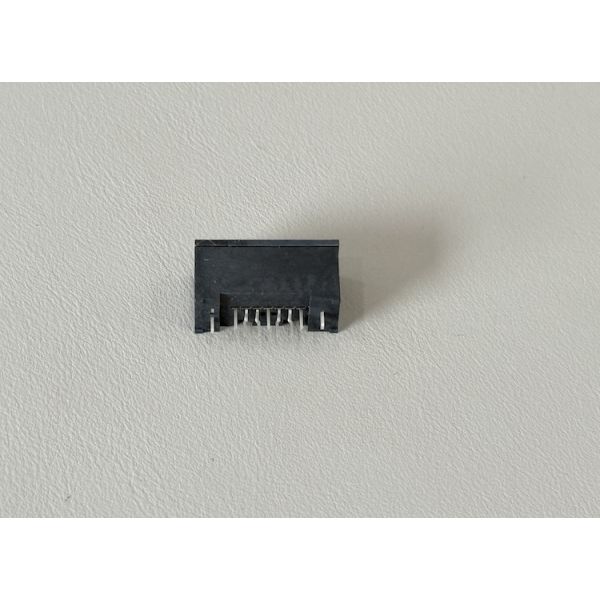

This 2.54mm pitch PCB female connector provides reliable board-to-wire or board-to-board signal and power transmission. The gold-plated copper alloy terminals ensure high conductivity, corrosion resistance, and long-term electrical stability. Its right-angle design is ideal for compact PCB layouts where vertical space is limited.
The connector housing is made of high-temperature, flame-retardant engineering plastic (PBT/PA66 UL94V-0), ensuring mechanical strength and durability even under harsh environmental or reflow conditions. The connector is compatible with industry-standard 2.54mm pin headers, offering excellent retention and stable mating alignment for consistent contact performance.
This connector is suitable for power, signal, or data applications in automotive electronics, industrial control systems, servers, consumer electronics, and instrumentation devices.
| Connector Type | 2.54mm PCB Female Connector |
| Mounting Style | Right Angle Through-Hole |
| Pitch | 2.54 mm |
| Number of Positions | 10 Pins |
| Contact Type | Female Socket |
| Plating | Gold over Nickel on Contact Area, Tin on Solder Area |
| Contact Material | Copper Alloy |
| Housing Material | PBT or PA66, UL94V-0 Flame Retardant |
| Rated Current | 3A per Contact (Max) |
| Rated Voltage | 250V AC/DC |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 1000 MΩ at 500V DC |
| Dielectric Strength | 1000V AC/min |
| Operating Temperature | −40°C to +105°C |
| Mating Cycles | ≥ 500 |
| Compliance | RoHS, REACH, Halogen-Free |
| Customization | Pin Count, Plating Thickness, Cable Assembly, and Orientation Options Available |
Applications
Automotive ECU and energy management modules
Server and communication equipment PCB connections
Power and signal boards in industrial automation systems
Consumer electronics and smart devices with compact designs
Customized harness and terminal block assemblies for OEM use
Precautions
Ensure proper pin alignment during insertion to prevent deformation or terminal damage.
Maintain soldering temperature below 260°C for less than 10 seconds to avoid housing deformation.
Avoid exceeding the rated current; distribute loads across multiple pins if higher currents are required.
Keep connectors free of contaminants such as dust, oil, or flux residue to maintain low contact resistance.
Store components in a dry, temperature-controlled environment and avoid prolonged exposure to humidity.
For applications with strong vibration, consider additional PCB reinforcement or locking features.
