Product Description

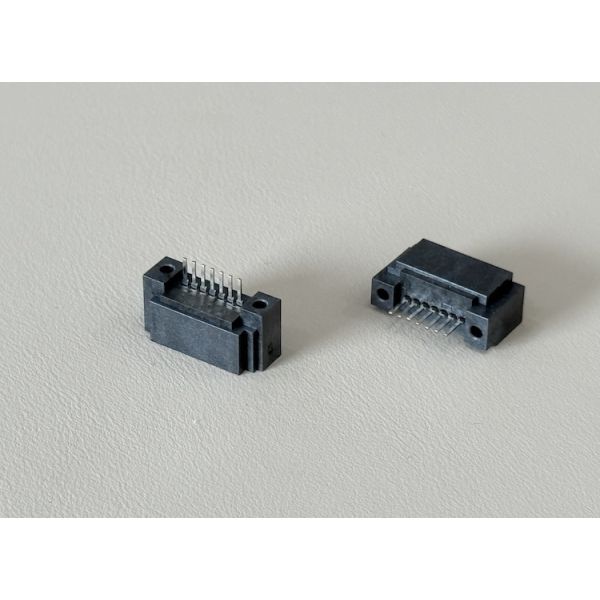

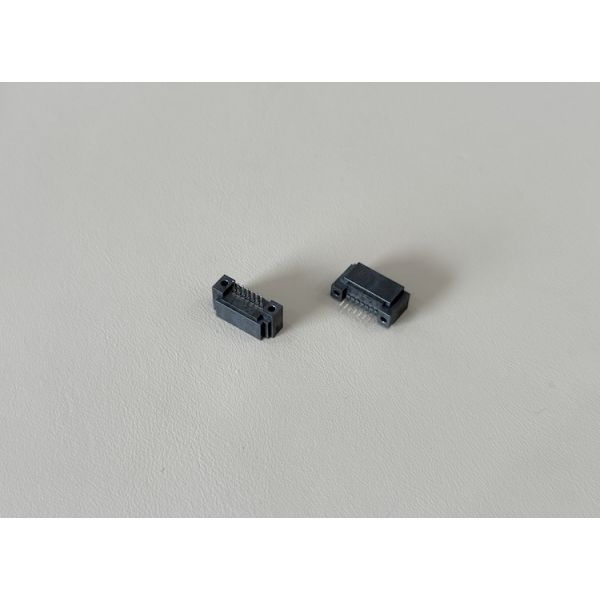

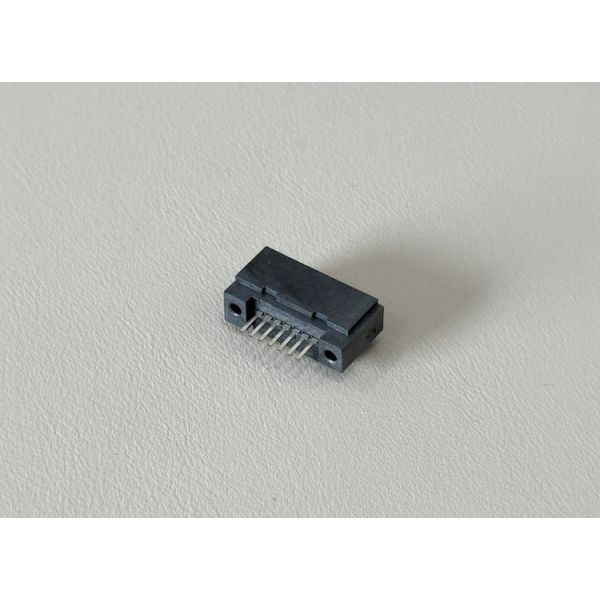

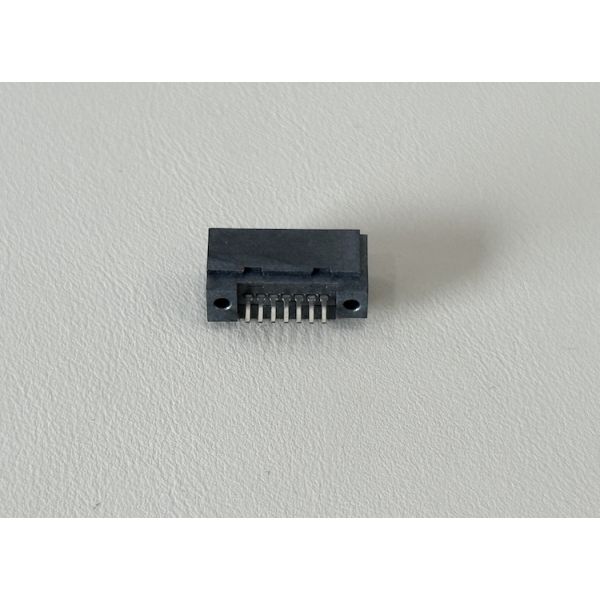

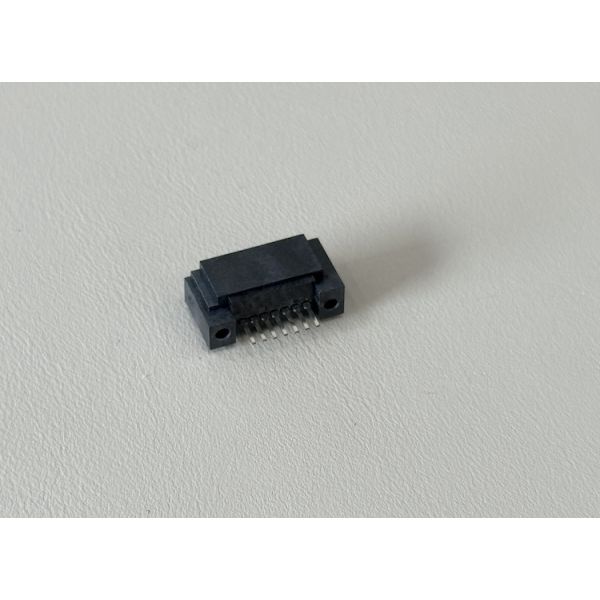

This 7-pin PCB connector is designed for compact, high-reliability SATA-style signal transmission between PCB and cable assemblies or mating board connectors. Gold-plated contacts and a high-temperature thermoplastic housing ensure stable electrical performance, low contact resistance and long-term corrosion resistance in demanding electronic systems.
The through-hole solder tails provide strong mechanical retention to the PCB, making the connector suitable for applications subject to vibration or repeated mating. With 1.27 mm pitch contacts, it offers a good balance of density and creepage distance for high-speed serial links in space-constrained layouts. Customization is available for pin length, plating thickness, housing keying and coding to match your specific PCB design and system requirements.
| Product type | 7-pin SATA style PCB connector, board receptacle |
| Interface | Signal connector for high-speed serial data and low-voltage power |
| Number of pins | 7 contacts |
| Pitch | 1.27 mm nominal between adjacent pins |
| Mounting style | Through-hole PCB mounting, single row |
| Contact material | Copper alloy terminals |
| Contact plating | Gold-plated contact area, nickel under-plating, tin-plated solder tails |
| Housing material | High-temperature thermoplastic, UL94 V-0, black |
| Rated current | Up to 1.5 A per contact (depending on conductor size and temperature rise design) |
| Rated voltage | Up to 30 V AC/DC typical for signal circuits |
| Contact resistance | ≤ 30 mΩ (initial) |
| Insulation resistance | ≥ 1000 MΩ at 500 V DC |
| Dielectric withstanding voltage | 500 V AC for 1 minute without breakdown |
| Operating temperature | −40 °C to +105 °C (including self-heating) |
| PCB connection | Solder pins for wave or selective soldering |
| Compliance | RoHS, halogen-free and REACH compliant materials |
Applications
Server and storage equipment: HDD/SSD backplanes, RAID cards, host adapter boards
Industrial control and automation: motion controllers, PLC expansion cards, embedded computers
Communication equipment: routers, base-stations, network storage, test instruments
Automotive electronics: infotainment units, data logging modules, power-distribution monitoring boards
Custom cable assemblies and harnesses where compact signal terminals are required
Precautions
Follow the recommended PCB footprint and hole size to ensure proper solder fillet and retention strength.
Do not exceed the specified current and voltage ratings; derate appropriately at elevated temperatures.
Avoid excessive insertion or extraction force and ensure correct alignment with the mating plug to prevent bent pins.
Reflow or wave soldering temperature profiles should conform to the housing’s high-temperature specification to avoid deformation.
Keep connectors clean and free from flux residue or contamination; store in a dry, dust-free environment before assembly.
