Product Description

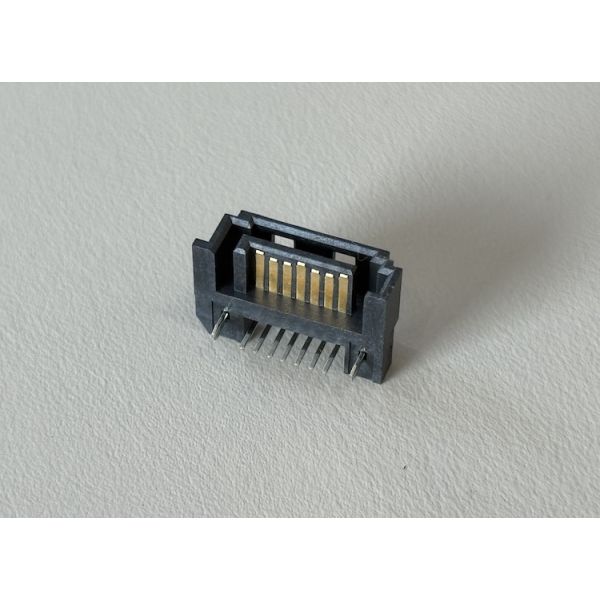

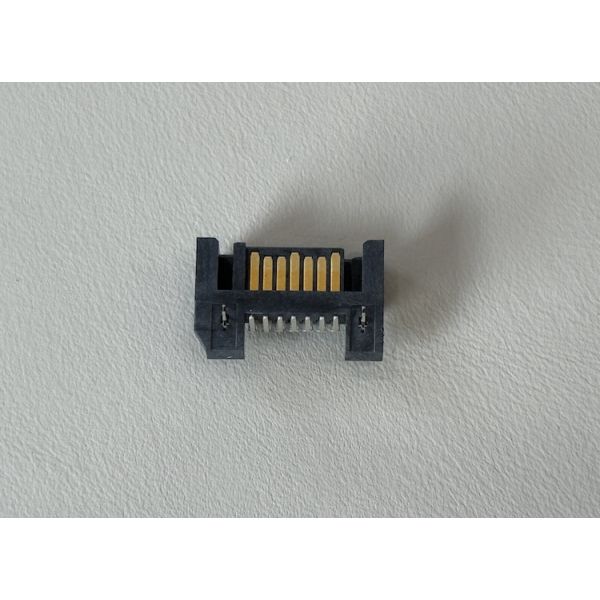

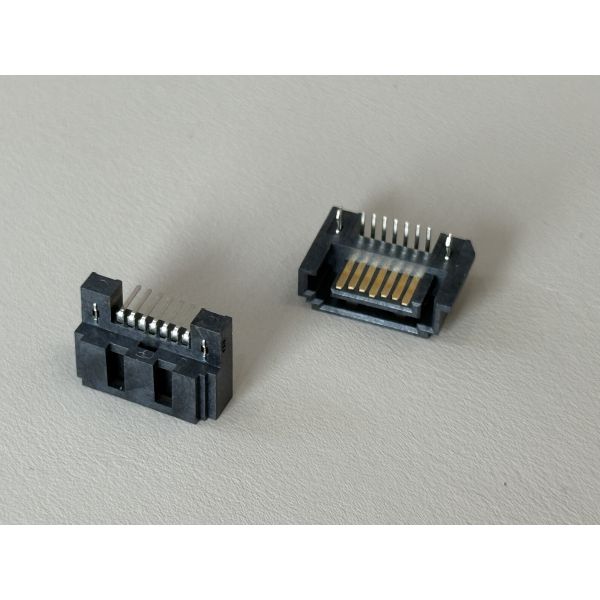

This board-to-board PCB connector is designed for compact, high-reliability signal transmission between stacked or parallel circuit boards. A single row of gold-plated mating pads provides stable, low-loss contact for digital and analog signals, while tin-plated solder tails ensure strong mechanical retention and easy assembly onto standard PCBs.
The high-temperature, UL94V-0 housing maintains dimensional stability during reflow or wave soldering and offers excellent insulation performance in harsh industrial and automotive environments. Flexible customization of pitch, pin count and connector height allows the design to be adapted to different control boards, communication modules and power-assist circuits.
| Connector type | Board-to-board PCB connector |
| Function | Signal and low-power transmission between stacked or parallel PCBs |
| Pitch | 1.27 mm (other pitches customizable) |
| Row configuration | Single row |
| Number of contacts | 10 pins standard, custom pin counts available |
| Mating style | Vertical mezzanine / board-to-board |
| PCB termination | Through-hole solder tails with SMT hold-down tabs |
| Contact gender | Male terminals |
| Contact material | Copper alloy, high conductivity |
| Contact plating | Gold over nickel on mating pads, tin over nickel on solder tails |
| Housing material | High-temperature thermoplastic, UL94V-0 flame retardant, halogen-free option |
| Rated current | up to 1.0 A per contact (layout dependent) |
| Rated voltage | up to 100 VAC / VDC |
| Contact resistance | ≤ 30 mΩ (initial) |
| Insulation resistance | ≥ 1,000 MΩ at 500 VDC |
| Dielectric withstand | 500 VAC, 1 minute |
| Operating temperature | −40 °C to +105 °C |
| Durability | ≥ 50 mating cycles (higher grades optional) |
| Compliance | RoHS / HF / REACH compliant |
| Customization | Pitch, pin count, housing height, plating thickness, keying, harness assembly |
Applications
Industrial control modules, PLC and I/O boards
Server and storage systems signal transmission between daughtercards
Automotive electronics, battery management and power distribution PCBs
Communication equipment, network cards and measurement instruments
Customized OEM control boards and embedded systems requiring compact board-to-board connections
Precautions
Design PCB pad layout according to the recommended footprint to guarantee correct coplanarity and solder joint reliability.
Do not exceed the specified current and voltage ratings; apply suitable derating in high-temperature or densely packed enclosures.
Avoid twisting or side loading when mating and unmating; always align boards before pressing to prevent bent terminals.
Keep the gold mating area clean and free from flux, dust or oil to maintain low contact resistance and stable signal quality.
For applications with strong vibration or shock, combine this connector with mechanical board supports or screws for additional reinforcement.
