Product Description

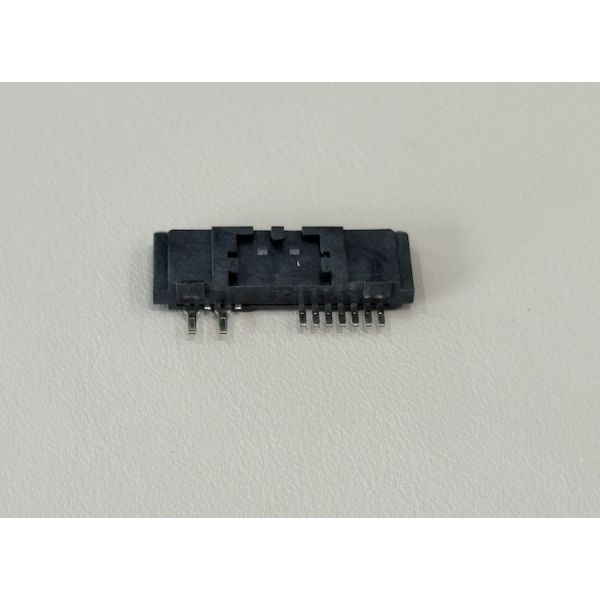

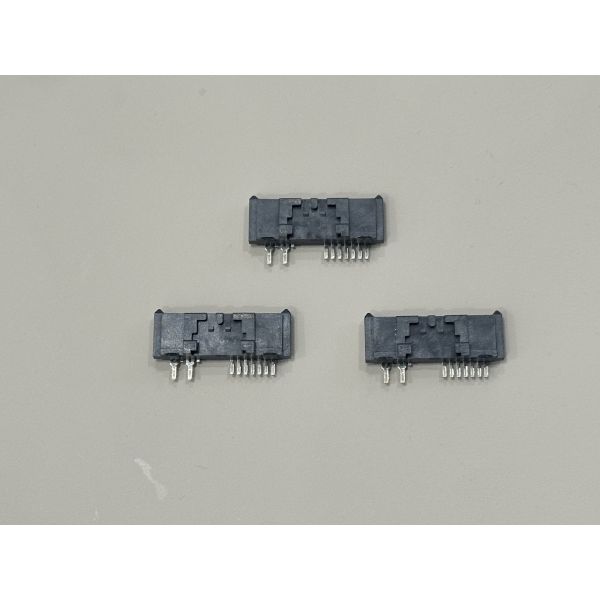

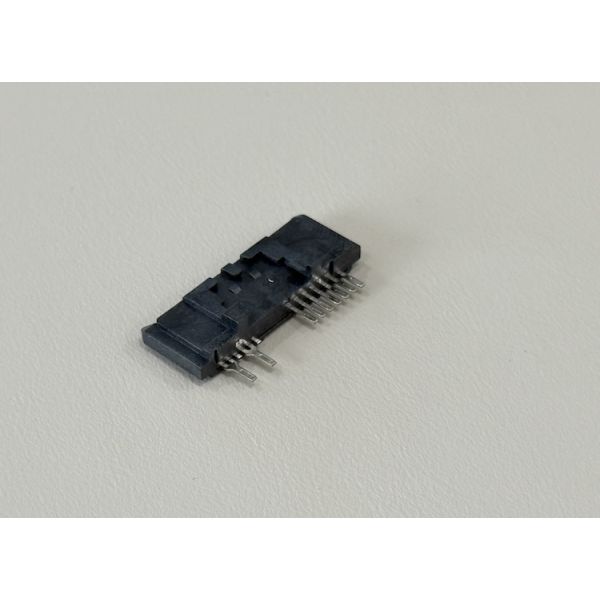

This 22-pin SATA female PCB connector combines power and high-speed signal terminals in one compact housing, ideal for modern storage and embedded designs. The gold-plated contacts provide low contact resistance and stable signal transmission, while tin-plated solder tails ensure reliable solderability on the PCB. The right-angle structure saves vertical height and supports dense backplane or daughterboard layouts. Dimensions can be customized to match your existing SATA footprint or specific PCB keep-out area.
| Connector type | SATA 22-pin female PCB connector |
| Interface | 7-pin signal + 15-pin power |
| Mounting style | Right-angle board-mount, solder tail termination |
| Pitch | Approx. 1.27 mm |
| Contact material | Copper alloy terminals |
| Contact plating | Gold over nickel on contact area, tin-plated solder tails |
| Housing material | High-temperature thermoplastic, UL94V-0, black |
| Rated current | Up to 1.5 A per signal pin, higher current capability on power pins |
| Rated voltage | Up to 50 V DC (typical 5–12 V HDD/SSD power systems) |
| Operating temperature | -40 °C to +85 °C |
| Compliance | RoHS / halogen-free options, REACH compatible |
| Customization | Tail length, plating thickness, housing color and packaging available |
Applications
Server and workstation HDD/SSD backplanes
Industrial PCs, DVR/NVR, telecom and networking equipment
Embedded storage modules and RAID cards
Automotive data recorders and infotainment systems using SATA drives
Ensure the PCB footprint and keying match the mating SATA plug to avoid mis-insertion.
Follow recommended reflow/wave solder profiles to prevent housing deformation.
Keep the contact area clean; avoid touching the gold fingers to maintain low contact resistance.
Provide adequate mechanical support on the PCB (screws or brackets) in applications with frequent mating or vibration.
