Product Description

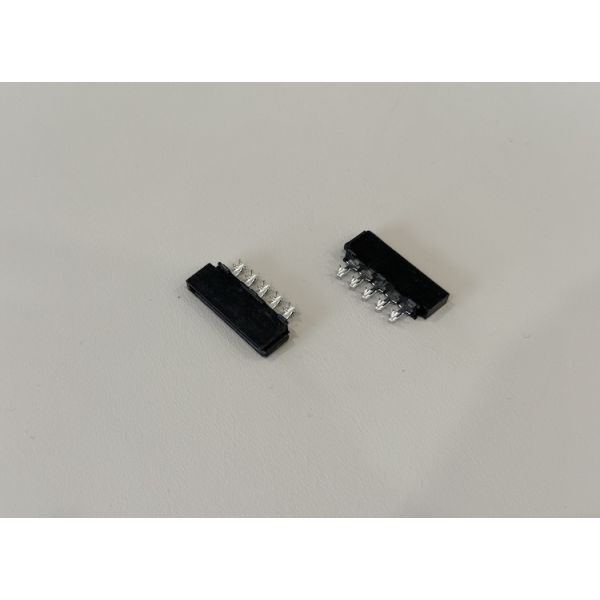

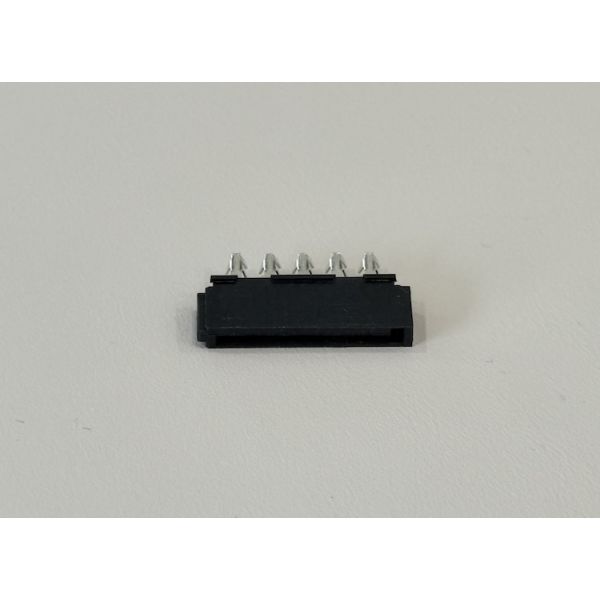

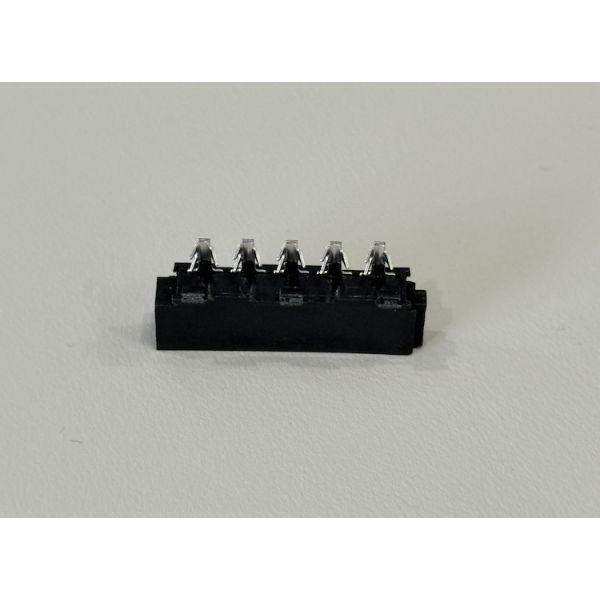

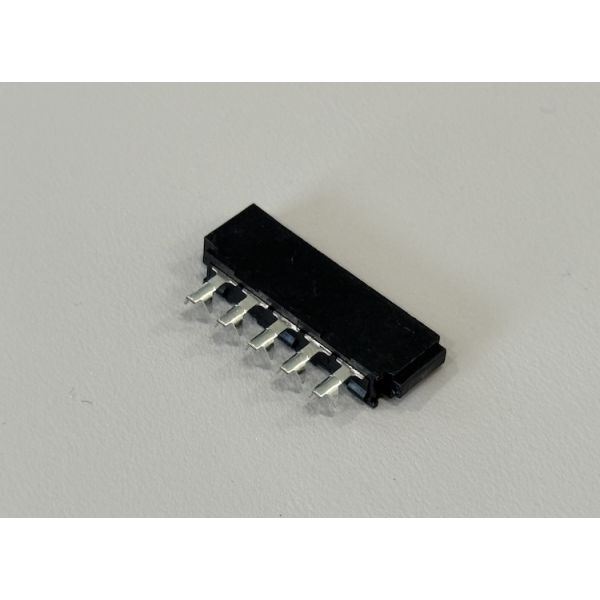

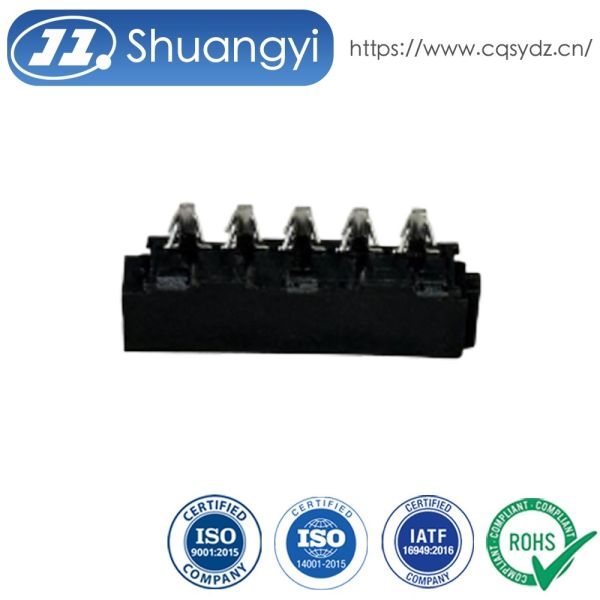

This SATA 15-pin wire-to-board power connector is designed for reliable power delivery from cable assemblies to HDD/SSD and embedded storage boards. The right-angle PCB tails and compact housing save board space while ensuring stable mechanical retention on the PCB.
Gold-plated contact surfaces provide low contact resistance and long-term corrosion resistance, while tin-plated solder legs ensure secure solder joints during reflow or wave soldering. The high-temperature, flame-retardant housing supports automated assembly and meets industrial and IT equipment requirements.
| Connector type | SATA 15-pin female power connector, wire-to-board |
| Pitch | 2.50 mm typical |
| Positions | 15 contacts |
| Mounting style | Right-angle through-hole / solder tail to PCB |
| Contact plating | Gold on contact area over nickel, tin on solder tail |
| Housing material | High-temperature thermoplastic, UL94V-0 |
| Rated current | Up to 1.5 A per contact (application-dependent) |
| Rated voltage | Up to 12 V DC power rail |
| Operating temperature | −40 °C to +105 °C |
| RoHS / HF / REACH | Compliant materials, halogen-free options |
Applications
Power connection for 2.5" and 3.5" HDD/SSD storage devices
Server and data-center backplanes, RAID cards, NAS systems
Industrial PCs, embedded controllers, and communication equipment
Custom power harness assemblies for automotive infotainment and on-board storage
Any PCB requiring SATA-compatible power input from cable assemblies
Precautions
Match the connector with SATA-standard mating plugs and follow recommended PCB land patterns from the product drawing.
Do not exceed rated current and voltage; derate appropriately in high-temperature or high-density layouts.
Ensure correct keying and orientation during assembly to avoid reverse insertion and damage to storage devices.
Use compatible wire gauges and proper crimp/solder processes for the cable side to maintain contact reliability.
Store and assemble the connectors in clean, dry conditions to prevent contamination of gold-plated contacts.
