Product Description

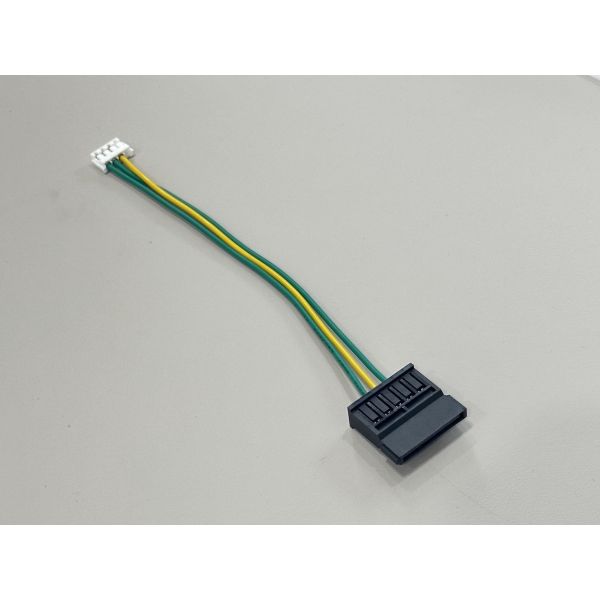

This SATA power to 4-pin PCB connector cable provides a compact way to route power and low-current signals from a standard SATA power interface to a small board-mounted connector. The harness uses high-quality stranded copper wire and reliable crimped terminals to maintain stable power transmission and consistent signal integrity.
The SATA side mates with common power outputs found on PC and server power supplies, while the 4-pin micro connector side plugs directly into control boards, fans, indicator modules, or sensor PCBs. Color-coded wires help identify circuits quickly during installation and maintenance. Custom options are available to match specific PCB footprints, voltage rails, and current requirements.
| Product type | SATA power to 4-pin PCB connector cable / adapter wire harness |
| Function | Converts SATA power output to 4-pin board connector |

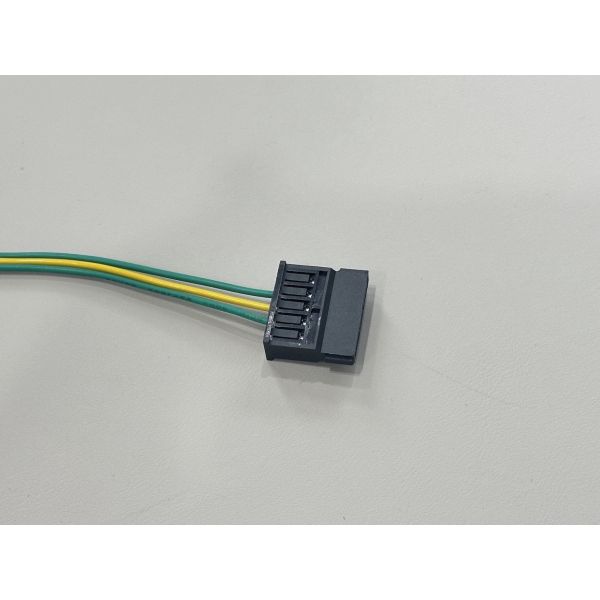

| Connector A | 15-pin SATA power female connector |
| Connector B | 4-pin micro PCB connector (2.0 mm pitch, locking type) |
| Number of positions | 15 contacts (SATA side), 4 contacts (PCB side) |
| Wire gauge | 24 AWG stranded tinned copper (22–26 AWG customizable) |
| Wire insulation | PVC insulated wires, green and yellow color coding |
| Cable length | 200 mm standard, length and routing customizable |
| Rated voltage | 5–12 V DC typical SATA power, max 300 V AC/DC |
| Rated current | Up to 3 A per circuit (depending on wire gauge and ambient temperature) |
| Contact material | Phosphor bronze terminals |
| Contact plating | Tin plated (gold-flash and selective plating available on request) |
| Housing material | High-temperature thermoplastic (PA or PBT), UL94V-0 flame retardant |
| Termination method | Crimp contacts with fully inserted terminals |
| Operating temperature | −20 °C to +105 °C |
| Compliance | RoHS / REACH / halogen-free options |
| Customization options | Connector type, pin assignment, wire color, cable length, packaging, customer logo |
Applications
Power and control connection between PC/server SATA power outputs and small control boards or sensor modules.
Internal wiring for industrial control cabinets, embedded systems, and IoT gateways using SATA-based power rails.
Customized harnesses for LED indicator boards, low-power pumps, fans, or relay boards in automation equipment.
Prototype and OEM cable assemblies where a compact PCB connector is needed on one side and standard SATA power on the other.
Precautions
Confirm the pin assignment and voltage levels at both connectors before use; incorrect wiring can damage the PCB or power supply.
Use within the specified current and temperature ratings; avoid powering high-current loads through circuits intended only for control signals.
Do not plug the SATA connector into a data-only SATA receptacle; it is designed for power interfaces.
Avoid excessive bending, pulling, or twisting of the cable, especially near the connector terminations.
Ensure all connectors are fully seated and latched before powering on the system, and periodically inspect for wear, discoloration, or loose terminals during service.
