Product Description

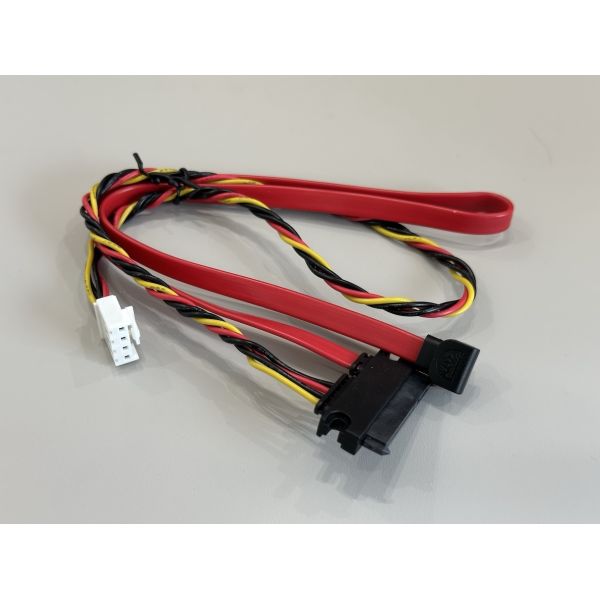

This assembly combines SATA data and power into one practical harness. A right-angle 7-pin SATA plug and a 4-pin power terminal connect to the host side, while a compact 7+15-pin SATA connector mates directly with the HDD or SSD. Shielded flat SATA cable maintains stable high-speed signal transmission, and the twisted power wires reduce crosstalk while keeping the routing flexible and tidy.

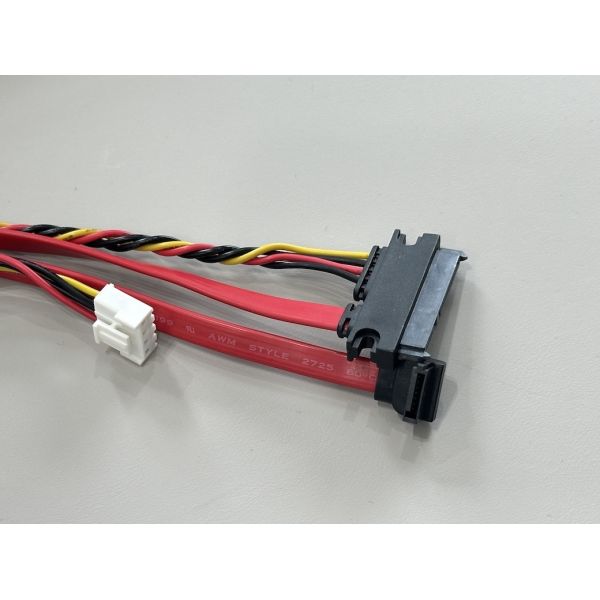

Designed for dense chassis and server racks, the right-angle connector allows the cable to exit along the drive surface, saving space and improving airflow. The harness can be customized with different lengths, gauges, and connector brands to fit proprietary PCB headers and power distribution schemes.
| Product type | SATA data and power connector cable / wire harness |
| Drive-side connector | 7+15-pin SATA combined data & power receptacle |
| Host data connector | Right-angle SATA 7-pin plug |
| Power input connector | 4-pin white housing for PSU or PCB header |
| Interface standard | Serial ATA, compatible with SATA I/II/III, up to 6 Gb/s |
| Number of conductors | 7 data lines + 3 power circuits (5 V / 12 V / GND) |
| Data cable type | Flat SATA ribbon, 26–30 AWG stranded copper |

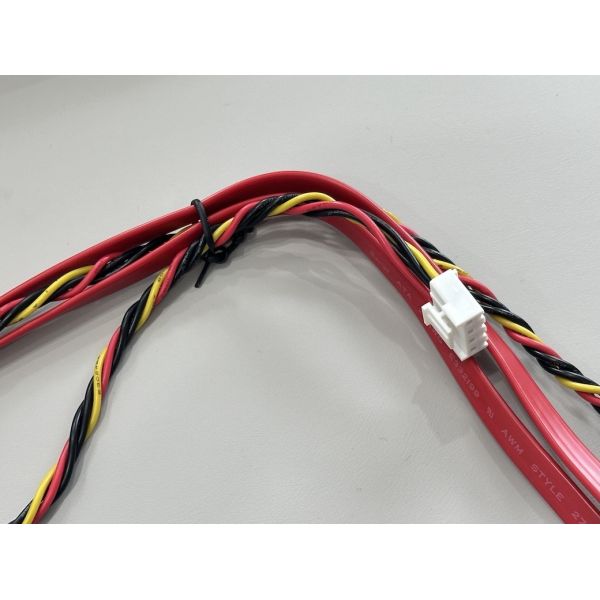

| Power cable type | Twisted red / yellow / black wires, 18–22 AWG stranded copper |
| Standard cable length | 400–600 mm overall; other lengths customizable |
| Rated voltage | 5 V and 12 V DC (max 30 V DC system use) |
| Rated current | 1.5–3 A per power circuit, depending on wire gauge and ambient temperature |
| Housing material | High-temperature thermoplastic, UL94V-0 flame-retardant |
| Contact material | Copper-alloy terminals |
| Contact plating | Tin or selective gold plating on mating area |
| Operating temperature range | −20 °C to +80 °C |
| Insulation resistance | ≥ 1000 MΩ @ 500 V DC |
| Dielectric strength | 1000 V AC for 1 minute |
| Compliance | RoHS / REACH / halogen-free options |
| Customization options | Connector brand, pinout, pitch, cable length, sleeving, labeling, packaging, logo |
Applications
Internal wiring of servers, NAS systems, RAID enclosures, and DVR/NVR recorders using SATA drives.
Desktop or industrial PCs where power is supplied through a 4-pin header instead of a standard SATA power cable.
OEM storage modules and backplanes requiring pre-terminated harnesses for quick installation and consistent quality.
Embedded systems and instruments that integrate 2.5"/3.5" SATA HDDs or SSDs as removable or fixed storage.
Precautions
Confirm the pin assignment of the 4-pin connector and the mating header before installation to avoid reverse polarity or miswiring.
Ensure the total current of the drive does not exceed the rating of the power wires, connector contacts, or PSU rail.
Avoid excessive bending, twisting, or compression of the red SATA ribbon and twisted power bundle, especially near the connector overmolds.
Keep SATA data lines away from strong electromagnetic noise sources such as motor or high-current power cables.
Check that all connectors are fully inserted and latched; periodically inspect the harness for signs of abrasion, cracking, or overheating in long-term high-duty applications.
