Product Description

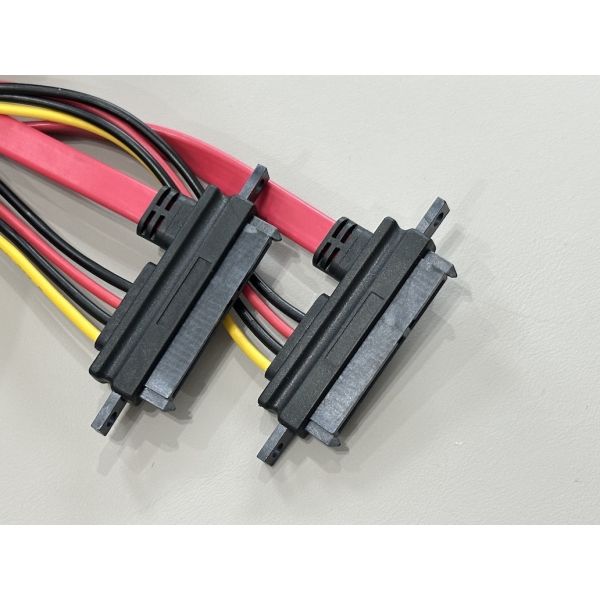

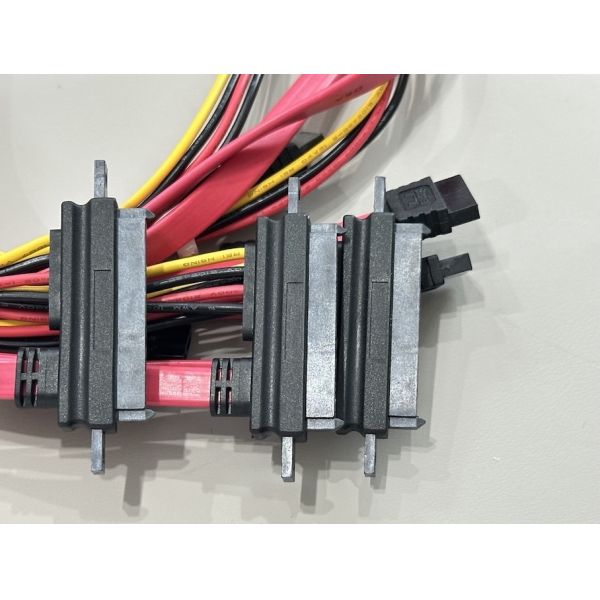

This assembly is a multi-drop SATA connector harness that combines both data and power lines in a single, organized cable set. A single host interface on the PSU or controller side is fanned out to several SATA 7+15-pin connectors, allowing multiple HDDs or SSDs to be powered and linked using one consolidated harness.
Shielded SATA data cables maintain low crosstalk and stable signal integrity at up to 6 Gb/s, while the thicker power wires guarantee reliable 5 V and 12 V delivery to each drive. The compact connectors, pre-crimped terminals, and bundled routing make installation fast and tidy in dense storage bays and narrow server chassis. Custom harness designs are available to match the layout of storage trays, backplanes, and proprietary PCBs.
| Product category | SATA data and power connector cable / multi-branch harness |
| Function | One host input to multiple SATA 7+15-pin drive connectors |

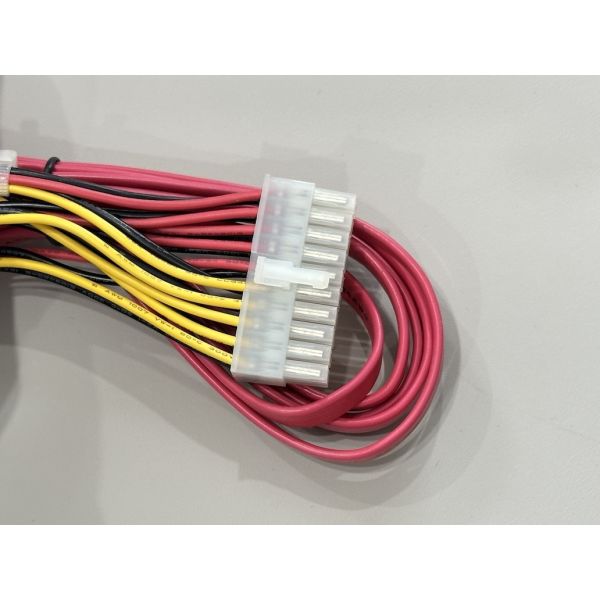

| Host side connector | 4-pin/6-pin power plug plus main SATA data connector (customizable) |
| Drive side connectors | Multiple SATA 7+15-pin combined data & power female connectors |
| Number of SATA drops | 4–8 branches as required (custom quantity available) |
| SATA version | SATA I/II/III, up to 6 Gb/s |
| Wire type – data | 26–30 AWG shielded ribbon cable, low skew differential pairs |
| Wire type – power | 18–22 AWG stranded copper, red/yellow/black insulated wires |
| Standard harness length | 500–800 mm overall, individual branch length customizable |
| Rated voltage | 5 V and 12 V DC for HDD/SSD power |
| Rated current | Typically 1.5–3 A per drive (depending on wire gauge and design) |
| Housing material | High-temperature thermoplastic, UL94V-0 |
| Contact material | Copper alloy terminals |
| Plating | Tin or selective gold on mating area |
| Operating temperature range | −20 °C to +80 °C |
| Flame rating / compliance | RoHS / REACH / halogen-free options |
| Custom options | Branch quantity, cable length, connector type, labeling, bundling, packaging |
Applications
Mass-storage servers, NAS enclosures, and JBOD chassis requiring multiple SATA drives on one harness.
Industrial PCs and DVR/NVR systems where several HDDs or SSDs share a common controller or backplane.
OEM storage modules and RAID systems that need pre-terminated data and power cabling for quick assembly.
Upgrade kits for tower or rack systems, helping organize wiring and reduce clutter in the drive area.
Precautions
Confirm that the total current of all attached drives is within the PSU rail and harness rating.
Check SATA connector orientation and keying to avoid damage to drive or host ports during insertion.
Do not sharply bend or pinch the red SATA ribbon cables; excessive stress may degrade signal performance.
Keep data cables separated from high-noise power lines or fans whenever possible to minimize interference.
Periodically inspect connectors and wires in high-vibration or high-temperature environments, and replace any harness showing insulation cracks or discolored terminals.
