Product Description

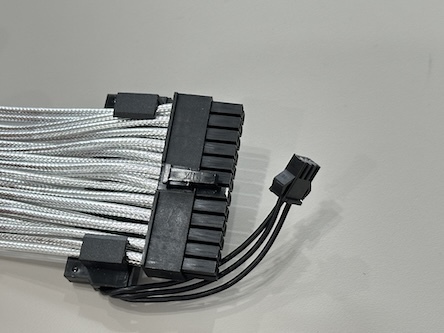

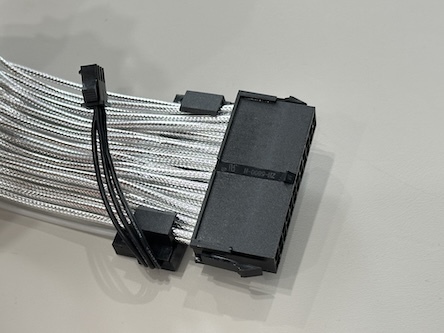

This ARGB 24Pin ATX power connector extension cable combines reliable electrical performance with an eye-catching visual effect for high-end systems. The assembly routes multiple power wires through oxygen-free copper conductors and precision-formed power terminals, ensuring efficient current delivery from modular PSUs to the motherboard or server PCB.
On top of the basic power transmission function, a dedicated light guide bar and addressable RGB strip create smooth lighting across every pin row, delivering uniform illumination for tempered-glass gaming cases and showcase systems. The white braided sleeve keeps each wire cable neatly separated while enhancing the overall look of the build.
A standard 3-pin 5V ARGB or optional 4-pin connector allows direct synchronization with motherboard lighting software or external controllers, supporting multiple modes such as breathing, rainbow, static color, and music-reactive effects. Customization for cable length, connector type, pin layout, and sleeve color is available to fit different ATX / E-ATX / server platforms and OEM projects.
| Product Type | ATX power cable connector with ARGB lighting |
| Connector A | 24Pin ATX male power connector |
| Connector B | 24Pin ATX female power connector |
| Extra Connector | 3Pin 5V ARGB or 4Pin header (for lighting control) |
| Pin Pitch | 4.20 mm power terminal pitch |
| Pin Count | 24 pins |
| Wire Type | 16AWG / 18AWG stranded tinned copper wire |
| Conductor | Oxygen-free copper, low resistance for stable power transmission |
| Insulation | UL-rated PVC or XLPE electronic wire insulation |
| Outer Sleeve | High-density white braided sleeve with transparent light guide bar |
| Rated Voltage | 300 V AC/DC |
| Rated Current | Up to 8–10 A per circuit (depending on wire gauge) |
| Contact Material | Copper alloy terminals with tin or selective gold plating |
| Dielectric Strength | ≥1500 VAC / 60 s |
| Insulation Resistance | ≥1000 MΩ |
| Operating Temperature | -20 °C to +105 °C |
| Flammability Class | Materials compatible with UL94V-0 |
| Cable Length | Standard 30–40 cm, customizable on request |
| Color | White sleeved cable, addressable RGB lighting effects |
| Compliance | RoHS / REACH compliant |
| Application | Gaming PC, modded case builds, workstation, server / PCB power connector customization |
Applications
Custom gaming PC and e-sports rigs requiring illuminated ATX power connector cables
High-end workstation and creator systems with side-window chassis
Showcase demo platforms, retail display PCs and exhibition builds
Server or industrial systems where clear cable routing and status indication via lighting are desired
Customized electronic systems and PCB power boards using 24Pin style power connectors with visual identification
Precautions
Verify that the 24Pin ATX pin-out of the PSU and motherboard is compatible before installation; incorrect mapping of male / female connectors can damage electronic components.
Connect the ARGB plug to a 5V addressable header only; do not connect to a 12V RGB port. Check polarity before powering on.
Avoid twisting or sharply bending the cable close to the connector housings and light guide, to prevent damage to internal wires and LED strip.
Keep the assembly away from sharp edges, heat sinks and fan blades, and secure it with clips or cable combs to reduce stress on the terminals.
For projects involving mixed signal and power wiring, different pitches, or integration with other automotive / server / PCB harnesses, OEM/ODM customization can be provided.
