Product Description

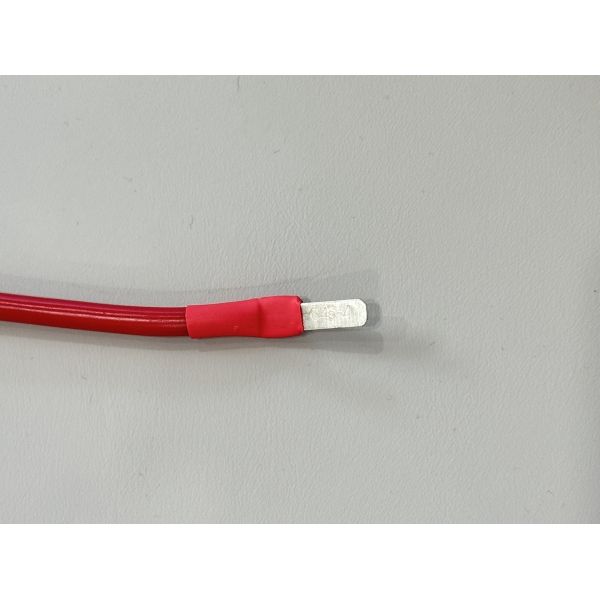

This power cable uses a ring terminal on one end and a flat blade tab connector on the other end to create a reliable, low-resistance electrical path for DC power distribution. The tinned copper conductor and tin-plated terminals provide stable performance under continuous current, while the red insulated wire clearly indicates positive power in automotive and industrial systems.
The cable harness is designed for flexible routing and easy installation in compact spaces. It can be customized by connector size, wire gauge, cable length, labeling and insulation material to match different PCB layouts, battery modules, power supplies and electronic controller designs.
| Connector type | Ring terminal to flat blade tab connector |
| Function | Power and ground cable for DC electrical circuits |
| Conductor material | Tinned oxygen-free copper wire |
| Wire gauge options | 10–18 AWG customizable |
| Rated voltage | Up to 600 V DC (depending on cable size) |
| Rated current | Up to 40 A continuous (larger gauges available on request) |
| Insulation material | PVC or XLPE electrical insulation, halogen-free optional |
| Outer jacket color | Red (other colors available for polarity and signal identification) |
| Cable length | Standard 200–800 mm, customized length on request |
| Terminal plating | Tin-plated copper terminals for low contact resistance |
| Operating temperature | -20°C to +105°C typical |
| Application fields | Automotive, energy storage, inverter, PSU, industrial control, server cabinet power |
| Customization | Cable length, wire gauge, connector size, labeling and marking can be customized |
Applications
Connecting battery packs to DC busbars, inverters and power distribution boards
Grounding and bonding between chassis, enclosure and PCB power terminals
Power wiring inside automotive, motorcycle or off-road vehicle electrical systems
Internal wiring for UPS units, industrial power supplies and server cabinets
Low-voltage DC power connection in renewable energy and storage systems
Precautions
Confirm current, voltage and temperature requirements before selecting wire gauge and connector size.
Ensure ring terminal and flat blade tab are matched to the correct stud size and mating connector to avoid loose contacts.
Tighten all screw or nut fasteners to the specified torque and check periodically in high-vibration environments.
Avoid routing the cable across sharp edges or hot surfaces; use protective sleeves or clamps where necessary.
Disconnect power before installation or maintenance and verify polarity (positive/negative) to prevent damage to electronic equipment.
