Product Description

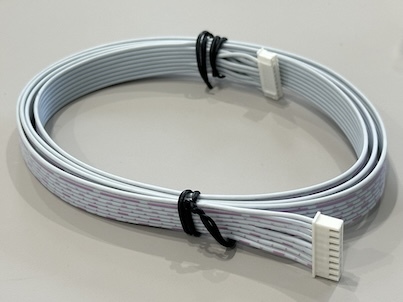

This flat ribbon cable connector assembly is designed for compact and reliable signal transmission between PCBs, control panels and electronic modules. Multi-core copper wires are arranged in a parallel ribbon structure to keep impedance stable and minimize crosstalk between pins, making it suitable for low-current power and digital or analog signals.

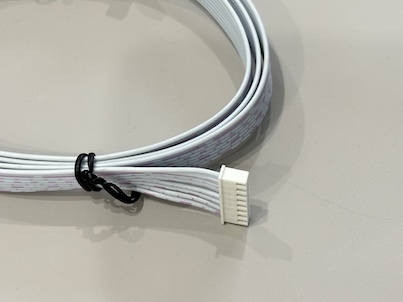

Both ends are terminated with female terminals in precision-molded housings, allowing easy mating with board headers or other cable assemblies. The 2.54 mm pitch is compatible with a wide range of standard PCB headers used in industrial control, instrumentation, and server hardware. Uniform cable bending and low profile help optimize routing in narrow spaces such as 1U chassis or embedded systems.
Pin count, cable length, wire gauge, and connector layout can all be tailored for OEM customization, including special keying, locking features or mixed signal / power connector designs for automation, medical devices and light automotive electronics.
| Product Type | Flat ribbon cable connector / wire harness |
| Connector Type | Dual-row female housings at both ends |
| Pin Count | Standard 10 pin (6–20 pins customizable) |
| Pitch | 2.54 mm (other pitches on request) |
| Cable Style | UL ribbon cable, parallel multi-core |
| Wire Gauge | 26–28AWG stranded or solid tinned copper |
| Conductor | Oxygen-free copper, low-resistance signal paths |
| Insulation | PVC electrical insulation, grey with polarity mark |
| Rated Voltage | 150–300 V AC/DC (depending on gauge) |
| Rated Current | 1.0 A per pin (max., signal grade) |
| Contact Material | Phosphor bronze terminals, tin or gold plated |
| Housing Material | UL94V-0 rated PA / PBT |
| Cable Length | Typical 1.0 m, length customization available |
| Operating Temperature | -20 °C to +80 °C |
| Termination Method | IDC / crimp terminals into plastic housing |
| Compliance | RoHS / REACH compliant |
| Application | PCB-to-PCB connection, control panel wiring, electronic module interconnect, server and automation equipment |
Applications
PCB-to-PCB and PCB-to-control panel wiring in industrial controllers and instruments
Internal electronic connections in servers, storage arrays and communication equipment
Flat cable harnesses for printers, scanners, displays and HMI modules
Low-voltage electrical interfaces in testing fixtures and laboratory equipment
Custom assemblies where neat, repeatable routing of multi-pin wire cable is required
Precautions
Ensure the female housing matches the header pitch and orientation on the PCB before installation.
This product is optimized for low-current signal and light power loads; avoid using it for high-current lines unless specified in the design.
Do not sharply bend or twist the ribbon close to the connectors, as this may stress the terminals and conductors.
Secure the harness with clips or cable ties to prevent vibration from loosening the mating connector.
Custom options such as different colors, shielding for EMI-sensitive circuits, or mixed male/female ends are available for project orders.
