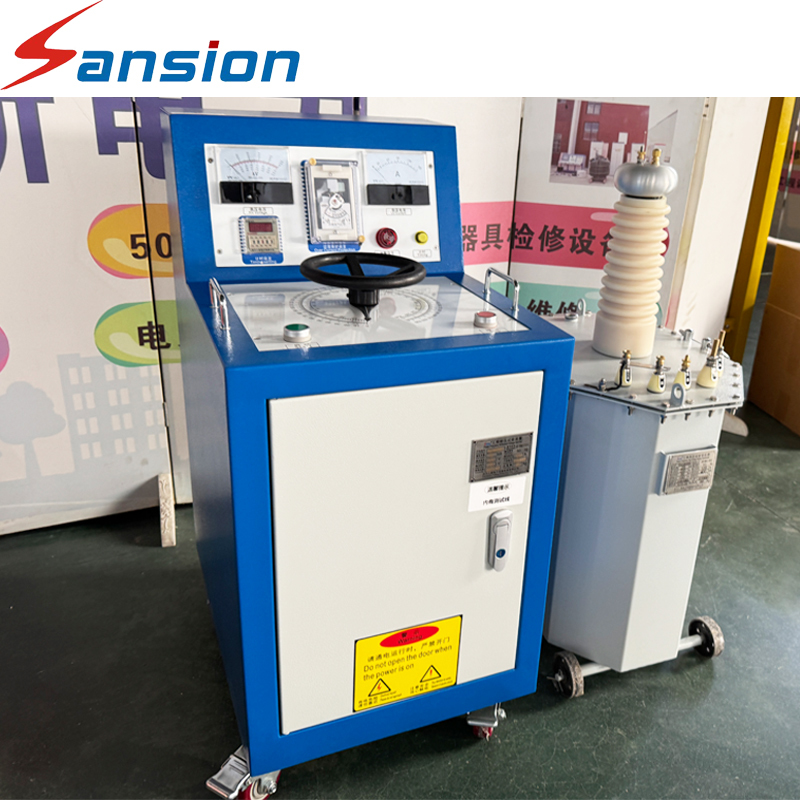

Customized Power Frequency Withstand Voltage Test System Complete AC Hipot Testing Solution with High Voltage Transformer, Control Cabinet, Measurement and Safety Protection
Customized Power Frequency Withstand Voltage Test System Complete AC Hipot Testing Solution with High Voltage Transformer, Control Cabinet, Measurement and Safety Protection
Customized Power Frequency Withstand Voltage Test System Complete AC Hipot Testing Solution with High Voltage Transformer, Control Cabinet, Measurement and Safety Protection
Customized Power Frequency Withstand Voltage Test System Complete AC Hipot Testing Solution with High Voltage Transformer, Control Cabinet, Measurement and Safety Protection
Customized Power Frequency Withstand Voltage Test System Complete AC Hipot Testing Solution with High Voltage Transformer, Control Cabinet, Measurement and Safety Protection
Customized Power Frequency Withstand Voltage Test System Complete AC Hipot Testing Solution with High Voltage Transformer, Control Cabinet, Measurement and Safety Protection
Specifications
Model Number :
YDJ
Rated Voltage :
Single‑set 50‑500kV, Cascade 200‑800kV
MOQ :
1
Insulation Type :
SF6 / Transformer Oil / Epoxy Resin
Brand Name :
Sansion Power
Oil Cylinder Position :
Under
Delivery Time :
30 Working Days
Voltage accuracy :
±1%
Payment Terms :
L/C,T/T
Output Power :
2‑500kVA
Packaging Details :
Plywood Case
Power Supply Voltage :
220/380V
Certification :
CE/SGS/EMS/ISO 9001
Dimensions :
300mm x 200mm x 150mm
Place of Origin :
China
HV Voltage :
50kV
Description
Product Description

The Customized Power Frequency Withstand Voltage Test System is designed according to the customer's specific test object and technical requirements.

Because transformers, cables, motors, GIS, generators and switchgear have different voltage levels, capacitance and testing requirements, a standardized test system may not always provide the best solution.

A customized high-voltage test system can integrate the required high-voltage source, control system, voltage measurement, current monitoring, data acquisition and safety protection into one complete solution.

Customizable Configuration

The system can be customized according to:

  • Rated test voltage
  • Test capacity
  • Rated current
  • Power supply
  • Test frequency
  • Test object type
  • Manual or automatic control
  • PLC or computer control
  • Data acquisition
  • Test report generation
  • Communication interface
  • Laboratory installation
  • Portable or vehicle-mounted configuration
Testing Functions

Depending on configuration:

  • Power frequency withstand voltage test
  • AC hipot test
  • Insulation test
  • Transformer test
  • Cable test
  • Generator test
  • Motor test
  • GIS test
  • Switchgear test
  • Voltage measurement
  • Current measurement
  • Leakage current monitoring
  • Test time control
  • Automatic protection
  • Data recording
FAQ

Q: What information is required for customization?

A: Customers should normally provide the test object type, rated voltage, required test voltage, capacitance or capacity, test standard, required frequency and testing functions.

Q: Can the system be connected to a computer?

A: Yes. Computer control, software operation and data management can be integrated according to the project.

Q: Can multiple test functions be integrated into one system?

A: Yes. For suitable applications, multiple testing functions and measurement channels can be integrated into a customized test platform.
