10 kVA 150 kV High-Voltage AC Testing System with Motorized Control Console and PD-Free Transformer for Power-Frequency Dielectric Withstand Tests
10 kVA 150 kV High-Voltage AC Testing System with Motorized Control Console and PD-Free Transformer for Power-Frequency Dielectric Withstand Tests
10 kVA 150 kV High-Voltage AC Testing System with Motorized Control Console and PD-Free Transformer for Power-Frequency Dielectric Withstand Tests
10 kVA 150 kV High-Voltage AC Testing System with Motorized Control Console and PD-Free Transformer for Power-Frequency Dielectric Withstand Tests
10 kVA 150 kV High-Voltage AC Testing System with Motorized Control Console and PD-Free Transformer for Power-Frequency Dielectric Withstand Tests
10 kVA 150 kV High-Voltage AC Testing System with Motorized Control Console and PD-Free Transformer for Power-Frequency Dielectric Withstand Tests
Specifications
Maximum AC Voltage :
150 kV
Model Number :
YDW
Voltage Control :
Motorized
MOQ :
1
System Capacity :
10 kVA
Brand Name :
Sansion Power
Delivery Time :
30 Working Days
Voltage Measurement :
Voltage Divider
Payment Terms :
L/C,T/T
Packaging Details :
Plywood Case
Operating Principle :
Power Frequency AC
Certification :
CE/SGS/EMS/ISO 9001
Test Transformer :
PD-Free Type
Place of Origin :
China
Description

Product Description

Product Name: 10kVA/150kV Power Frequency PD-Free AC Withstand Test System

Building a dedicated high-voltage test station requires more than a high-voltage transformer alone. The control, power supply and measurement sections must work together to provide a practical and manageable testing setup. This 10kVA/150kV Power Frequency PD-Free AC Withstand Test System is configured as an integrated platform for professional AC withstand testing.

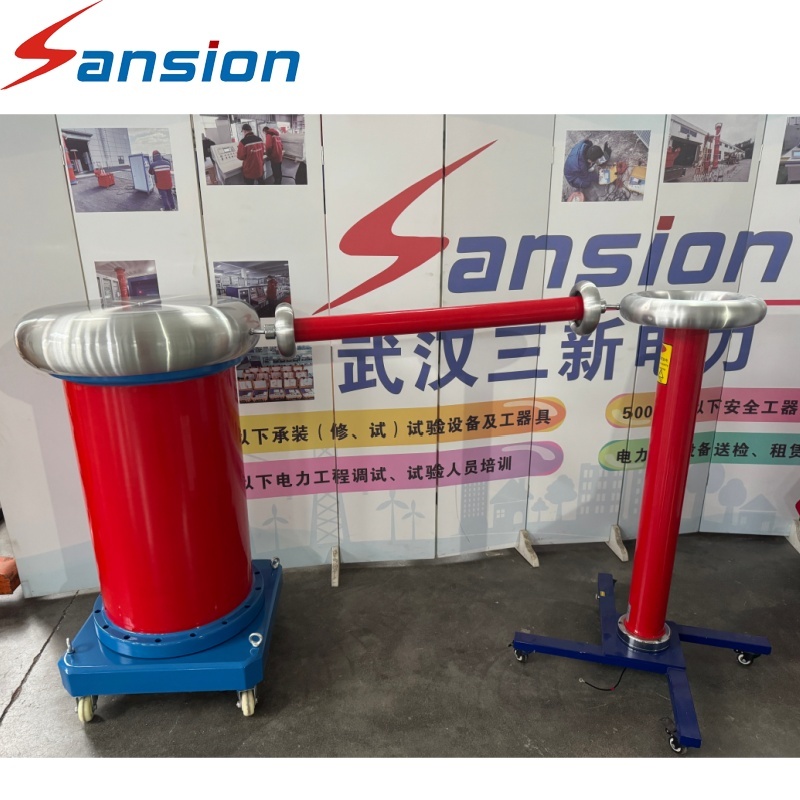

The system brings together four functional sections: Power Supply, Motorized Operation Console, PD-Free Test Transformer and Voltage Divider. The power supply provides the required input, the operation console manages the test process, and the PD-free transformer generates the high AC voltage. The voltage divider is used for voltage measurement, creating a coordinated setup for high-voltage insulation testing.

Product Parameters

Parameter Specification
System Capacity 10 kVA
Maximum AC Voltage 150 kV
Operating Principle Power Frequency AC
Test Transformer PD-Free Type
Voltage Control Motorized
Voltage Measurement Voltage Divider
System Type AC Withstand Testing Platform

Product Advantages

  • Four-Part Integrated Configuration: Brings power, control, high-voltage generation and measurement into one testing platform.
  • Motorized Operation: Makes voltage adjustment more convenient during test preparation and execution.
  • PD-Free High-Voltage Generation: The dedicated transformer is designed for low-background-discharge testing.
  • Defined Testing Capacity: 10kVA/150kV configuration can be selected according to the required test object and procedure.

Application Scenarios

  • High-voltage test stations
  • Electrical equipment inspection centers
  • Transformer testing facilities
  • R&D and engineering laboratories
  • Professional electrical testing services

FAQ

Q1: What components make up the system?

A: The configuration includes a power supply, motorized operation console, PD-free test transformer and voltage divider.

Q2: Is this a standalone partial discharge measurement system?

A: No. Its primary purpose is power-frequency AC withstand testing. The PD-free configuration is used to reduce discharge generated by the test source.

Q3: What is the maximum test voltage?

A: The rated AC test voltage is 150kV.

Q4: Why use a motorized operation console?

A: It provides more convenient and controlled voltage adjustment during high-voltage testing.
