5kVA/50kV Partial Discharge AC Test System

The 5kVA/50kV Partial Discharge AC Test System is a compact high-voltage testing platform developed for laboratories, research centers, and quality inspection departments. It provides a controlled AC test environment for evaluating insulation performance of electrical components and equipment.

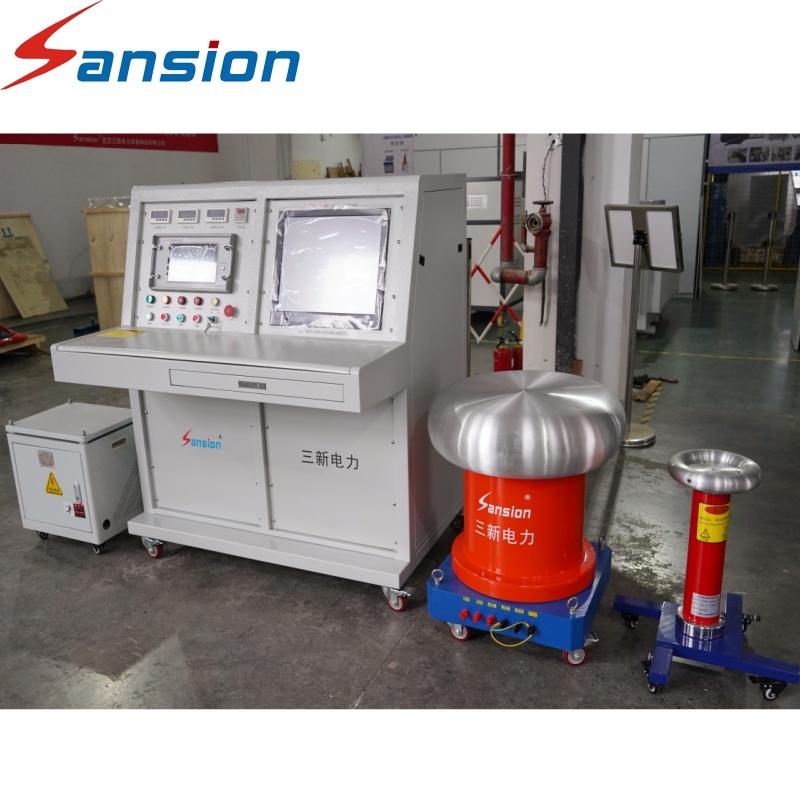

Unlike standard high-voltage test setups, this system integrates dedicated components to support applications where background discharge control is important. The configuration includes a Motorized Operation Console, Power Supply, PD-Free Test Transformer, and Capacitive Voltage Divider, creating a complete testing circuit from voltage generation to measurement.

The system offers a practical solution for organizations requiring reliable AC testing performance in a controlled laboratory environment.

Product Parameters

Product Advantages

• Compact High Voltage Testing Solution — Suitable for laboratories and technical testing environments.
• Controlled Testing Environment — Designed for applications requiring low discharge influence.
• Complete System Integration — Includes major components required for AC high-voltage testing.
• Electric Operation Management — Improves convenience during repeated testing tasks.
• Reliable Voltage Measurement — Supports accurate monitoring of the applied test voltage.
• Engineering Adaptability — Can be configured according to different laboratory requirements.

Application Scenarios

• Electrical testing laboratories
• University research centers
• Transformer R&D departments
• Insulation technology research
• Electrical equipment development
• Product verification centers

FAQ

Q1: What type of users need a PD-free test system?

A: Users performing insulation evaluation, transformer testing, and high-voltage research often require this type of system.

Q2: What voltage level does this model provide?

A: This model provides AC high voltage up to 50kV with a rated capacity of 5kVA.

Q3: Does the system include voltage measurement?

A: Yes. A capacitive voltage divider is included for high-voltage measurement.

Q4: Can Sansion Power supply complete testing systems?

A: Yes. Sansion Power provides customized high-voltage testing solutions according to customer requirements.
