5KVA 50KV Power Frequency Withstand Test System for Transformer Switchgear Cable Electrical Equipment AC Insulation Testing
5KVA 50KV Power Frequency Withstand Test System for Transformer Switchgear Cable Electrical Equipment AC Insulation Testing
5KVA 50KV Power Frequency Withstand Test System for Transformer Switchgear Cable Electrical Equipment AC Insulation Testing
5KVA 50KV Power Frequency Withstand Test System for Transformer Switchgear Cable Electrical Equipment AC Insulation Testing
5KVA 50KV Power Frequency Withstand Test System for Transformer Switchgear Cable Electrical Equipment AC Insulation Testing
5KVA 50KV Power Frequency Withstand Test System for Transformer Switchgear Cable Electrical Equipment AC Insulation Testing
Specifications
Model Number :
YDJ
Output voltage :
50KV
MOQ :
1
Voltage options :
50kV, 100kV, 150kV
Brand Name :
Sansion Power
Power capacity :
5KVA
Delivery Time :
30 Working Days
Payment Terms :
L/C,T/T
Test objects :
Transformers, switchgear, cables
Packaging Details :
Plywood Case
Certification :
CE/SGS/EMS/ISO 9001
Test type :
AC insulation
Place of Origin :
China
Capacity range :
1.5kVA to 100kVA
Description
Product Description

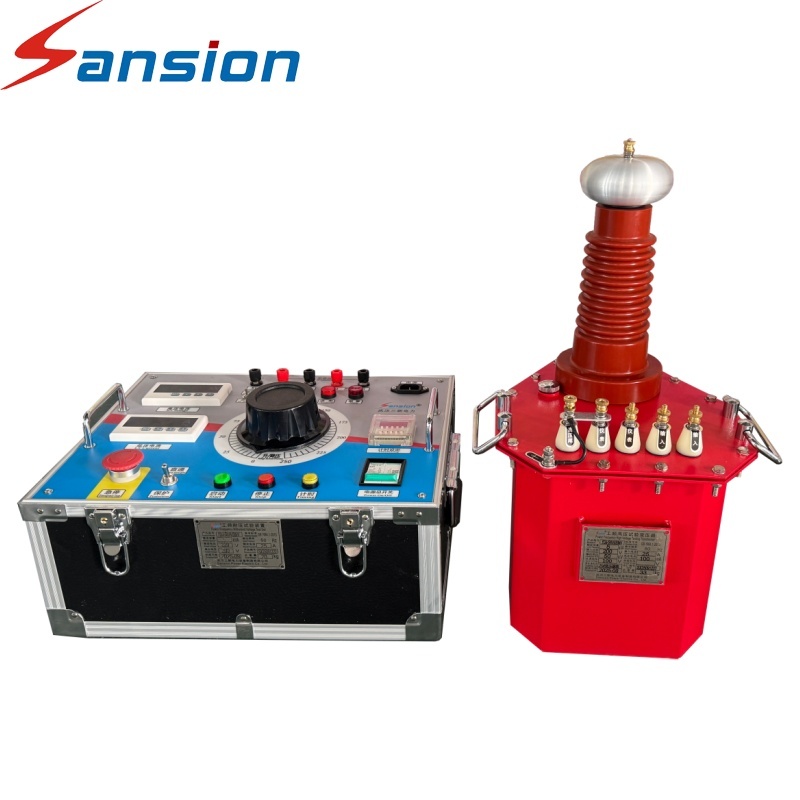

Power Frequency AC Withstand Test System

The Power Frequency AC Withstand Test System is designed for electrical equipment manufacturers to perform insulation strength tests during production and quality inspection. It is widely used for testing transformers, switchgear, cables, electrical components and insulation materials under specified AC high voltage conditions.

The system adopts a complete testing structure with high voltage transformer, control unit, voltage regulation system, measurement and protection functions. With capacity options from 1.5kVA to 100kVA and multiple voltage levels, it can meet different testing requirements in electrical manufacturing factories and laboratories.

Product Advantages
  • Complete AC high voltage withstand testing solution with integrated control and protection functions
  • Available in multiple capacity configurations to match different test objects
  • Stable voltage output for accurate insulation performance evaluation
  • Suitable for factory inspection and routine quality control processes
Application Scenarios
  • Transformer manufacturing factories
  • Switchgear production plants
  • Electrical equipment manufacturers
  • Quality inspection laboratories
FAQ
Q1: What equipment can be tested by this system?
A: It can be used for insulation testing of transformers, switchgear, cables, electrical components and insulation materials.
Q2: What voltage and capacity options are available?
A: The system supports different configurations, including 50kV, 100kV and 150kV AC output with various capacity options.
Q3: Can the system be customized?
A: Yes, voltage level, capacity and configuration can be customized according to customer testing requirements.
Q4: Is this system suitable for factory testing?
A: Yes, it is widely used for production inspection and quality verification in electrical manufacturing factories.
