100kV Power Frequency AC Withstand Test System

The 100kV Power Frequency AC Withstand Test System is developed for testing the dielectric strength of electrical equipment under power frequency AC voltage. It applies a controlled high-voltage output to the test object to evaluate insulation performance and identify potential weaknesses before equipment enters service.

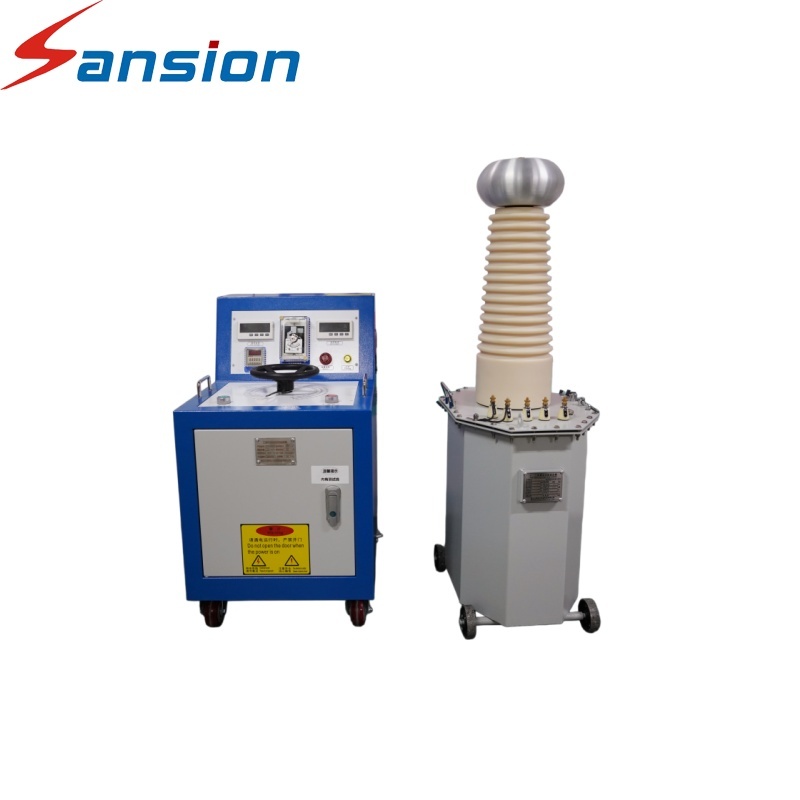

The 10kVA configuration includes a Manual Operation Console and an Oil Immersed Test Transformer. The operator manually regulates the applied voltage through the console, while the test transformer provides the required high-voltage output. The equipment can be used for routine insulation withstand testing of electrical products and power equipment according to their applicable test requirements.

Product Parameters

Product Advantages

• Designed specifically for power frequency AC withstand testing
• 100kV high-voltage output for dielectric strength evaluation
• Manual operation allows direct adjustment of the test voltage
• Oil immersed transformer provides the required high-voltage conversion

Application Scenarios

• Electrical equipment insulation testing
• Switchgear dielectric withstand testing
• Power equipment quality inspection
• High-voltage laboratory testing

FAQ

Q1: What is a power frequency AC withstand test used for?

A: It evaluates the insulation strength of electrical equipment by applying a specified AC high voltage at power frequency.

Q2: What are the main components of this system?

A: The standard configuration consists of a Manual Operation Console and an Oil Immersed Test Transformer.

Q3: What is the rated capacity?

A: The rated capacity of this configuration is 10kVA.

Q4: Can the test voltage be customized?

A: Yes. Sansion Power can provide different voltage and capacity configurations according to the test requirements.
