20kV 10kVA Power Frequency AC Hipot Testing System with Electric Control Panel and Oil Filled High Voltage Transformer for Laboratory Dielectric Strength Verification
20kV 10kVA Power Frequency AC Hipot Testing System with Electric Control Panel and Oil Filled High Voltage Transformer for Laboratory Dielectric Strength Verification
20kV 10kVA Power Frequency AC Hipot Testing System with Electric Control Panel and Oil Filled High Voltage Transformer for Laboratory Dielectric Strength Verification
20kV 10kVA Power Frequency AC Hipot Testing System with Electric Control Panel and Oil Filled High Voltage Transformer for Laboratory Dielectric Strength Verification
20kV 10kVA Power Frequency AC Hipot Testing System with Electric Control Panel and Oil Filled High Voltage Transformer for Laboratory Dielectric Strength Verification
20kV 10kVA Power Frequency AC Hipot Testing System with Electric Control Panel and Oil Filled High Voltage Transformer for Laboratory Dielectric Strength Verification
Specifications
Model Number :
YDJ
Test Voltage :
20kV AC
MOQ :
1
Maximum Current :
500mA
Brand Name :
Sansion Power
Rated Capacity :
10kVA
Delivery Time :
30 Working Days
Certification :
CE/SGS/EMS/ISO 9001
Supply Voltage :
220V / 380V
Payment Terms :
L/C,T/T
Insulation Medium :
Transformer Oil
Packaging Details :
Plywood Case
Place of Origin :
China
Working Frequency :
50Hz / 60Hz
Description
Product Description

The 20kV Power Frequency AC Hipot Testing System is designed for professional laboratories and inspection centers requiring accurate insulation withstand evaluation. It provides controlled AC voltage output to examine insulation characteristics of electrical devices, components and materials.

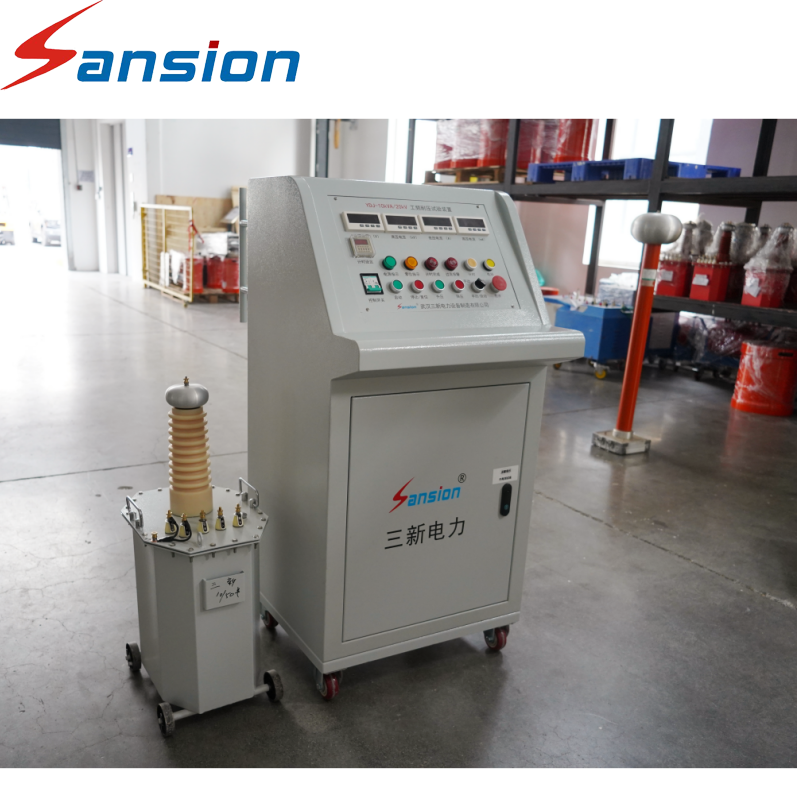

Equipped with an Electric Control Panel and an Oil Filled High Voltage Transformer, the system combines simple operation with dependable testing performance. The control panel integrates voltage regulation, monitoring and protection functions, while the oil filled transformer ensures consistent high voltage generation during laboratory tests.

Product Parameters
Model Rated Capacity Test Voltage Console Type Transformer Design
YDJ(Z)-10/20 10kVA 20kV AC Electric Control Panel Oil Filled
Parameter Specification
Supply Voltage 220V / 380V
Working Frequency 50Hz / 60Hz
Maximum Current 500mA
Control Function Voltage Adjustment & Protection
Insulation Medium Transformer Oil
Product Advantages
  • Suitable for precise insulation verification
  • Integrated control and measurement functions
  • Oil filled structure improves heat dissipation
  • Designed for repeated laboratory operation
Application Scenarios
  • Electrical testing laboratories
  • Research institutes
  • Certification organizations
  • Product development centers
FAQ

Q1: What does AC hipot testing verify?

A: It verifies whether electrical insulation can withstand specified AC voltage.

Q2: Does the system include measurement functions?

A: Yes, the control panel integrates operation, monitoring and protection functions.

Q3: Why use an oil filled transformer?

A: Oil insulation provides good cooling performance and stable operation.

Q4: Is OEM configuration supported?

A: Yes, customized control methods and output ratings can be provided.
